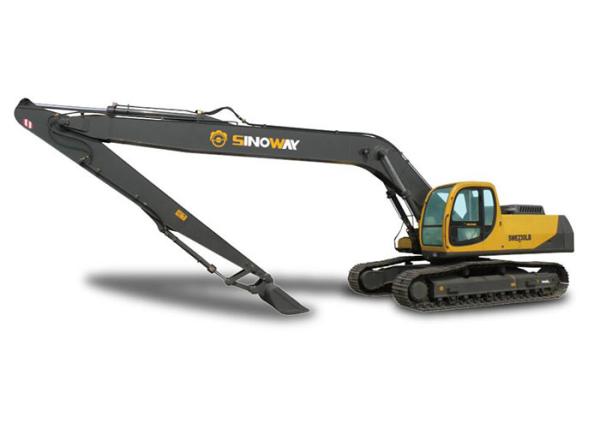

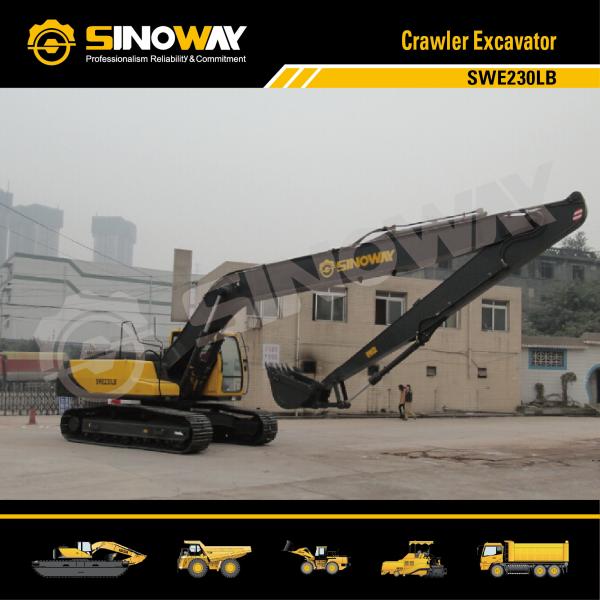

Ground Moving Equipment 24 Ton Long Reach Boom Track Excavator For Dredging
Ground Moving Equipment 24 Ton Long Reach Boom Track Excavator For Dredging
Specifications
Brand Name :
SINOWAY
Model Number :
SWE230LB
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Engine power :
180hp
Bucket capacity :
0.5m3
Operating weight :
24100kg
Boom length :
15.1m
Hydraulic system :
Kawasaki
Condition :
Brand new
Description

Ground Moving Equipment 24 Ton Long Reach Boom Track Excavator For Dredging

Earthmoving Equipment

From civil engineering and general construction to road building and mining,Sinoway crawler excavator is always a must for your digging application, you’ve been in the right place now if you are looking for hydraulic excavators that you can count on. SWE230LB hydraulic excavator are designed with reinforced structure, high efficiency, high fuel efficiency and low environmental impact and maintenance costs, suitable for medium-sized earthwork.

Main Features

Unmatched performance driven by the Cummins Engine enhances torque output with more power and breakout force at lower engine speeds.

It has a reliable hydraulic system with imported pumps, motor and valves.
Its electronic monitoring and control system comes with a multifunctional LCD display that shows information.
With a stepped-up device, the hydraulic excavator is applicable to mines.
Strengthened X-shaped box structure.

The lifting arm, arm and bucket of reinforced design offer for the complete unit a higher adaptability to severe working conditions, and implements such as breaking hammer and grab bucket can be installed as options.

Excavator's cab high-strength ROPS ensures operator protection meeting ISO 12117-2:2008 safety standard. Falling Object Protection System (FOPS) is optional.

Engine 　
Model Cummins
Type Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power 133KW
Rated speed 2100rpm
Main Technical Specification
Operating weight 24100Kg
Standard bucket capacity 0.5m3
Slewing speed 13rpm
Stick digging force 50KN
Bucket digging force 64KN
Hydraulic System 　
Main pump KAWASAKI
Main valve KAWASAKI
Motor KAWASAKI
Hydraulic flow rate 2×235L/min
Hydraulic pressure 30MPa
Travelling System 　
Travelling speed 3～5km/h
Grade ability 65%
Ground pressure 0.047MPa
Dimensions 　
Overall length 13150mm
Overall width 3000mm
Overall height of boom 3320mm
Overall height of cab 2755mm
Engine cover height 2300mm
Counterweight clearance 1060mm
Ground clearance 465mm
Upperstructure width 2710mm
Rear-end length/Slewing radius 2940mm
Overall track length 4510mm
Track length on ground 3720mm
Track gauge 2400mm
Track width 600mm
Boom slewing angle(L/R) 0
Operating Scope 　
Stick length 5200mm
A: Max. cutting height 12190mm
B: Max. dumping height 9800mm
C: Max. digging depth 11600mm
D: Max. reach 15100mm

Ground Moving Equipment 24 Ton Long Reach Boom Track Excavator For Dredging
