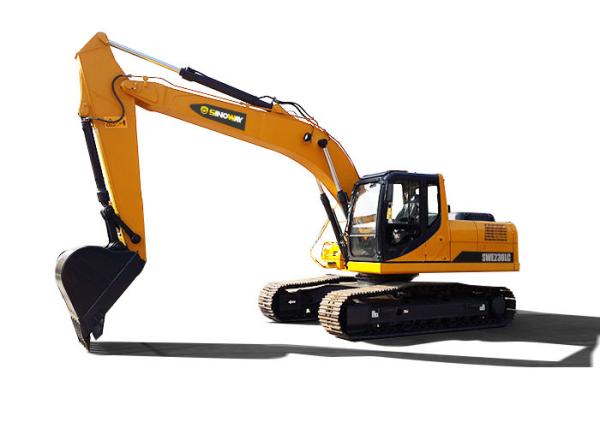

Soil Grading Equipment 1.0m3 bucket Hydraulic Excavator with 150hp Cummins Engine
Soil Grading Equipment 1.0m3 bucket Hydraulic Excavator with 150hp Cummins Engine
Specifications
Brand Name :
SINOWAY
Model Number :
SWE230LC
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Engine power :
150hp
Bucket capacity :
1.0m3
Operating weight :
23000kg
Condition :
Brand new
Warranty :
One year
Color :
Yellow
Description

Earthmoving Equipment

Sinoway hydraulic excavator has been tested, re-designed and then re-specified after market proved, and finally built to withstand numerous applications. Reliable major components like Cummins engine, Kawasaki hydraulics and our cutting edge technology to produce hydraulic excavators are the reasons why Sinoway excavator lasts. Through our crawler excavator category, starting with 0.05 m3 bucket up to 2.0 m3, you will fine one fits your requirement.

Main Features

Unmatched performance driven by the Cummins Engine enhances torque output with more power and breakout force at lower engine speeds.

Options for auxiliary hydraulic piping include bidirectional variable high flow line, an additional line for rotating attachments and also a single acting line. The quick coupler further ensures you get the most out of your machine by easily switching between a wide range of attachments to suit any application.

Hydraulic request signals detect activity, decreasing and increasing engine speed as required. Power is supplied only as needed, achieving optimum fuel efficiency.

The lifting arm, arm and bucket of reinforced design offer for the complete unit a higher adaptability to severe working conditions, and implements such as breaking hammer and grab bucket can be installed as options.

The cab, spacious, bright, pantoscopic and properly sealed, is equipped with 8-way adjustable seat, two-stage filtering heater & A/C system and three-stage silicone oil rubber shock absorber, providing a good damping effect and a favorable driving comfort.

Engine
Model Cummins B5.9
Type Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power 112KW
Rated speed 2100rpm
Main Technical Specification
Operating weight 23000Kg
Standard bucket capacity 1.0m3
Slewing speed 13rpm
Stick digging force 100KN
Bucket digging force 130KN
Travelling System
Travelling speed 3～5km/h
Grade ability 65％
Ground pressure 0.045MPa
Dimensions
Overall length 9845mm
Overall width 3000mm
Overall height of boom 3300mm
Overall height of cab 2755mm
Engine cover height 2300mm
Counterweight clearance 1060mm
Ground clearance 465mm
Upperstructure width 2710mm
Rear-end length/Slewing radius 2940mm
Overall track length 4510mm
Track length on ground 3720mm
Track gauge 2400mm
Track width 600mm
Boom slewing angle(L/R) 0
Operating Scope
Arm length 3000mm
Max. cutting height 9520mm
Max. dumping height 6800mm
Max. digging depth 6830mm
Max. reach 10400mm
