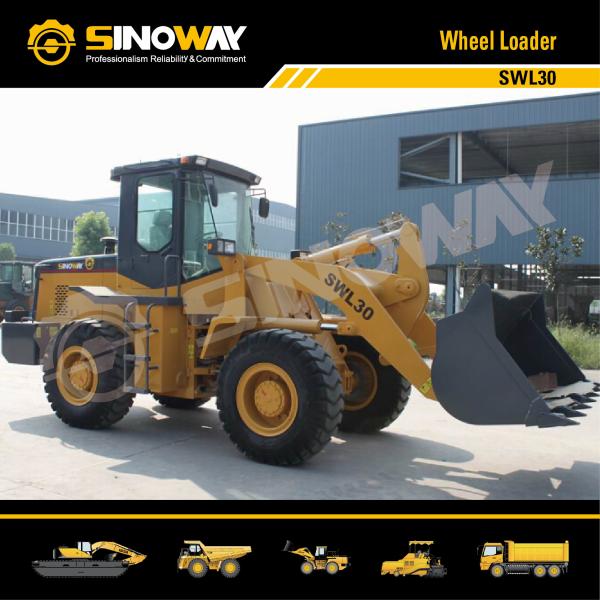

Soil Moving Equipment 1.7m Bucket Wheel Loader Compact Payloader
Soil Moving Equipment 1.7m Bucket Wheel Loader Compact Payloader
Specifications
Brand Name :
SINOWAY
Model Number :
SWL30
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Product name :
Wheel Loader
Engine Make :
Cummins
Engine power :
130hp
Tyre size :
17.5-25
Warranty :
One year
Condition :
Brand new
Description

Soil Moving Machinery

Sinoway offers a complete line of wheel loaders, covering from maneuverable compact wheel loader to productive heavy wheel loader. With world-class components used and more care built in, you will surely feel the robust power with comfort operating by experiencing our new F series models of front end bucket loader.
Sinoway wheel loaders are widely employed in the digging, transporting and loading construction materials like soil, sand and gravel. With various configurations, Sinoway wheel loader is devoted to meet both your applications as well as your budgets. Thanks to our variety of attachments for wheel loader, Sinoway even extend your loading applications to farming, stockpile scooping, snow plowing, logging and timber industry.

Main Features

Equipped with Cummins engine with strong power and high reliability.
Power shift transmission with 2F/1R gears, featuring high transmission efficiency and easy operation.
Torque converter is optimally matched and traction force is increased to a large extent. Fuel consumption is reduced by as much as 5%.
Front and rear frame are optimally designed and the load distribution is reasonable. Steering soft limit is equipped to reduce the shock.
International brand waterproof & dustproof plug connectors and centralized fuse box are used in the electrical system, which ensures reliable performance.
Electrical system is centralize-controlled, which is convenient for testing and maintenance.
Three stage shock absorption system and new shock absorption seat are adopted for better performance in shock absorption, which upgrades the comfort of operation.
Full decorated cab with all-around clear visibility, low noise and A/C provides a comfortable driving space.
Engine 　
Model Cummins 6BT5.9
Type Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power 97KW
Rated speed 2200rpm
Main Technical Specification 　
Rated load 3000Kg
Operating weight 10000Kg
Rated bucket capacity 1.7m3
Max. breakout force 100KN
Max. dump clearance 3060mm
Dump reach 1008mm
Dump angle at any position 45o
Digging depth(with bucket bottom horizontal) 210mm
Min. turning radius(outside of bucket) 5500mm
Oscillating angle of rear axle ±11o
Lifting time of bucket ≤5.6s
Lowering time of bucket ≤3.1s
Dumping time ≤1.1s
Implement Hydraulic System 　
Model of oil pump CBGj2100
System pressure 15.6MPa
Model of multi-way directional valve DF25.2C
Priority valve DJS2-UX
Axle And Tyre 　
Type of main reducer Spiral bevel gear, single stage
Gear ratio of main reducer 5.285
Type of final reducer Single stage planetary
Gear ratio of final reducer 3.88
Total ratio 20.5
Max. tractive force 97KN
Tyre size 17.5-25
Steering System 　
Type Articulated fully hydraulic steering
Model of steering pump CBY2050
Model of redirector BZZ1-500
System pressure 9.8MPa
Articulated steering angle 38±1o(L/R)
Transmission System 　
Torque Converter 　
Model YJH315-3
Type 3 elements, singel stage
Torque ratio 3
Cooling type Pressure oil circulating
Gear box 　
Model YJSW315-3
Type Power shift
Gear shifts(Forward/Reverse) F2/R1
Travelling speed(km/h) 　
Forward/Reverse I 10.8/14.5
ForwardII 32.5
Dimensions 　
Overall length(with bucket on ground) 6970mm
Overall width(to outside of wheels) 2250mm
Overall height(to the top of the cab) 3228mm
Bucket width 2330mm
Wheel base 2750mm
Tread 1850mm
Ground clearance 360mm
Service Capacities 　
Fuel tank 150L
Engine crank case 20L
Converter and gear box 32L
Hydraulic tank 140L
Braking System 　
Service brake Air-pushing-oil disc brake on four wheel
Air pressure 0.65MPa
Parking brake Cable-Controlled caliper disc brake
