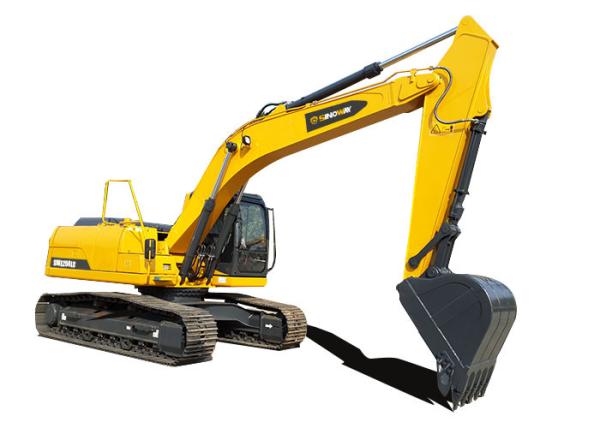

25 Ton Earth Moving Machines Hydraulic Excavator 180hp Cummins Engine
25 Ton Earth Moving Machines Hydraulic Excavator 180hp Cummins Engine
Specifications
Brand Name :
SINOWAY
Model Number :
SWE250LC
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Engine power :
180hp
Bucket capacity :
1.2m3
Operating weight :
25500kg
Ground clearance :
440mm
Track width :
600mm
Track gauge :
2590mm
Description

25 Ton Earth Moving Machines Hydraulic Excavator 180hp Cummins Engine

Earthmoving Equipment

From civil engineering and general construction to road building and mining,Sinoway crawler excavator is always a must for your digging application, you’ve been in the right place now if you are looking for hydraulic excavators that you can count on. SWE250LC hydraulic excavator are designed with reinforced structure, high efficiency, high fuel efficiency and low environmental impact and maintenance costs, suitable for medium-sized earthwork.

Main Features

Unmatched performance driven by the Cummins Engine enhances torque output with more power and breakout force at lower engine speeds.

It has a reliable hydraulic system with imported pumps, motor and valves.
Its electronic monitoring and control system comes with a multifunctional LCD display that shows information.
With a stepped-up device, the hydraulic excavator is applicable to mines.
Strengthened X-shaped box structure.

The lifting arm, arm and bucket of reinforced design offer for the complete unit a higher adaptability to severe working conditions, and implements such as breaking hammer and grab bucket can be installed as options.

Excavator's cab high-strength ROPS ensures operator protection meeting ISO 12117-2:2008 safety standard. Falling Object Protection System (FOPS) is optional.

Engine
Model CUMMINS
Type Six-cylinder,water-cooled, turbocharged,mechanical injection
Rated power 133KW
Rated speed 2000rpm
Main Technical Specification
Operating weight 25500Kg
Standard bucket capacity 1.2m3
Slewing speed 11.5rpm
Stick digging force 111KN
Bucket digging force 150KN
Travelling System
Travelling speed 5.3km/h
Grade ability 70%
Ground pressure 0.045MPa
Dimensions
Overall length 9900mm
Overall width 3180mm
Overall height of boom 3300mm
Overall height of cab 3050mm
Counterweight clearance 1055mm
Ground clearance 440mm
Upperstructure width 2800mm
Overall track length 4635mm
Track length on ground 3840mm
Track gauge 2590mm
Track width 600mm
Boom slewing angle(L/R) 0
Operating Scope
Arm length 2960mm
Max. cutting height 9720mm
Max. dumping height 6840mm
Max. digging depth 7015mm
Max. reach 10400mm

25 Ton Earth Moving Machines Hydraulic Excavator 180hp Cummins Engine
