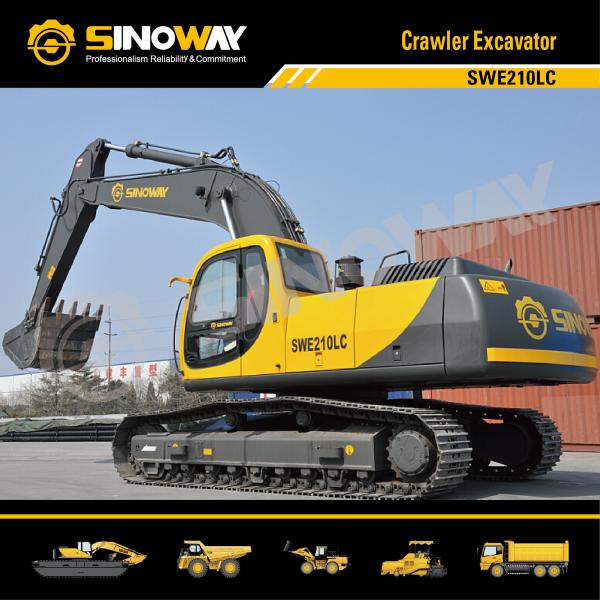

Soil Removal Equipment 21 Ton Hydraulic Excavator 0.9 M3 Bucket
Earthmoving Equipment
From civil engineering and general construction to road building and mining,Sinoway SWE210LC crawler excavator is always a must for your digging application, you’ve been in the right place now if you are looking for hydraulic excavators that you can count on.
Sinoway hydraulic excavator has been tested, re-designed and then re-specified after market proved, and finally built to withstand numerous applications. Reliable major components like Cummins engine, Kawasaki hydraulics and our cutting edge technology to produce hydraulic excavators are the reasons why Sinoway excavator lasts. Through our crawler excavator category, starting with 0.05 m3 bucket up to 2.0 m3, you will fine one fits your requirement.
Main Features
Equipped with original supercharged and inter-cooled Cummins engine proper economic and environmental performance and high reliability; besides, the engine is designed with three-stage filtering including pre-filtering and air filtering, effectively increasing the engine performance and service life.
The hydraulic system is applied with the double-pump constant power negative flow control and has the "auto-sensing operating mode" and the "single-pump/double-pump oil supply control mode&rdquo, featuring high efficiency and enabling excellent control performance of the complete machine.
The X-shape understructure of widened chassis and the reinforced superstructure are applied, enabling higher reliability and high adaptability to various working conditions.
Ergonomically designed cab for SWE210LC excavator, with great visibility, expansive room, new multi-function LCD monitor, automatic air conditioner, large storage space, provide most comfortable working environment.
Engine | |
Model | Cummins B5.9 |
Type | Six-cylinder,water-cooled, turbocharged,mechanical injection |
Rated power | 112KW |
Rated speed | 2100rpm |
Main Technical Specification | |
Operating weight | 21500Kg |
Standard bucket capacity | 0.9m3 |
Slewing speed | 12.5rpm |
Stick digging force | 105KN |
Bucket digging force | 152.5KN |
Travelling System | |
Travelling speed | 0~5.7km/h |
Grade ability | 70% |
Ground pressure | 0.042MPa |
Dimensions | |
Overall length | 9540mm |
Overall width | 2990mm |
Overall height of boom | 3040mm |
Overall height of cab | 3040mm |
Engine cover height | 2300mm |
Counterweight clearance | 1070mm |
Ground clearance | 440mm |
Upperstructure width | 2740mm |
Rear-end length/Slewing radius | 2750mm |
Overall track length | 4160mm |
Track length on ground | 3370mm |
Track gauge | 2390mm |
Track width | 600mm |
Boom slewing angle(L/R) | 0 |
Operating Scope | |
Arm length | 2915mm |
Max. cutting height | 9945mm |
Max. dumping height | 7170mm |
Max. digging depth | 6562mm |
Max. reach | 9870mm |
