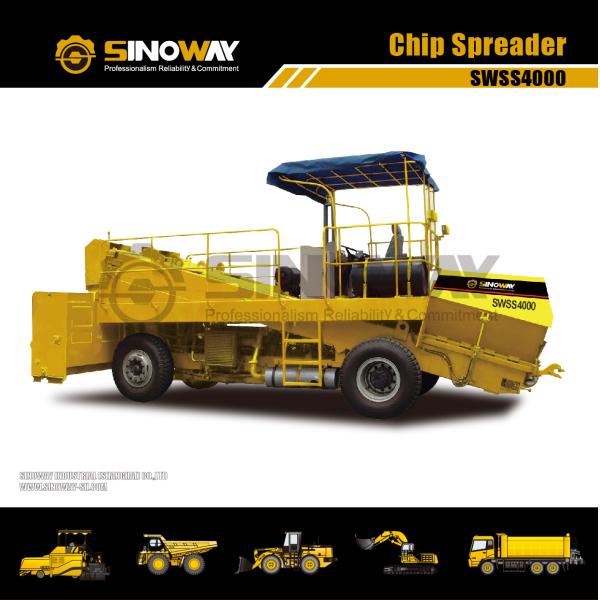

Road Building Construction Equipments 270hp Self-Propelled Stone Chip Spreader
Road Building Construction Equipments 270hp Self-Propelled Stone Chip Spreader
Specifications
Brand Name :
SINOWAY
Model Number :
SWSS4000
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
200 units per year
Delivery Time :
35 days
Packaging Details :
Nude
Max. Spreading width :
4 m
Spreading speed :
2.5~5km/h
Max. spreading capacity :
22 L/m²
Aggregate size :
3-40mm
Front spread hopper volume :
1.5m³
Rear hopper volume :
2.8m³
Description

Road Construction Equipment

Self Propelled Stone chip spreader is used for the even spreading of stone chips onasphalt-covered road under black road surfacing construction in addition to spreading aggregate chips onclay-bound macadam.

Sinoway chipping spreader is used for spreading chippings in the process of constructing road. It is used for spreading chips as underlying seal coat of higher-graded road and surface seal coat of lower-graded road construction, especially for large-scale continuous road construction work.


Main Advantages

The spreading amount is large, can meet the requirement of a variety of aggregate spreading.

Proportional control of the feed roller speed and the spreading speed, uniform spreading of the aggregates.

Combined control of belt feeding & the material level device, having achieved automatic control of material feeding.

The speed of the screw is synchronized with the speed of the feed roller, which is beneficial to the feeding and to the prevention of segregation.

The travelling system adopts the power transmission device of the heavy truck, the cost of maintenance is low.

Self locking traction hook, can realize convenient connection & separation between the spreader and the skip car in the continuous spreading.

High power diesel engine, its sufficient power reserve can adapt to various conditions of spreading and to resistance to heavy load changes.

Using the principle of automobile gas path control, so that braking and clutch operation are light and flexible, safe and reliable.

Two independent braking systems are used to ensure safe and reliable driving.

The mode of using advanced clutch to coordinate with gas assistance, greatly reduces the control force.

Main specification 　
Engine model WP10
Type Six-cylinder water cooled,turbocharged
Rated power 199kw
Rated speed 2200rpm
Spreading width 250-4000mm
Spreading speed 2.5~5km/h
Max.travel speed 23km/h
Max. spreading capacity 22 L/m²
Min. spreading capacity 2 L/m²
Aggregate size 3-40mm
Belt speed 100 r/min
Screw speed 42 r/min
Feed roller speed 42 r/min
Lateral spreading rate ≥95%
Longitudinal spreading rate ≥96%
Front spread hopper volume 1.5m³
Rear hopper volume 2.8m³
Dimension of spread hopper 4240×940×1340mm
Min. turning radius 14000mm
Wheelbase 3850mm
Min.ground clearance 235mm
Max.steering angle (front wheel) 18°
Overall dimension 7660×4240×3660mm
Operating weight 12500kg

Road Building Construction Equipments 270hp Self-Propelled Stone Chip Spreader
