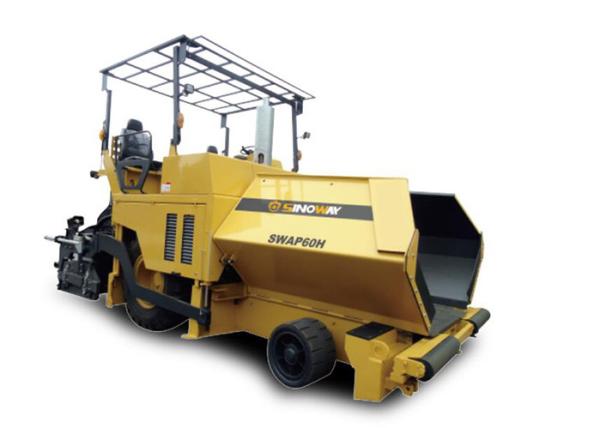

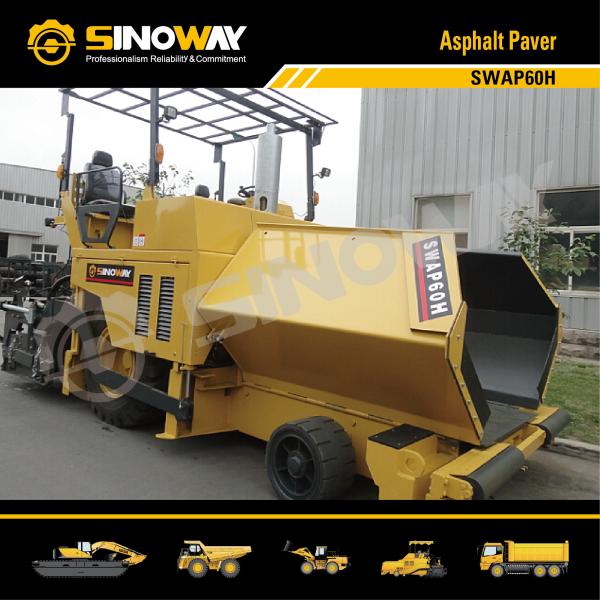

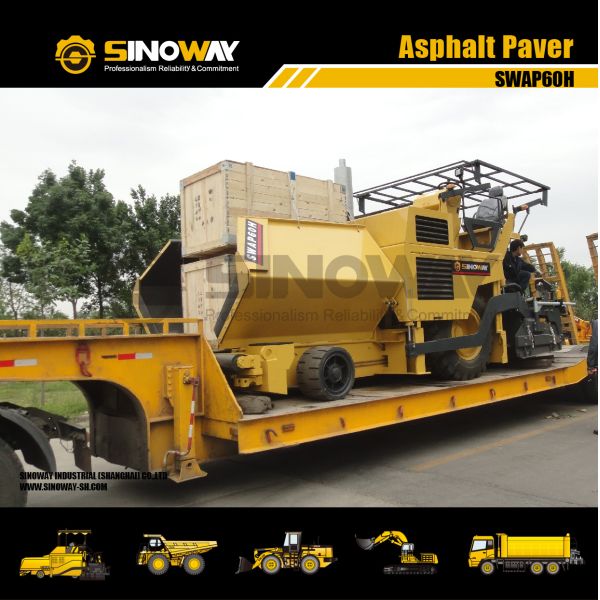

Mobile Road Building Construction Equipments 6m Hydraulic Wheeled Asphalt Road Paver
Mobile Road Building Construction Equipments 6m Hydraulic Wheeled Asphalt Road Paver
Specifications
Brand Name :
SINOWAY
Model Number :
SWAP60H
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
200 units per year
Delivery Time :
35 days
Packaging Details :
Nude
Basic paving width :
2500mm
Max. paving width :
6000mm
Engine make :
Cummins
Engine power :
125hp
Transmission :
Hydrostatic
Heating type :
Diesel oil
Description

Road Construction Equipment
Asphalt paver (aslo called paver finisher, asphalt finisher, paving machine) is a piece of construction equipment used to lay hot asphalt on roads, bridges, parking lots and other such places. It lays the asphalt flat and provides minor compaction before it is compacted by a tandem vibratory roller.

Sinoway asphalt paver collection is best for your paving applications. From 4.5 meters paving width wheeled asphalt paver, to 12.5 meters width full hydraulic crawler asphalt paver, there is right paver for your pavement project.

Main Features

It is equipped with Cummins water-cooled engine, which has strong power and high reliability, and can be competent for poor paving conditions.
The screw feeding system and scraper feeding system are driven independently. The pump and motor imported from the original unit are matched reasonably and can be adapted to the transportation of any stabilized soil and asphalt mixture.
The screw distributor is automatically controlled by the ultrasonic level sensor, and the speed can be steplessly adjusted to meet the needs of different paving conditions.
Full-wheel drive can be selected to provide greater traction to meet the working conditions under heavy load and soft roadbed.
The unique dual brake protection device with patent protection can realize the whole vehicle braking safely and reliably under the condition of the main transmission system braking failure.
The whole machine is simple, generous, beautiful and easy to maintain.
　
Model Cummins
Type Four-cylinder,water-cooled turbocharged,mechanical injection
Rated power 93KW
Rated speed 2200rpm
Main Technical Specification 　
Basic paving width 2500mm
Max. paving width 6000mm
Max. paving thickness 200mm
Min. paving thickness 20mm
Travelling speed 0~15km/h
Paving speed 0~16m/min
Max. theoretic productivity 400t/h
Operating weight 16000Kg
Travelling Equipment 　
Transmission Full hydraulic
Under carriage Wheel type
Working Equipment 　
Screed plate 　
Basic width 2500mm
Crown adjustment -1~3%
Extension model Hydraulic to 4500mm
Heating Diesel
Vibrating 　
Frequency 0~50Hz
Tamper 　
Frequency 0~25Hz
Hopper 　
Capacity 12000Kg
Discharge type Hydraulic
Dimensions 　
Overall length 6290mm
Overall width 2690mm
Overall height 3020mm
Electric System 　
Batteries 2sets
System voltage 24V 24V

Mobile Road Building Construction Equipments 6m Hydraulic Wheeled Asphalt Road PaverMobile Road Building Construction Equipments 6m Hydraulic Wheeled Asphalt Road Paver
