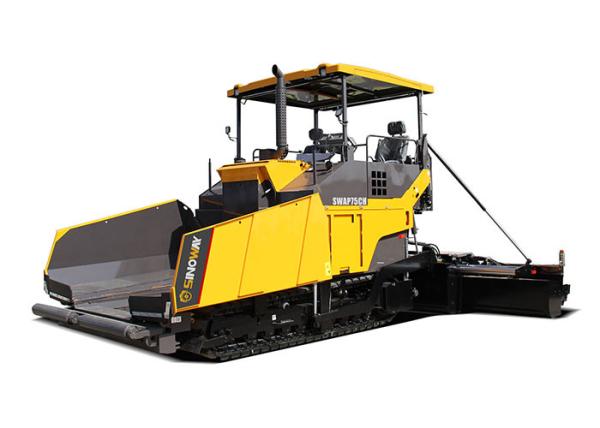

7.5 m Hydraulic Tracked Asphalt Road Paver for Road Construction and Paving
7.5 m Hydraulic Tracked Asphalt Road Paver for Road Construction and Paving
Specifications
Brand Name :
SINOWAY
Model Number :
SWAP75CH
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
200 units per year
Delivery Time :
45 days
Packaging Details :
Nude
Max. paving width :
7500mm
Rated power :
180hp
Extension model :
Mechanical
Discharge type :
Hydraulic
Operating weight :
22 t
Shipment :
By Ro-Ro vessel
Description

Road Construction Equipment
Asphalt paver (aslo called paver finisher, asphalt finisher, paving machine) is a piece of construction equipment used to lay hot asphalt on roads, bridges, parking lots and other such places. It lays the asphalt flat and provides minor compaction before it is compacted by a tandem vibratory roller.

Sinoway asphalt paver collection is best for your paving applications. From 4.5 meters paving width wheeled asphalt paver, to 12.5 meters width full hydraulic crawler asphalt paver, there is right paver for your pavement project.

Main Advantages

Cummins Diesel water-cooled engine has strong horsepower, large power reserve coefficient, low noise, low pollution, good economy and good low temperature starting performance.
The basic components of power system, hydraulic system, control system and transmission mechanism are provided by world-class manufacturers with advanced performance and reliable quality.
Six hydraulic drive systems and three control systems independently drive and control the left and right track walking, feeding and powder mechanism respectively.
Standard single-vibrating double-vibrating pressing plate with adjustable amplitude can achieve the best pre-compaction density for different paving materials.
Humanized design, the operating table can move left and right, the seats on both sides can be adjusted in many directions, suitable for various operating conditions;
Electrical control system can be equipped with original CAN bus control system, GPRS remote communication system and remote locking function.
Engine 　
Model Cummins
Type Six-cylinder,water-cooled turbocharged,mechanical injection
Rated Power 133KW
Rated speed 2200rpm
Main Technical Specification
Basic paving width 2500mm
Max. paving width 7500mm
Max. paving thickness 350mm
Min. paving thickness 20mm
Travelling speed 0.9~2.86Km/h
Paving speed 0~12m/min
Max. theoretic productivity 600t/h
Operating weight 22000Kg
Travelling Equipment 　
Transmission Full hydraulic
Undercarriage Track type
Track length on the ground 3050mm
Track width 300mm
Working Equipment 　
Screed plate 　
Basic width 2500mm
Grade adjustment -1~3%
Extension model Mechanical
Vibrating 　
Frequency 0~50Hz
Hopper 　
Capacity 14000Kg
Discharge type Hydraulic
Dimension 　
Overall length 6470mm
Overall width 2615mm
Overall height 3570mm
Electric System 　
Hydraulic pump SAUER
Vibrating motor SAUER
Control valve Made In Germany

7.5 m Hydraulic Tracked Asphalt Road Paver for Road Construction and Paving
