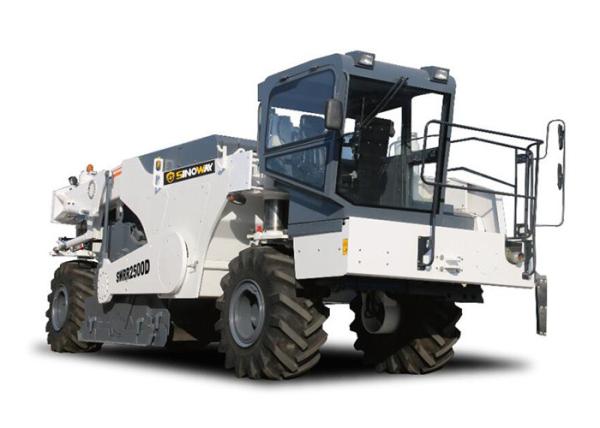

Hydraulic Road Reclaimer Road Recycler For Road Rehabilitation And Soil Stabilization
Hydraulic Road Reclaimer Road Recycler For Road Rehabilitation And Soil Stabilization
Specifications
Brand Name :
SINOWAY
Model Number :
SWRR2500D
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
100 units per year
Delivery Time :
45 days
Packaging Details :
Nude
Max. cutting width :
2500mm
Rated power :
448kw
Rotor drive :
Mechanical
Tooth number :
161
Rotor diameter :
1408mm
Operating speed :
0 - 50m/min
Description

Road Construction Equipment

A road recycler or road reclaimer is an asphalt pavement grinder or a combination grinder and soil stabilizerwhen it is equipped to blending cement, foamed asphalt and/or lime and water with the existing pavement (usually only very thin asphalt) to create a new, recycled road surface.

Sinoway soil stabilizers and road reclaimers are designed to perform in a wide variety of applications with thedependability of all other Sinoway machines. They can mill road and stabilize the ground beneath. Whetherused for road rehabilitation, cold recycling, or soil stabilization, our stabilizer-reclaimers are up to the task.
Main Advantages

Powerful Cummins after-cooled turbocharged diseals engine with high reservation coefficient.

Hydraulic travel drive to all wheels,hydraulic components imported from the famous company.

Unique control desigh is more suitable to the working site,the working devices can operate in close to the road curb.

The rotor is driving by hydraulic dual pumps and dual motors with maximum torque force.

Driver’s cabin can move to both-sides for wider visibility.

Automatic rotor switch-off while the rotor lifts up away the ground,and automatic spray cut-off the recycing agent.

Replaceable“knock-in knock-out”teeth reduce the shutdown time,increasing machine availability.

International brand hydraulic motor and water pump are equipped in the qprinkler system.

Main Technical Specification
Engine model Cummins
Type Mechanical, 6 cylinders, direct injection, turbocharged, water cooled
Max. power 448kw
Rated speed 2100rpm
Electrical system 24V
Starting type Electrical
Max. cutting width 2500mm
Cutting depth 450mm
Rotor drive Mechanical
Rotor speed 0 - 181r/min
Rotor side movement 220mm
Tooth number 161
Rotor diameter 1408mm
Front drive Hydraulic motor + driving axle
Rear drive 2 x hydraulic motor + reducer
Travel speed 0 -15km/h
Operating speed 0 - 50m/min.
Max. Grade-ability 57%
Steering type Front wheel, rear wheel, all wheel and crab steering
Turning radius 19000mm
Service brake Wet brake
Parking brake Oil cut-off brake
Operating weight 33000kg
Agent spray amount 40m³/min.
Ground clearance 540mm
Overall dimensions 9435 x 3265 x 3140mm
Fuel tank 1053L
Hydraulic oil tank 285L

Hydraulic Road Reclaimer Road Recycler For Road Rehabilitation And Soil Stabilization
