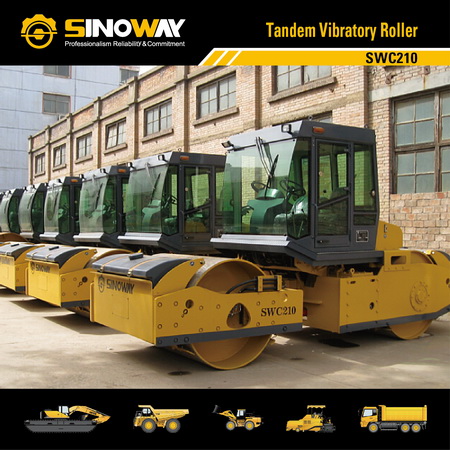

Hydraulic Building Construction Equipments Manual Transmission Double Drum Vibratory Roller
Hydraulic Building Construction Equipments Manual Transmission Double Drum Vibratory Roller
Specifications
Brand Name :
SINOWAY
Model Number :
SWC210
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
3000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Rated power :
80hp
Operating weight :
10 ton
Condition :
Brand new
Warranty :
One Year
Shipment :
By Container
Colour :
Yellow or Customized
Description

Building Construction Equipment

Sinoway tandem road roller range covers from 0.77 ton for asphalt repairing work, to 14 ton tandem road roller with vibration for your extra heavy duty requirement. As our single drum road roller, both mechanical transmission and hydrostatic transmission tandem road roller are available. Our hydraulic tandem road roller is designed with dual amplitude and frequency, which will enable your compaction of difference layers of asphalt with the same high productivity as well as best effectiveness.

Main Advantages

Equipped with powerful Cummins engine, large power reservation, low fuel consumption, good performance of exhaust and good starting feature.

Mechanical travel drive of side transmission, hydraulic vibration and steering with three-gears travel speed for convenient transport between construction sites.

Dual operator seats and dual steering wheels with good sight line of side compaction.

Electric-controlled water spraying on front and rear drum surfaces.

Engine
Model Cummins
Type Four-cylinder,water-cooled,turbocharged,mechanical injection
Rated power 60KW
Rated speed 2200rpm
Transmission System
Type Mechanical drive (Gear box)
Grade ability 30%
Gear shifts(Forward/Reverse) F3/R3
Travelling speed (km/h)
Forward/Reverse I 2.5/2.5
Forward/Reverse II 5.5/5.5
Forward/Reverse III 8.0/8.0
Axle
Drive type Rear wheel drive
Front axle load 4400Kg
Rear axle load 5600Kg
Main Technical Specification
Operating weight 10000Kg
Type Hydraulic single drum vibration
Frequency 50Hz
Amplitude 0.35mm
Static linear load 265/323N/cm
Vertical oscillation 8º
Drum shell thickness 20mm
Centrifugal force 110kN x 2
Steering System
Type Hydraulic articulated steering
Steering cylinder Two cylinders
Steering pump Gear pump
Braking System
Service brake Band brake
Parking brake Ratchet brake
Dimensions
Overall length 5390mm
Overall width 2060mm
Overall height 2980mm
Drum width 1700mm
Wheelbase 3680mm
Drum dia. 1260mm
Ground clearance 310mm
Service Capacities
Fuel tank 80L
Sprinkler tank 280 / 280L
Optional
Air conditioner
