Compact Road Construction Equipment 3.5 ton Small Hydraulic Tandem Vibratory Rollers
Compact Road Construction Equipment 3.5 ton Small Hydraulic Tandem Vibratory Rollers
Specifications
Brand Name :
SINOWAY
Model Number :
SWC203
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
3000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Operating weight :
3 ton
Static linear load :
276N/cm
Vertical oscillation :
8º
Steering :
Hydraulic articulated
Drum width :
1200mm
Warranty :
One year
Description

Building Construction Equipment

Sinoway tandem road roller range covers from 0.77 ton for asphalt repairing work, to 14 ton tandem road roller with vibration for your extra heavy duty requirement. As our single drum road roller, both mechanical transmission and hydrostatic transmission tandem road roller are available. Our hydraulic tandem road roller is designed with dual amplitude and frequency, which will enable your compaction of difference layers of asphalt with the same high productivity as well as best effectiveness.

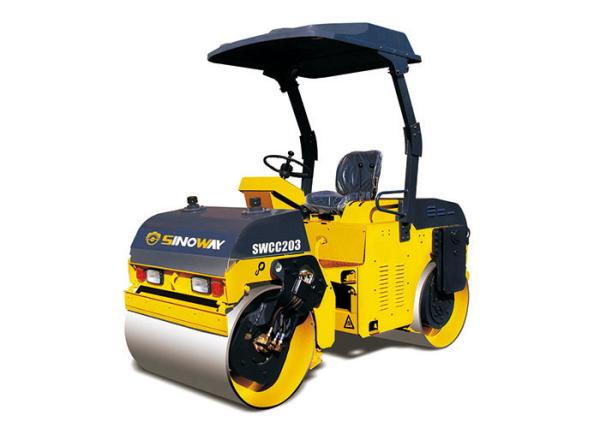

SWC203 double drum vibratory roller is small-size tandem vibratory roller, applied to mending and maintaining various roads, expressway shoulder, side walk, parking area, sports ground and garden lawn, which is especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.

Main Features

The rear-drum travelled by side gear transmission and hydraulic vibration in front drum.

Articulated frame with power steering, fork-type drum brackets with more than 600mm drum-side clearance.

The gear-box uses Japanese technology with easy gearshift, three travel speeds posses good compaction and fast transportation.

Platform trailer as option.

Engine model ZN390Q
Rated power 22kw
Operating weight 3500kg
Static linear load 90N/cm
Vibrating frequency 45Hz
Centrifugal force 53kN
Max. travelling speed 1.95 / 7.15km/h
Gradeability 28%
Turning radius 4600mm
Overall dimension 3500 x 1390 x 2200mm
Drum width 1200mm
Wheel base 1686mm
