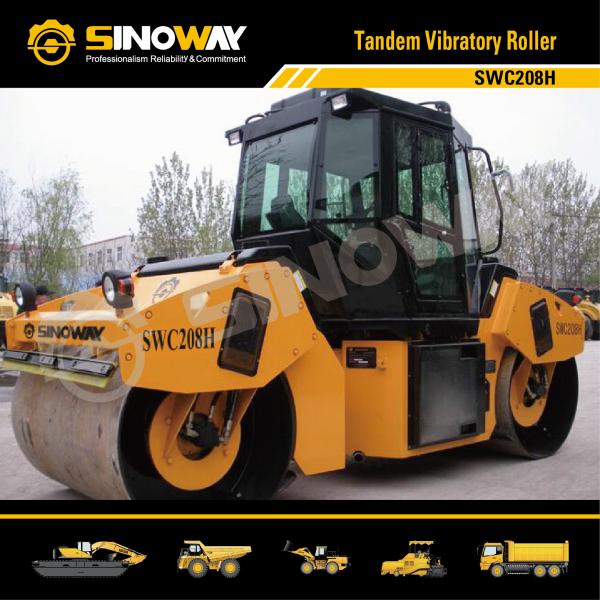

Heavy Buidling Conatsruction Equipment 8 ton Tendam Vibratory Roller for Asphalt Compaction
Heavy Buidling Conatsruction Equipment 8 ton Tendam Vibratory Roller for Asphalt Compaction
Specifications
Brand Name :
SINOWAY
Model Number :
SWC208H
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
3000 units per year
Delivery Time :
30 days
Packaging Details :
Nude
Engine power :
75kw
Static linear load :
231/231N/Cm
Vibrating frequency :
45/50Hz
Vibratin amplitude :
0.34/0.67mm
Condition :
Brand new
Water tank :
2x400L
Description

Building Construction Machinery

You can not finish your asphalt compaction without a tandem vibratory roller. With diverse road grades, come with diversity of asphalt material and thickness, thus the tandem asphalt compactor will of difference accordingly.
Sinoway tandem vibratory road roller range covers from 0.77 ton for asphalt repairing work, to 14 ton tandem road roller with vibration for your extra heavy duty requirement. As our single drum road roller, both mechanical transmission and hydrostatic transmission tandem road roller are available. Our hydraulicdouble drum vibratory road roller is designed with dual amplitude and frequency, which will enable your compaction of difference layers of asphalt with the same high productivity as well as best effectiveness.

Main Advantages

COMMINS water cooled diesel engine with rich power surplus,Hydrostatic all-drum travel drive by imported hydraulic motors at two range infinitely variable speeds.

Dual frequency and amplitudes vibration system with imported piston pump and motors.
Center articulated steering with crabwalk unit for flexible maneuverability.
Integrated multi-disc wet brake with oil-cutoff braking for reliable safety.
Beautiful streamline shape appearance and front mounted operator’s platform for excellence sight.

Comfortable and spacious operator’s cab with dual steering wheels and seats for convenient operations.

Electric power sprinkler system with large capacity reinforced polyethylene water tank.

Engine
Model Cummins
Type Four-cylinder,water-cooled,turbo-charged, mechanical injection
Rated power 75KW
Rated speed 2200rpm
Transmission System
Type Hydraulic drive
Grade ability 40%
Travelling speed (km/h)
Forward/Reverse 0 - 11.1
Travelling pump Sauer/Rexroth piston pump
Travelling motor Sauer/Rexroth piston motor
Axle
Drive type Dual wheel drive
Front axle load 4000Kg
Rear axle load 4000Kg
Main Technical Specification
Operating weight 8000Kg
Type Hydraulic vibration
Frequency 45/50Hz
Amplitude 0.34/0.67mm
Static linear load 231/231N/cm
Vertical oscillation 8º
Drum shell thickness 16mm
Centrifugal force (high ampl.) 90kN x 2
Centrifugal force (low ampl.) 69KN x 2
Steering System
Type Hydraulic articulated steering
Steering cylinder Two cylinders
Steering pump Gear pump
Working pressure 13MPa
Steering angle ±35°
Min. steering radius 6000mm
Braking System
Service brake Oil cut-off brake
Parking brake Button operated
Service Capacities
Hydraulic tank 65L
Vibrating bearings 20L
Coolant liquid 34L
Reducer 2.6L
Fuel tank 80L
Engine crank case 16L
Water tank 2 x 400L
Dimensions
Overall length 4558mm
Overall width 1840mm
Overall height 2674mm
Drum width 1730mm
Wheelbase 3217mm
Drum dia. 1150mm
Ground clearance 324mm
