Specifications
Brand Name :
SINOWAY
Model Number :
SWL90F
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
500 units per year
Delivery Time :
60 days
Packaging Details :
Nude
Product name :
Wheel Loader
Bucket volume :
5.0m3
Max. tractive force :
265kN
Condition :
Brand new
Warranty :
One year
Shipping :
RORO or Flat rack

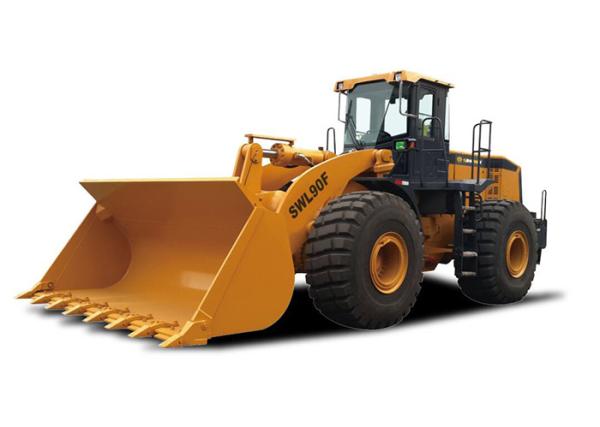

Description

Soil Moving Machinery

Wheel Loaders, or front-end loaders, are a type of heavy equipment machine that is primarily used for moving or loading large amounts of material such asasphalt, demolition debris, dirt, snow, feed, gravel, logs, raw minerals, recycled material, rock, sand, woodchips, etc. While Wheel Loaders typically feature a large general-purpose bucket, these machines can be outfitted with other various attachment.
Sinoway offers a complete line of wheel loaders, covering from maneuverable compact wheel loader to productive heavy wheel loader. With world-class components used and more care built in, you will surely feel the robust power with comfort operating by experiencing our new F series models of front end bucket loader.
Sinoway wheel loaders are widely employed in the digging, transporting and loading construction materials like soil, sand and gravel. With various configurations, Sinoway wheel loader is devoted to meet both your applications as well as your budgets. Thanks to our variety of attachments for wheel loader, Sinoway even extend your loading applications to mining,farming, stockpile scooping, snow plowing, logging and timber industry.

Main Features

Equipped with Cummins engine. This power house has been designed to deliver impressive acceleration and torque output, along with a serious bucket filling and lifting capability which greatly increases cycle times and earning potential.

Reinforced rock bucket with thickened plate is made especially for loading aggregates in mines.

Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.

Faster cycle times are made easy with the machine's power combination. The engine is teamed up with a four speed, ZF smooth shifting transmission. This combination optimizes power and fuel efficiency, day after day, increasing bucket breakout force and loading capability. To this, we've added larger, high capacity axles which make light work of the toughest terrain and intelligent hydraulics for low-engine speed performance, quick steering response and rapid boom up speeds. We put this power right in your operator's hands with simple and intuitive controls designed to get the job done faster and more effectively every cycle.

ROPS & FOPS cabin with air conditioner.

Engine
Model Cummins
Type Six-cylinder,air to air cooled,turbocharged,electronic injection
Rated power 250KW
Rated speed 2100rpm
Main Technical Specification
Rated load 9000Kg
Operating weight 29500Kg
Rated bucket capacity 5.0m3
Max. breakout force 260KN
Max. dump clearance 3300mm
Dump reach 1470mm
Dump angle at any position 40o
Digging depth (with bucket bottom horizontal) 250mm
Min. turning radius 6200mm
Lifting time of bucket ≤7.0s
Lowering time of bucket ≤4.3s
Dumping time ≤1.2s
Implement Hydraulic System
Model of oil pump Gear pump
System pressure 20MPa
Model of multi-way directional valve Rexroth
Priority valve Rexroth
Axle And Tyre
Axle model ZF
Type of final reducer Single stage planetary
Max. tractive force 245KN
Tyre size 29.5R25
Steering System
Type Double-action pistion
Model of steering pump Gear pump
System pressure 19MPa
Articulated steering angle 40°(L/ R)
Transmission System
Torque Converter
Model ZF
Type 3 elements, single stage
Cooling type Pressure oil circulating
Gear box
Model ZF
Type Power shift
Gear shifts(Forward/Reverse) F4/R3
Travelling speed(km/h)
Forward/Reverse I 7.0/7.0
Forward/Reverse II 11.6/11.6
Forward/Reverse III 24.5/24.5
Forward IV 35.5
Dimensions
Overall length(with bucket on ground) 9400mm
Overall width(to outside of wheels) 3500mm
Overall height(to the top of the cab) 3770mm
Bucket width 3500mm
Wheel base 3600mm
Tread 2460mm
Ground clearance 520mm
Service Capacities
Fuel tank 420L
Engine crank case 33L
Converter and gear box 64L
Hydraulic tank 340L
Braking System
Service brake Full hydraulic
Emergency brake Wet disc brake
Parking brake Wet disc brake
