High Compression Ability Garbage Collection Truck Vehicle 12/16m3 Hopper Capacity
High Compression Ability Garbage Collection Truck Vehicle 12/16m3 Hopper Capacity
Specifications
Brand Name :
SINOWAY
Model Number :
SWGC21042C12/SWGC21042C16
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 set per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine :
CUMMINS
Rated power :
155KW
Total mass :
15800kg
Payload capacity :
6650kg
Overall dimensions :
8500×2500×3000mm
Max. speed :
98km/h
Hopper capacity :
12/16m³
Warranty :
2 years
Description

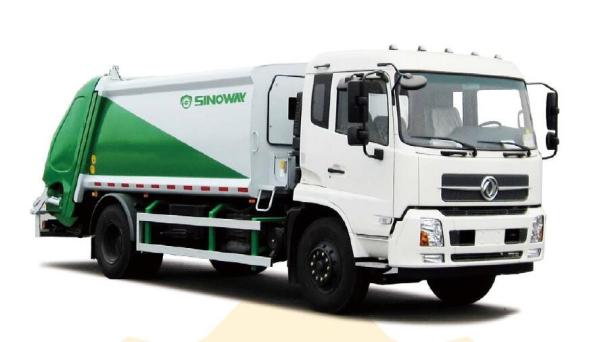

High Compression Ability 4×2 Chassis CUMMINS Engine 12m3 Hopper capacity of Garbage Truck Sanitation Vehicle

Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc

Garbage compactor truck capacity from 3 cbm to 18cbm all available .

SINOWAY brand Garbage compactor truck advantage :

1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control

2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety

3 Cheap price , one year warranty

4 Garbage bin lifting system could design as customer’s requirement .

5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.

6 High compression ability, huge loading quantity. Compress the garbage of 200-400 kg/m3 into 400- 600 kg/ m3

7 Most process are operated automatically, and the system is equipped with interlock devices to prevent Error operation.
8 Hydraulic system& Electric system control all kinds of movements of the compressor truck, so to prevent getting stuck, intervention or collocation of two parts.
9 Automatic design, saving labor, energy conservation and environment protection.

Engine
Engine make Cummins
Type Six cylinders,four strokes, direct injection turbocharged, water cooled
Rated power 155kw (210Hp)
Main Technical Specifications
Kerb mass 9295Kg
Payload 14000Kg
G.V.W 23295Kg
Max. speed 85Km/h
Approach angle 25°
Departure angle 18°
Crew 3
Hopper capacity 12m³
Volume of plugger I.5m³
Loading time ≤ 20s
Unloading time ≤ 30s
Mode of drive 4 x 2
Fuel tank capacity 400 L
Dimensions
Overall size (L x W x H) 8600 x 2500 x 3200mm
Wheel base 4900mm
Transmission System
6 forward & 1 reverse with synchronizer
Ratio
Forward 6.446, 3.841, 2.29, 1.477, 1.00, 0.802
Reverse 5.802
Steering System
Hrdraulic steering with power assistance
Axle and Tyre
Front axle 5T
Rear axle 10T
Tyre size 10.00R20
Clutch and Brake
Service brake Full air brake, dual circuit
Parking brake Spring energy operating on rear wheels
Suspension
Front suspension Tapered leaf spring 9 semi-elliptic leaf spring
Rear suspension Tapered leaf spring 11 semi-elliptic leaf spring
Optional
Bin lifting system
