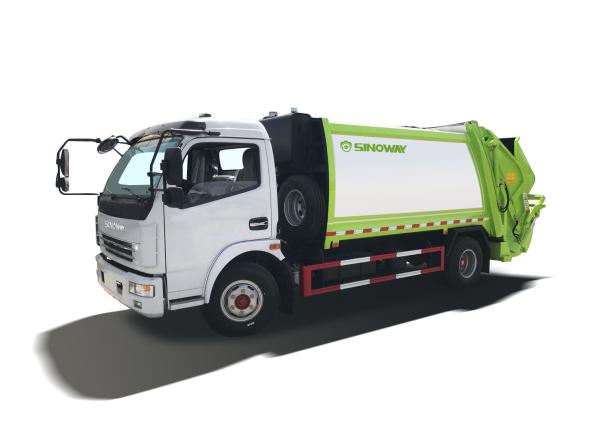

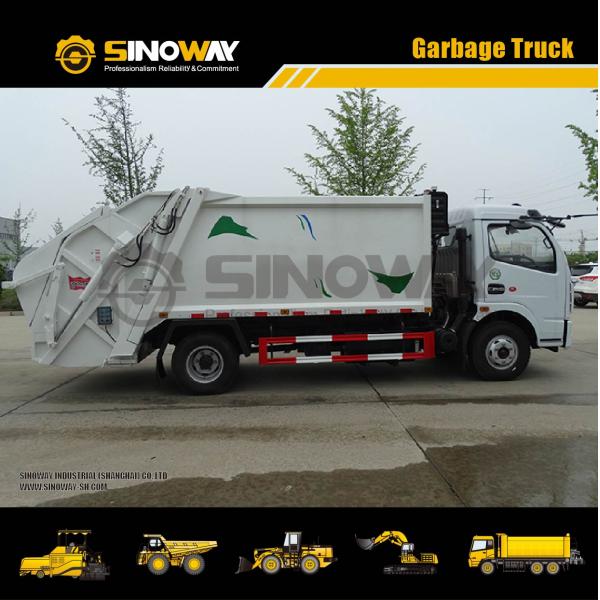

4×2 Chassis Sanitation Garbage Collection Truck Waste Removal Trucks 95km/H Max Speed
4×2 Chassis Sanitation Garbage Collection Truck Waste Removal Trucks 95km/H Max Speed
Specifications
Brand Name :
SINOWAY
Model Number :
SWGC17042C08
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 set per month
Delivery Time :
30 days
Packaging Details :
Nude
Engine :
Cummins B170 33
Rated power :
125kw (170Hp)
Kerb mass :
6300kg
Payload :
8000kg
G.V.W :
14300kg
Max. speed :
95km/h
Hopper capacity :
8.0m³
Fuel tank capacity :
400L
Description

4×2 Chassis CUMMINS Engine 8m3 Hopper capacity of Garbage Truck Sanitation Vehicle Refuse Collection Vehicle

Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc

Garbage compactor truck capacity from 3 cbm to 18cbm all available .

SINOWAY brand Garbage compactor truck advantage :

1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control

2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety

3 Cheap price , one year warranty

4 Garbage bin lifting system could design as customer’s requirement .

5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.

6 High compression ability, huge loading quantity. Compress the garbage of 200-400 kg/m3 into 400- 600 kg/ m3

7 Most process are operated automatically, and the system is equipped with interlock devices to prevent Error operation.
8 Hydraulic system& Electric system control all kinds of movements of the compressor truck, so to prevent getting stuck, intervention or collocation of two parts.
9 Automatic design, saving labor, energy conservation and environment protection.

Engine
Model Cummins B170 33
Type Six cylinders,four strokes, direct injection turbocharged, water cooled
Rated power 125kw (170Hp)
Main Technical Specifications
Kerb mass 6300Kg
Payload 8000Kg
G.V.W 14300Kg
Max. speed 95Km/h
Approach angle 24°
Departure angle 15°
Crew 3
Hopper capacity 8.0m³
Volume of plugger I.0m³
Loading time ≤ 20s
Unloading time ≤ 30s
Max. pushing force for garbage 150Kn
Max. compression force 400Kn
System pressure 16Mpa
Mode of drive 4 x 2
Fuel tank capacity 400 L
Transmission System
DF6S900T with synchronizer, 6 forward & 1 reverse
Ratio
Forward 6.446, 3.841, 2.29, 1.477, 1.00, 0.802
Reverse 5.802
Steering System
Hrdraulic steering with power assistance
Axle and Tyre
Front axle 3.4T
Rear axle 5.3T
Tyre size 7.50R16 Radial tyre
Dimensions
Overall size (L x W x H) 7300 x 2300 x 2750mm
Wheel base 3800mm
Clutch and Brake
Service brake Full air brake, dual circuit
Parking brake Spring energy operating on rear wheels
Suspension
Front suspension Tapered leaf spring 9 semi-elliptic leaf spring
Rear suspension Tapered leaf spring 11 semi-elliptic leaf spring
Optional
Bin lifting system

4×2 Chassis Sanitation Garbage Collection Truck Waste Removal Trucks 95km/H Max Speed

4×2 Chassis Sanitation Garbage Collection Truck Waste Removal Trucks 95km/H Max Speed

4×2 Chassis Sanitation Garbage Collection Truck Waste Removal Trucks 95km/H Max Speed
