Specifications
Brand Name :
SINOWAY
Model Number :
SWMH250K
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 units per months
Delivery Time :
45 days
Packaging Details :
Nude
Operating weight :
25 ton
Rated power :
260 hp
Max. greadability :
10%
Min. ground clearance :
250mm
Max. Travel Speed :
15Km/h
Min.turning radious :
13 m
Warranty :
12 months
Condition :
Brand new
Brand :
SINOWAY
Description

material handling equipment 25 ton high performance ISO9001

Main Advantage
This product has a "double force" system for internal combustion engine and 380V electric interchange operation; "double force" system with explosion-proof machine and electric interchangeable operation; "double force" system with optional explosion-proof machine and electric interchange operation; The use of explosion-proof machine, electric interchangeable "double force" system; optional explosion-proof machine, fully enclosed electrical, fire protection and save 60% energy consumption compared to internal combustion engine operations; can quickly replace different hydraulic grabs.

The electric operation has over-current and heat-discharge protection devices;
Phase sequence automatic identification to prevent oil pump reversal device;
Hydraulic system power failure, oil self-locking protection device;
There are a number of complex movements during the operation to improve efficiency;
The hydraulic system is equipped with an air-cooled radiator;
The gripper can automatically turn and reversing 360 degrees;
When the electric control room is electrically operated, there is a dual-purpose air conditioning unit;
Elevated cab as optional.
Specifications
Power
Electrical motor 75kw
Rated speed 1200rpm
Max. swing speed (electrical motor) 5r/min
Diesel engine 118kw
Rated speed 2200rpm
Max. swing speed (diesel engine) 8r/min
Fuel tank capacity 320L
Main Technical Specification
Max. lifting capacity＠Min. working radius 8500kg
Max. lifting capacity＠Max. working radius 1000kg
Min. working radius 3000mm
Max. working radius 10200mm
Max. lifting moment 30.0t.m
Max. swing torque 75KN.m
Boom length 6200mm
Arm length 4000mm
Main luffing time (Max. speed)
Fall boom (electrical / diesel) ≤17s/≤11s
Rise boom (electrical / diesel) ≤21s/≤11s
Auxiliary luffing time (Max. speed)
Fall boom (electrical / diesel) ≤20s/≤11s
Rise boom (electrical / diesel) ≤9s/≤6s
Outrigger
Fall stretching (electrical / diesel) ≤16s/≤11s
Fall retracting (electrical / diesel) ≤12s/≤10s
Outrigger distance
Lengthways 4500mm
Transversal 4200mm
Travelling System
Max. travelling speed 15km/h
Min. turning radius 7.6m
Max. gradeability 10%
Min. ground clearance 250mm
Max. traction force 100kN
Approach angle 15.0°
Departure angle 15.0°
Braking distance (speed: 15km/h) ≤6.5m
Operating weight 25000kg (including clam shell)
Dimension
A. Overall length 10800mm
B. Overall width 3000mm
C. Overall height 3430mm
D. Wheelbase 2800mm
E. Max. lifting height of cab 5840mm
F. Rear-end length/slewing radius 3600mm
G. Counterweight clearance 1372mm
H. Upper-structure width 2700mm

Interchangeable Operation Material Handling Equipment 25 Ton High Performance ISO9001

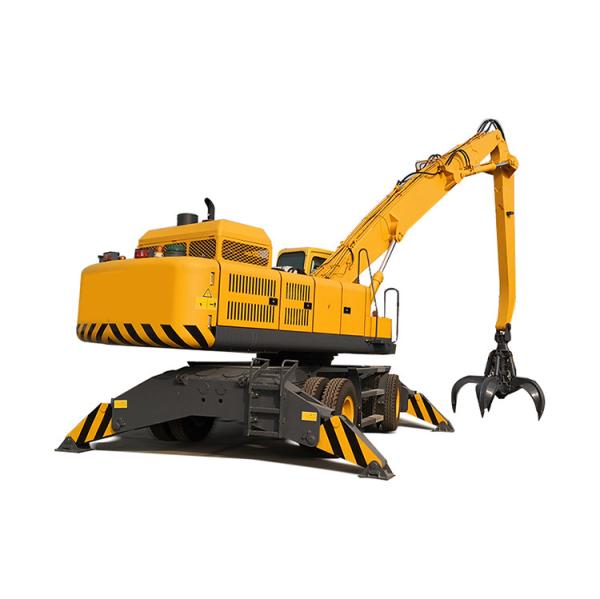

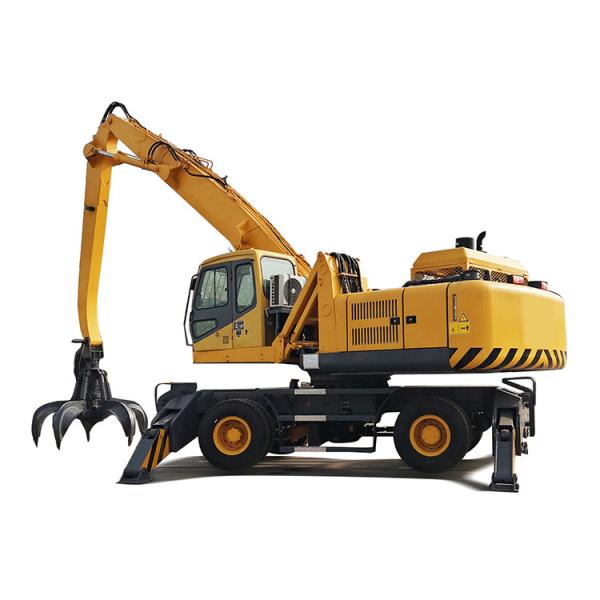

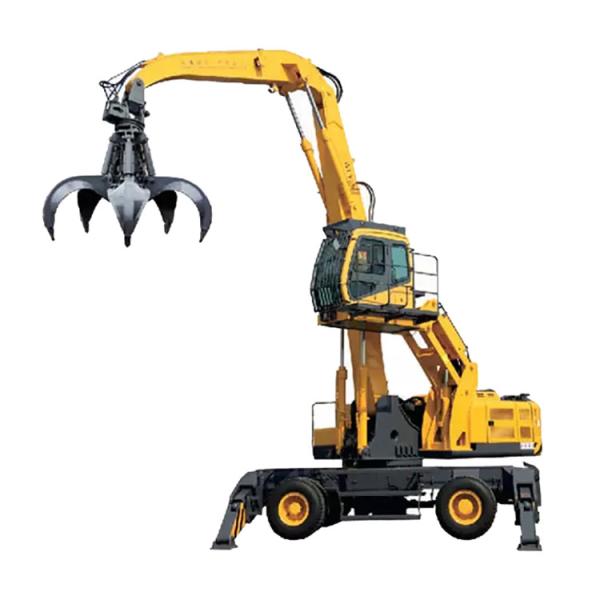

Product Show

Interchangeable Operation Material Handling Equipment 25 Ton High Performance ISO9001

Interchangeable Operation Material Handling Equipment 25 Ton High Performance ISO9001

Interchangeable Operation Material Handling Equipment 25 Ton High Performance ISO9001
