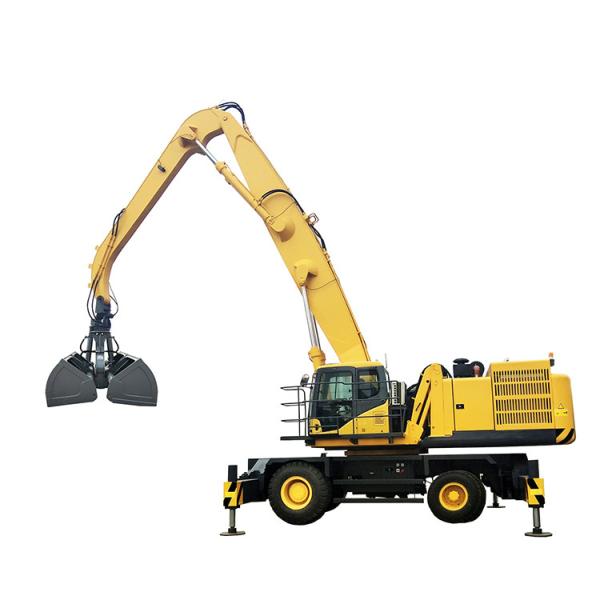

Construction Site Crawler Material Handler 35 Ton 109kN Max Traction Force Customized Color

Main Advantage
SWMH series "double power" hydraulic crawler crawler is based on the excavator developed with "dual power" drive the freight yard handling, stacking and stacking special equipment, using a number of independent intellectual property rights. The product is a mobile loading equipment, to meet the various types of scrap and other bulk cargo handling, stacking, feeding and other operations, with the following advantages:
1, Machine, electric hybrid drive, both the use of internal combustion engine drive operations, but also the use of motor drive operations, flexible and flexible. Using motor drive, low maintenance costs, no pollution, low failure rate. The motor operation is one third of the operating cost of the internal combustion engine;
2, According to job requirements, increase the electromagnetic sucker operation function;
3, The device uses full hydraulic drive, with stepless speed operation function, smooth operation. Optional arm with a third arm telescopic function, that does not affect the overall size of the machine, in the short range of flexible operation, but also in the long-distance operation to play a very good performance;
4, The hydraulic series used: double power drive, dual pump dual circuit total power regulation, negative flow control open system; dual power drive, dual pump dual circuit sub-power control, with pilot pressure over control, system.
5, The equipment is equipped with hydraulic oil strong wind cooling device, to ensure continuous operation of the hydraulic oil temperature does not exceed 80 ºC, effectively extending the service life of hydraulic seals;
6, The series of grab machine in addition to the scrap can be equipped with scrap steel scraping operations, but also easy to replace the other grips, a variety of raw materials for gripping operations; remove the gripper and then can be used as an ordinary crane Use, a machine;
7, The device has a variable amplitude, rotation and other safety limit device, safe and reliable operation;
8, The cab optional lifting function, the cab operator's head-up height of up to 5.6 meters, wide field of vision, easy to grasp the bottom of the box and other operations in depth, and in the control room to install adjustable seats, equipped with car air conditioning, Effectively improve the driver's working environment;
9, The motor protection class IP54, electrical system over-current, overload, overheating, leakage and other protection functions; use Y / △ step-down start;
10, With phase sequence recognition, to prevent motor reversal function; use 24V low voltage lighting and Kai, closed control;
11, Optional installation of weighing instrument;
12, Optional grips with rotating head, so that the grip has a 360 ° rotation function, especially for directional raw materials, have a better crawling effect.
13, The equipment is equipped with the German imports of automatic centralized lubrication system.
