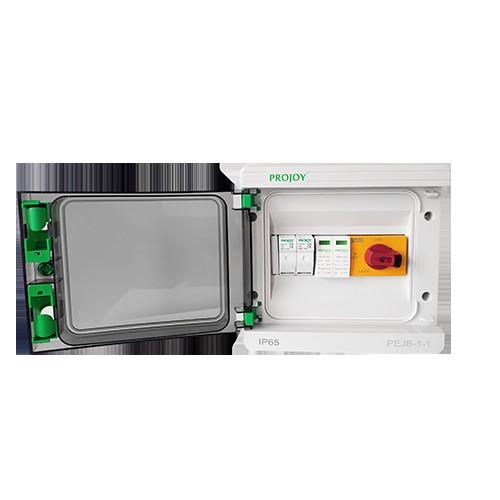

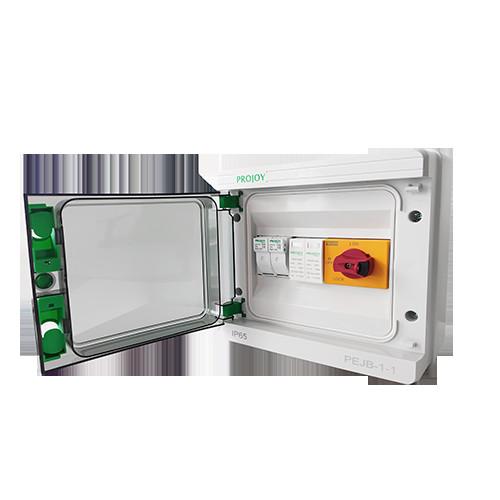

CE DC Solar Combiner Box 1 In 1 Out 219×200×100mm Solar Electric System
CE DC Solar Combiner Box 1 In 1 Out 219×200×100mm Solar Electric System
CE DC Solar Combiner Box 1 In 1 Out 219×200×100mm Solar Electric System
CE DC Solar Combiner Box 1 In 1 Out 219×200×100mm Solar Electric System
CE DC Solar Combiner Box 1 In 1 Out 219×200×100mm Solar Electric System
CE DC Solar Combiner Box 1 In 1 Out 219×200×100mm Solar Electric System
Specifications
Brand Name :
PROJOY
Model Number :
PEJB-1-1
Certification :
TUV, CE, CB
Place of Origin :
Jiangsu, China
MOQ :
50
Price :
Us $57.99
Payment Terms :
T/T
Supply Ability :
100000
Delivery Time :
5-8 work days
Packaging Details :
wooden cases
Maximum Voltage :
1000 V
Maximum Current Output :
32 A
Dimension (WxHxD) :
219×200×100mm (9P)
Input :
1 String
Output :
1 String
Degree of Protection :
IP65
Description

Solar DC String Box DC 1000V / 32A, 4 In 2 Out

Projoy DC Strings / Combiner Boxes For Residential Rooftop PV Plants (≤ 4 strings)

General Data
DC Surge Arrester
Model No.
PEJB-1-1
Max Operation Voltage(Ucpv)
1000V
Input
1 String
Standard Compliance with
EN50539
Output
1 String
Maximum Discharge Current
40KA
Maximum Voltage
1000V
Type
2
Max DC Short Circuit Current Per Input
15A(changeable)
Certification
TUV, CE, CB
Maximum Current Output
32A
Enclosure
DC fuse holder
Material Type
Polycarbonate/ABS
Rated Working Voltage
1000V
Degree of Protection
IP65
Rated Working Current
15A~32A
Degree of Resistance to lmpacts
IK10
Fuse Link
10×38mm
Dimension (WxHxD)
381×380×110mm (36P))
Certification
CB, CE
Cable Input Entry
Cable Gland ￠4-8mm or MC4
Cable Output Entry
Cable Gland ￠4-8mm or MC4
DC Switch Disconnector
Environment
Rated Insulation Voltage(Ui)
1000V
Operaling Temperature
-20℃~+60℃
Rated Current(le)
32A
Humidity
99%
Category
DC21B/PV1
Altitude
2000M
Standard Compliance with
IEC60947-3
Installation
Wall Mounting
Certification
UL, TUV, SAA, CE, CB
