8.65A Solar Electric System NRuiT Powerporter 5kw Solar Power PV System
8.65A Solar Electric System NRuiT Powerporter 5kw Solar Power PV System
Specifications
Brand Name :
Growatt/nRuiT/Fusoli
Model Number :
ESS-5kwh
Certification :
MSDS/UN38.3/CE
Place of Origin :
Guangdong,China
MOQ :
1
Price :
$1，350.00 - $5，857.60/Set
Payment Terms :
T/T
Supply Ability :
2000 units per month
Delivery Time :
5-8 days
Packaging Details :
wooden case
Product name :
Off-grid Solar System 5kw
Battery Type :
Lithium Ion Battery
Color :
White
Load Power :
5KW
Warranty :
10 Years
Inverter :
Growatt 5000-TL
Mounting Type :
Wall or floor mount
Energy storage :
nRuiT Powerporter 5kw
Working Time :
24H
Application :
Commercial, Industrial,Home
Description

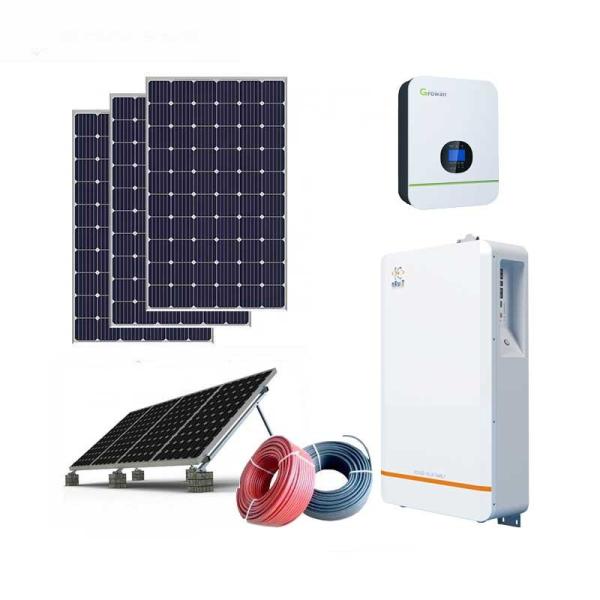

Photovoltaic Solar System Solar Off-Grid System 5Kw A Set For Home Use

Langic photovoltaic solar system allows you to provide your own power when power grid is shut down. High-efficiency solar panels is used for battery charging and inverter is used to convert power for household load.Solar off-grid system supply power without relying on the traditional power grid.

ESS-BT10-PV5-INV5 ESS-BT10-PV10-INV10 ESS-BT10-PV10-INV10 ESS-BT10-PV15-INV15

Battery:

powerporter 9kwh
1 unit
10kwh / 48V/ / 200ah
2 unit
20kwh / 48V/ / 400ah
 3 unit
30kwh / 48V/ / 600ah		 3 unit
30kwh / 48V/ / 600ah

Solar panel:

JT330w-24M
12pcs (5kw)
400w/pcs
12 pcs (10kw)
400w/pcs
 25 pcs (10kw)
400w/pcs		 25 pcs (15kw)
400w/pcs

Inverter:

Growatt 3000~5000TL
1 unit
Growatt 5000TL-HVM
2 unit
Growatt 5000TL-HVM
 2 unit
Growatt 5000TL-HVM		 3 unit
Growatt 5000TL-HVM
System max. AC output power 5kw 10kw 10kw 15kw
Combiner box 1 set 1 set 1 set 1 set
Kabel DC 4mm2 200 meters 200 meters 200 meters 300 meters
PV component 1 set 1 set 1 set 1 set
Contact customer service and support customization

Solar panel : JT400w-24M
Pmax 400w
Vmp 38.23V
Imp 8.65A
Size 1950x990x40mm
Weight 22.86Kg
Cell Type Mono 156mm x 156mm
Cell Arrangement 72 cell in series

Battery : Powerporter 10kwh
Nominal Energy 10.2Kwh
Nominal Voltage 51.2V
Capacity 200Ah
Size 830x460x200 mm
Weight 94.17Kg
Battery cell Lithium ion battery cell (CATL )
Cycle life 6000+ (Promise)
Installation Wall or floor mount

Inverter : Growatt 3000~5000TL HVM
Battery voltage 48 VDC
Rated power 3000~5000W
Output voltage range 230VAC±5%@50/60Hz
Mppt voltage range 30VDC~80VDC
60VDC~115VDC
Size 130 x 350 x 455 mm
Weight 8Kg/14.5kg

Combiner box
PV Fuse
PV Cirrcuit Breaker
PV SPD Surge Protective Device
Genset output
AC SPD
ATS Automatic Transfer Switch
RCBO Residual current circuit breaker with over current protection
Inverter Output

PV component
Kabel DC & MC4 Konektor
PV Cirrcuit Breaker
Palang Bagian 4mm2-6mm2-Opsional
Nilai Tegangan 600VDC(UL)/1000VDC(TUV)
PV Shelf Material Al 6005-T5

8.65A Solar Electric System NRuiT Powerporter 5kw Solar Power PV System8.65A Solar Electric System NRuiT Powerporter 5kw Solar Power PV System8.65A Solar Electric System NRuiT Powerporter 5kw Solar Power PV System
