Ground Mounted Evacuated Tube Solar Hot Water Heater For Private Residential Use
Ground Mounted Evacuated Tube Solar Hot Water Heater For Private Residential Use
Specifications
Brand Name :
SolarShine/OEM
Model Number :
25-50T/58X1800
Place of Origin :
China
MOQ :
5
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Type :
Vacuum tube solar collector
Tube model :
Φ58*1800 high efficiency collector vacuum tubes
Installation :
Ground mounted
Absorptivity :
as=0.93~0.96(AM1.5)
Emission Ratio :
Σh=0.04~0.06(80°C±5°C)
Vacuum Tightness :
P≤5.0×10-3Pa
Manifold inside material :
SUS304 2B / 316L (Optional)
Manifold Outer cover :
Stainless steel / Colorful painted steel
Insulation :
High density polyurethane foam (Non-CFC)
Ground stand :
All stainless steel stand
Mounted direction :
Vertical or horizontal
Tank capacity :
150-500litres
Description
Product Installations:

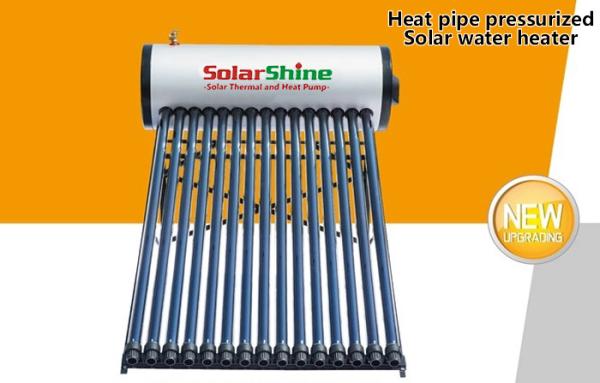

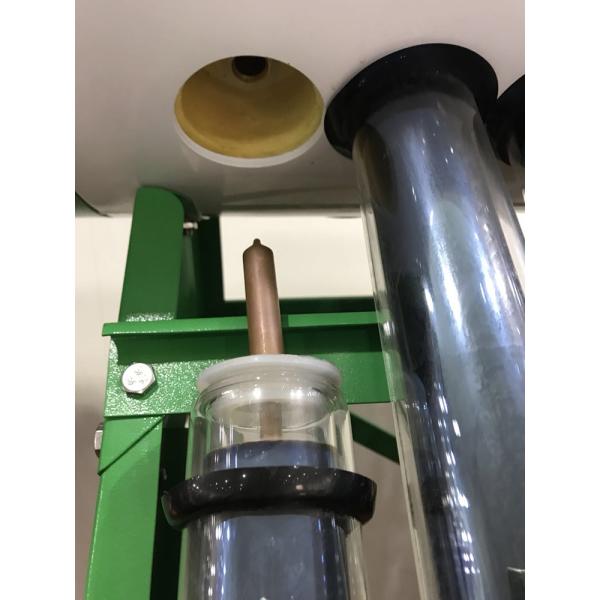

Heat pipe solar water heater is an innovated product, the biggest advantage of this product is that the superconducting heat pipe is designed to make the system run under pressure, and the efficiency is higher than flat panel solar collector.

Heat pipe solar water heater system is especially suitable for private residential use. There are normally 2 systems, one is compact thermosyphon type, it need without pumps and temperature difference circulation system, capacity from 150-320L. The other type is the separated pressurized, which requires pumps and temperature difference system workstations, capacity of 150-500L.

Both of the 2 types systems can meet the hot water demand of different size households in an all-round way.

Ground Mounted Evacuated Tube Solar Hot Water Heater For Private Residential UseGround Mounted Evacuated Tube Solar Hot Water Heater For Private Residential Use

Ground Mounted Evacuated Tube Solar Hot Water Heater For Private Residential Use

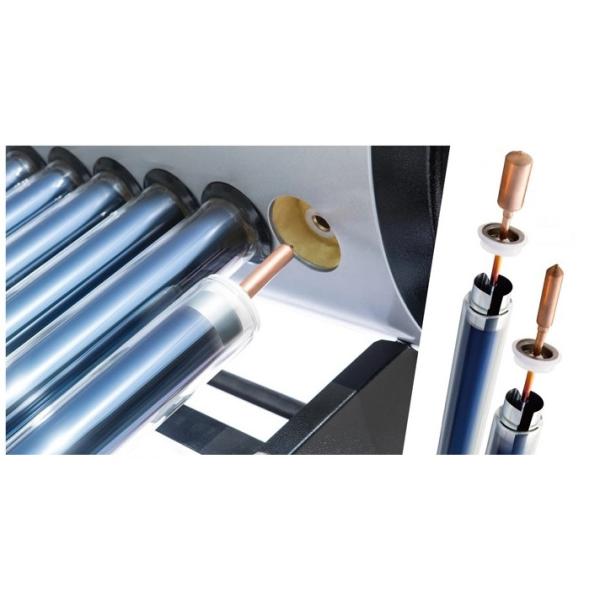

Specifications of 58mm*1800mm solar water heat pipe vacuum tube

Structure All glass double-tube co-axial structure

Tube glass

 Material 1.6mm High borosilicate 3.3 glass
Expansively ≤3.3×10-6K
Transmittance ≥0.89
Hailstone resistance Ø 25 mm
Withstand voltage 0.6MPa
Resist wind 30m/s
Life 15 years
External tube diameter and thickness Ø =47±0.7mm &=1.6mm Ø =58±0.7mm &=1.6mm
Internal tube diameter and thickness Ø =37±0.7mm &=1.6mm Ø =47±0.7mm &=1.6mm
Tube length 1500mm 1800mm
Vacuum degree P≤5.0*10-4Pa

Absorption coating property

 Structure Glass/CU/SS-ALN(H)/SS-ALN(L)/ALN
Sediment method 3 target magnetron sputtering plating
Absorption ratio α=0.92~0.96(AM1.5)
Emission ratio ε=0.04~0.06(80°C±5°C)
Idle sunning property parameters Y=260~300m2.C/KW
Solar irradiation for obtaining a preset water temperature H=3.7~4.2MJ/m2 H=2.9~3.2MJ/m2
Average heat loss coefficient ULT=0.4~0.6W/(m2.°C)
Key Specification

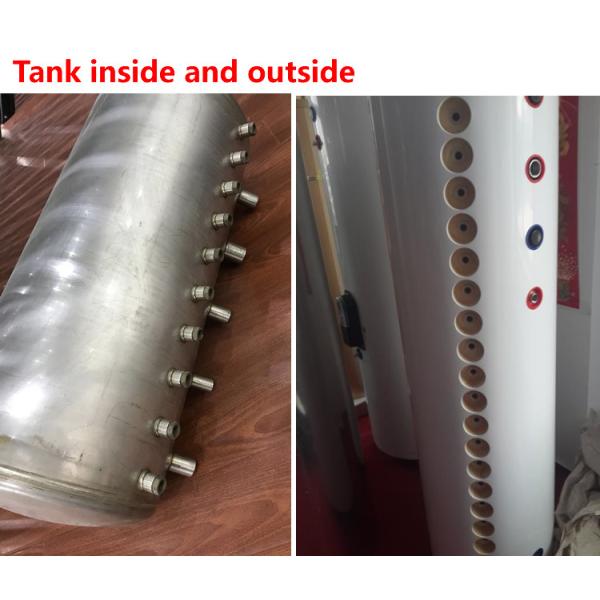

inner tank stainless steel SUS304-0.5mm
vacuum tube QB-AL-N/AL-47-1500
outer tank stainless steel SUS201/Galvanized steel
frame stainless steel SUS201-1.2mm/ Galvanized steel-1.5mm
insulation Polyurethane
reflector stainless steel
Solar heat storage tank diameter(mm) 310/410
Thickness, insulated(mm) 50
Vent connection(inch) 3/4
Electric heater connection(inch) 1
Water connection(inch) 3/4
Collector angle(degree) 30/45

Type (one)

Area

(m^2)

 Vacuum tube

Volume

(Liters)

Grosswet

(kg)

Volume/set

(Cubic meter)

Length

(mm)

 DIA(mm) Qty(pcs)
JDL-15-58/1.8 1.92 1800 58 15 135 49 0.51
JDL-18-58/1.8 2.3 1800 58 18 156 58 0.61
JDL-20-58/1.8 2.55 1800 58 20 172 65 0.66
JDL-24-58/1.8 3.06 1800 58 24 206 76 0.77
JDL-30-58/1.8 3.82 1800 58 30 260 92 0.95
