Convenient Heat Pipe Solar Water Heater All Glass Double Tube Co Axial Structure
Convenient Heat Pipe Solar Water Heater All Glass Double Tube Co Axial Structure
Specifications
Brand Name :
SolarShine/OEM
Model Number :
25-50T/58X1800
Place of Origin :
China
MOQ :
5
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Tube model :
Φ58*1800 high efficiency collector vacuum tubes
Absorptivity :
as=0.93~0.96(AM1.5)
Emission Ratio :
Σh=0.04~0.06(80°C±5°C)
Vacuum Tightness :
P≤5.0×10-3Pa
Manifold inside material :
SUS304 2B / 316L (Optional)
Manifold Outer cover :
Stainless steel / Colorful painted steel
Insulation :
High density polyurethane foam (Non-CFC)
Ground stand :
All stainless steel stand
Description

Application :


1. Domestic hot water
2. Project hot water
3. Ground Heating and radiator
4. Central Cooling and heating
5. Suitable for family,hotel, barbers, beauty shop, school, hospital

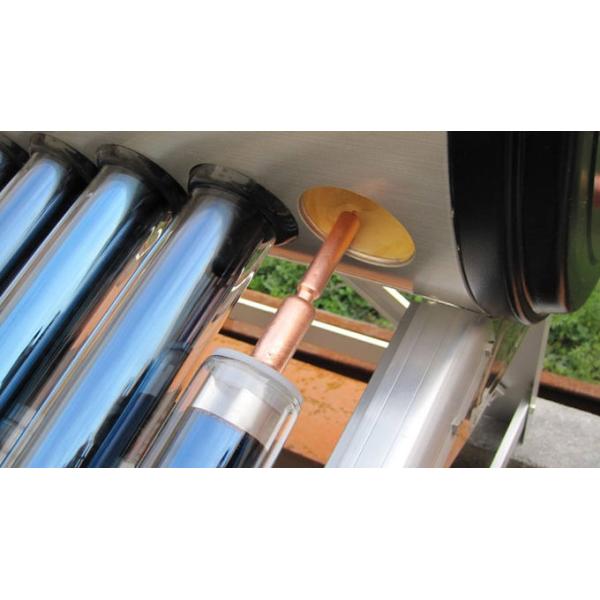

Heat pipe solar water heater is an innovated product, the biggest advantage of this product is that the superconducting heat pipe is designed to make the system run under pressure, and the efficiency is higher than flat panel solar collector.

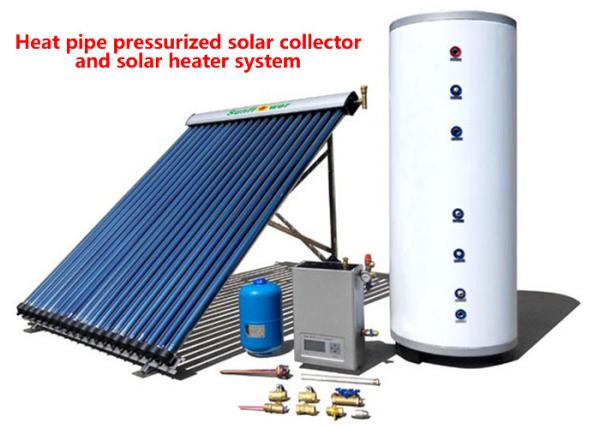

Heat pipe solar water heater system is especially suitable for private residential use. There are normally 2 systems, one is compact thermosyphon type, it need without pumps and temperature difference circulation system, capacity from 150-320L. The other type is the separated pressurized, which requires pumps and temperature difference system workstations, capacity of 150-500L.

Both of the 2 types systems can meet the hot water demand of different size households in an all-round way.


Specifications of 58mm*1800mm solar water heat pipe vacuum tube

StructureAll glass double-tube co-axial structure




Tube glass

Material1.6mm High borosilicate 3.3 glass
Expansively≤3.3×10-6K
Transmittance≥0.89
Hailstone resistanceØ 25 mm
Withstand voltage0.6MPa
Resist wind30m/s
Life15 years
External tube diameter and thicknessØ =47±0.7mm &=1.6mmØ =58±0.7mm &=1.6mm
Internal tube diameter and thicknessØ =37±0.7mm &=1.6mmØ =47±0.7mm &=1.6mm
Tube length1500mm1800mm
Vacuum degreeP≤5.0*10-4Pa



Absorption coating property

StructureGlass/CU/SS-ALN(H)/SS-ALN(L)/ALN
Sediment method3 target magnetron sputtering plating
Absorption ratioα=0.92~0.96(AM1.5)
Emission ratioε=0.04~0.06(80°C±5°C)
Idle sunning property parametersY=260~300m2.C/KW
Solar irradiation for obtaining a preset water temperatureH=3.7~4.2MJ/m2H=2.9~3.2MJ/m2
Average heat loss coefficientULT=0.4~0.6W/(m2.°C)
Key Specification
inner tankstainless steel SUS304-0.5mm
vacuum tubeQB-AL-N/AL-47-1500
outer tankstainless steel SUS201/Galvanized steel
framestainless steel SUS201-1.2mm/ Galvanized steel-1.5mm
insulationPolyurethane
reflectorstainless steel
Solar heat storage tank diameter(mm)310/410
Thickness, insulated(mm)50
Vent connection(inch)3/4
Electric heater connection(inch)1
Water connection(inch)3/4
Collector angle(degree)30/45

Type (one)

Area

(m^2)

Vacuum tube

Volume

(Liters)

Grosswet

(kg)

Volume/set

(Cubic meter)

Length

(mm)

DIA(mm)Qty(pcs)
JDL-15-58/1.81.9218005815135490.51
JDL-18-58/1.82.318005818156580.61
JDL-20-58/1.82.5518005820172650.66
JDL-24-58/1.83.0618005824206760.77
JDL-30-58/1.83.8218005830260920.95
