Economic Vacuum Tube Solar Collector Horizontal Mounted 50 Collector Tubes / Set
Economic Vacuum Tube Solar Collector Horizontal Mounted 50 Collector Tubes / Set
Specifications
Brand Name :
SolarShine/OEM
Model Number :
25-50T/58X1800
Place of Origin :
China
MOQ :
5
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Vacuum tubes quantity :
25-250PCS
Type :
Vacuum tube solar collector
Tube model :
Φ58*1800 high efficiency collector vacuum tubes
Installation :
Ground mounted
Absorptivity :
as=0.93~0.96(AM1.5)
Emission Ratio :
Σh=0.04~0.06(80°C±5°C)
Vacuum Tightness :
P≤5.0×10-3Pa
Manifold inside material :
SUS304 2B / 316L (Optional)
Manifold Outer cover :
Stainless steel / Colorful painted steel
Insulation :
High density polyurethane foam (Non-CFC)
Ground stand :
All stainless steel stand
Mounted direction :
Vertical or horizontal
Description

Consists of a vacuum tube, a heat pipe, a metal heat absorption wing and the connecting manifold. The metal heat absorption wing with selective absorption coating converts solar energy into heat energy and transfers it medium liquid inside. The vacuum between the two glass tubes works as insulation. The liquid in the heat pipe changes into vapor which rises to the condenser. When passing through the heat exchanger, the heat is absorbed and the temperature is lowed, and the vapor becomes liquid, returns to the base of the heat pipe. This transference of heat is a continuous circulation as long as the collector is heated by the sun.

Vacuum tube solar collector is a new type of solar collector with higher efficiency, simpler installation and lower cost than traditional flat plate solar collector. It is widely used in solar central hot water engineering system.

The collector consists of three parts: ground mounting bracket/all-glass vacuum collector tube/heat preservation tank.

The design of the vacuum tube solar collector is very flexible. It can be used to make the appropriate support and installation method according to the installation size of different building roofs.

Features
1. Super anti-corrosive outer tank: Outer tank is made by 201# /SUS304 2B stainless steel.
2. Strong inner tank with SUS3042B stainless steel up to 0.41mm.
3. High efficiency vacuum absorber tubes.
4, Stainless steel mounting floor stand.
Specification
* 25-30tubes (vertical) / 50 tubes (horizontal) /
* Group manifolds sets (50 tubes X1/2/3/4/5...)
* Installation area need for each group: About 16M2
* Feeding water volume per set: 500-900L
Economic Vacuum Tube Solar Collector Horizontal Mounted 50 Collector Tubes / Set
Economic Vacuum Tube Solar Collector Horizontal Mounted 50 Collector Tubes / Set
Regular models specification
Model/Capacity 25 50 100 150 200
Vacuum tube Φ58*1800 high efficiency collector vacuum tubes
Vacuum tubes quantity 25PCS 50PCS 100PCS 150PCS 200PCS
Mounted direction Vertical Horizontal
Installation size
need for ground		 2X1.65 3.8X1.85 3.8X4.2 3.8X6.2 3.8X8.2
Manifold inside material SUS304 2B / 316L (Optional)
Manifold Outer cover Stainless steel / Colorful painted steel
Insulation High density polyurethane foam (Non-CFC)
Ground stand All stainless steel stand
Specification of vacuum tube
Structure All-glass double-tube co-axial structure
Glass Material High borosilicate glass 3.3
External Pipe Diameter & Thickness Ø=58±0.7mm&=1.6mm,
Internal Pipe Diameter & Thickness Ø=47±0.7mm &=1.6mm,
Pipe Length 1800mm
Coating Layers Cu/SS-ALN (H)/SS-ALN (L)/ALN
Coating Method Three target magnetron sputtering plation
Specific Absorption as=0.93~0.96(AM1.5)
Emission Ratio Σh=0.04~0.06(80°C±5°C)
Vacuum Tightness P≤5.0×10-3Pa
Idle Sunning Property Parameters Y= 260 ~ 300m². °C/KW
Solar Radiation for Obtaining a H≤3.7 MJ/ m²(Ø47), H=2.9~3.2 MJ/ m²;
Preset Water Temperature H≤4.7 MJ/ m²(Ø58), H=3.7~4.2 MJ/ m².
Average Heat Loss Coefficient ULT=0.4~0.6W/ (m². °C)

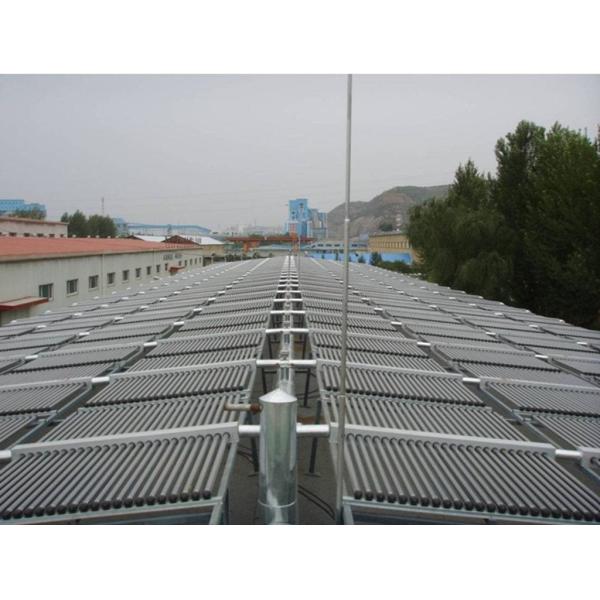

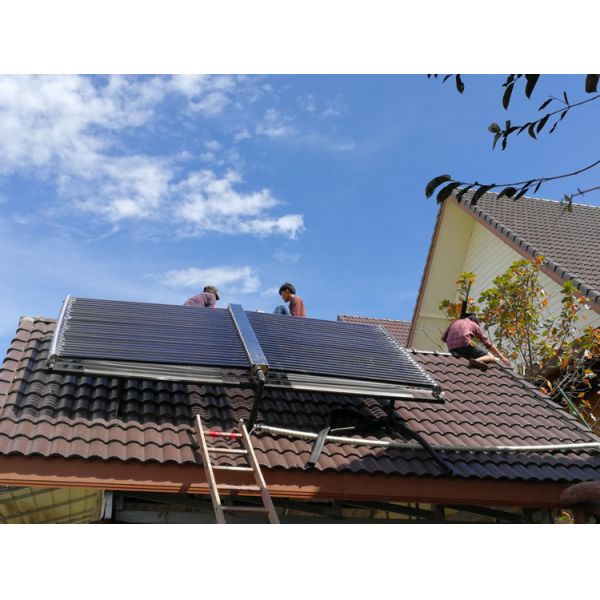

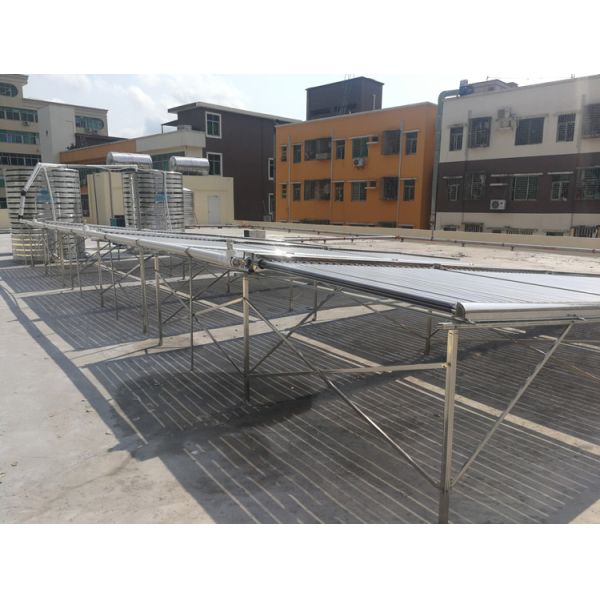

Successful Applications:

Economic Vacuum Tube Solar Collector Horizontal Mounted 50 Collector Tubes / Set

Economic Vacuum Tube Solar Collector Horizontal Mounted 50 Collector Tubes / SetEconomic Vacuum Tube Solar Collector Horizontal Mounted 50 Collector Tubes / Set
