School Inverter Air Source Heat Pump , 3800 VAC Air Energy Heat Pumps
School Inverter Air Source Heat Pump , 3800 VAC Air Energy Heat Pumps
Specifications
Brand Name :
SolarShine/OEM
Model Number :
3-10HP
Housing material :
Plastic,galvanized sheet
Storage / tankless :
Circulation heating
Installation :
Freestanding,Wall Mounted/Freestanding
Use :
Bathroom,Swimming Pool Heater,Hotel,School,Space Heating
Heating capacity :
35-100KW
Compressor :
Copeland,Copeland scroll compressor
Voltage :
220V~Inverter,3800VAC/50Hz
Function :
house heating,Space Heating & Hot Water,Pool Water Heating,cooling and DHW
Cop :
4.10~4.13
Evaporator :
Gold Hydrophilic Aluminum Fin
Compressor type :
Copeland scroll Compressor
Color :
White,Grey
Description

The unit adopts high-quality components and exquisite manufacturing technology, with a comprehensive energy efficiency ratio of up to 400%. Compared with the traditional energy system, the use of heat pump water heating system can greatly save costs. Unit power from 10 to 30 HP, can meet the needs of different sizes of hot water system in an all-round way.

High-efficiency, Up to 75% energy saving, compared with conventional water heaters such as gas/oil boilers and electricity resistance water heaters

Economical,less running cost, only consume a little energy for the compressor working.

Eco-friendly,no exhaust gas,no waste water drain to harm environments.

Powder coated steel plate cabinet ( stainless steel cabinet available)

24 hours timer clock. No human attendance is required once unit is started

Maximum water temperature: 60C

Strong defrosting function and able to work reliably at ambient air temperature of -20C

Easier installation and requires much less installation space.

Designed for commercial applications(such as hotels, hospitals and college/factory residences) hot water heating

Specification data of heat pump unit
Model KDR-10-G KDR-15 KDR-20 KDR-25 KDR-30
Input Hp 10HP 15HP 20HP 25HP 30HP
Voltage 380V 380V 380V 380V 380V
Input power(KW) 5.5 13 18.5 20.5 25.6
Heating power(KW) 35.4 52 71.2 78.9 104
Connection size DN32 DN40 DN50 DN50 DN65
Water circulation rate(M³/H) 7-10 12-15 15-20 20-25 25-28
Refrigerant gas R22/R410A/R407C/R417A
Dimenstion L(MM) 1450 1505 1700 1995 2300
W(MM) 705 905 1095 905 1100
H(MM) 1065 1570 1700 1900 2080
Weight(kg) 280 350 480 580 630

* The heating capacity and COP data is refer to testing lab under standard condition of ambient dry-bulb temperature 20℃, wet-bulb temperature 15℃, heating water from 15℃ to 55℃. COP is not a fixed value, but a dynamic data according to different climate and working condition.

School Inverter Air Source Heat Pump , 3800 VAC Air Energy Heat Pumps

School Inverter Air Source Heat Pump , 3800 VAC Air Energy Heat Pumps

School Inverter Air Source Heat Pump , 3800 VAC Air Energy Heat Pumps

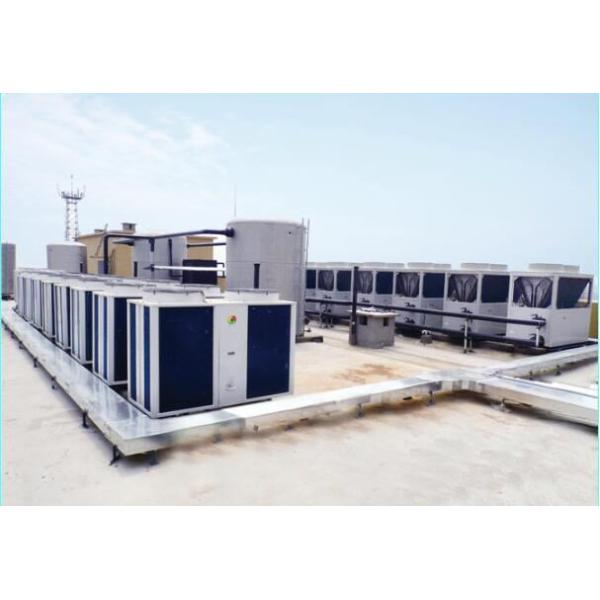

Successful applications:

School Inverter Air Source Heat Pump , 3800 VAC Air Energy Heat Pumps
