Low noise.
Simple installation
Long lifespan
Low operating cost
less emissions than an oil boiler
Designed and built especially for FAMILY sanitary hot water
Suitable for hot water in operation throughout the year
Application :
1. Domestic hot water
2. Project hot water
3. Ground Heating and radiator
4. Central Cooling and heating
5. Suitable for family,hotel, barbers, beauty shop, school, hospital
Air source heat pump water is a green energy product, which is based on Inverse Carnot Principle, it is powered by compressor with about 25% energy consumption , and obtains other 75% heat energy from the air from the process of refrigrant evaporation, so its working efficiecny can maximum reach more than 400%, saving 70% energy consumption comparing with traditional electric heater.
This product is very suitable for warm climate regions such as south-east Asia, South of China, mid east, etc.
Specification details and price quotation | ||||||||
Product type | Water circulation type air source heat pump water heater (Pressurized) | |||||||
MODEL | S-150L-1HP | S-200L-1HP | S-250L-1.5HP | S-300L-1.5HP | S-400L-2HP | S-500L-2HP | ||
Water Tank | Water Tank Volume | 150 Liters | 200 Liters | 250 Lit res | 300 Lit res | 400 Lit res | 500 Lit res | |
Water Tank Size(MM) | Φ470*1545 | Φ520*1545 | Φ560*1625 | Φ560*1915 | Φ700*1625 | Φ700*1915 | ||
Water Tank outer cover | Colorful shining steel(with anti-corrosive surface treatment, white / golden / Silver available) | |||||||
Water Tank inner cylinder and wall thickness | SUS304/1.0mm | SUS304/1.2mm | SUS304/1.5mm | SUS304/1.5mm | SUS304/1.5mm | SUS304/1.5mm | ||
Heat Exchanger | N/A | |||||||
Insulation | 50mm high density polyurethane | |||||||
Rated Working Pressure | 0.6Mpa | |||||||
Heat Pump Main Unit | Main unit power (HP) | 1Hp | 1Hp | 1.5Hp | 1.5Hp | 2Hp | 2Hp | |
Power consumption | 1KW | 1KW | 1.32KW | 1.32KW | 1.32KW | 1.67KW | ||
Nominal Heating capacity | 3.5KW | 3.5KW | 4.73KW | 4.73KW | 4.73KW | 6.5KW | ||
Fluid pressure reduce and adjustment device | Electronic Expansion Valve | |||||||
Ext. Dimension(mm) | 756 x 260 x 450 | 920 x 280 x 490 | ||||||
Power Supply | AC220V/50hz | |||||||
Refrigerant | R410A/R407C (new environmental refrigerant) | |||||||
20’container loading quantity | 60 sets | 40 sets | 38 sets | 32 sets | 25 sets | 20 sets | ||
Remarks: 1. Above prices are based on FOB + minimum order quantity of 1x20GP full container, final price will be modified if order quantity changed more or less. 2. Since USD exchange rate changes often, final price maybe modified according to actual exchange rate of the order confirmation date. |

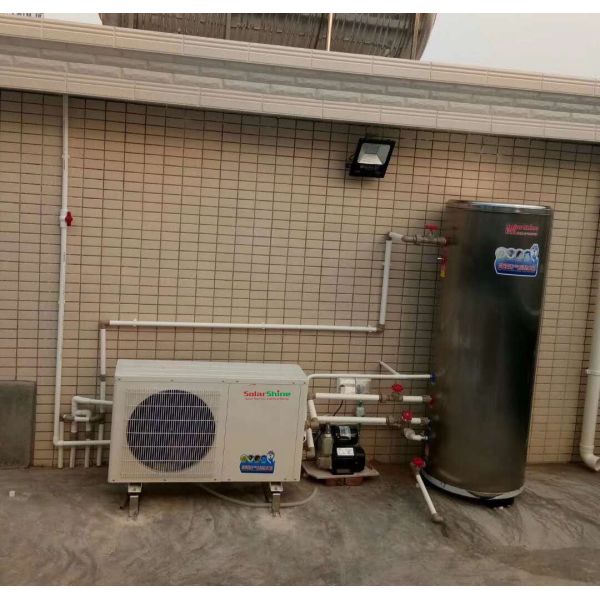

Successful Applications:
