Black / White Solar Hybrid Water Heater 22 MM Connection Type Easy Installation
Black / White Solar Hybrid Water Heater 22 MM Connection Type Easy Installation
Specifications
Brand Name :
SolarShine/OEM/ODM
Model Number :
ECO/PLUS-20T-36T
Certification :
GB
Place of Origin :
China
MOQ :
5 SETS
Supply Ability :
300 SETS per month
Packaging Details :
Export packing
Capacity :
155-310L
Housing material :
Stainless Steel,galvanized steel,color steel,Aluminum Alloy,Plastic
Circulation type :
directed thermosyphon
Installation :
Flat roof bracket/Declining roof bracket
Type :
Flat-Plate,Pressurized
Connection type :
22MM
Collector area :
2M2, 2.4M2, 4M2, 4.8M2
Collector frame color :
black, white
Tank material :
stainless steel
Support bracket :
Stainless steel
Controller :
Intelligent automatic controler
Absorber :
selective coating
Heat pump type :
Water direct circulation
Working pressure :
0.6Mpa
Circulation pipe :
PEX pipe with insulation
Circulation way :
Thermosyphon automatic
Heat insulation of tank :
high density polyurethane（non-CFC）
Automatic shift to heat pump :
Yes at cloudy or rainny day
Description

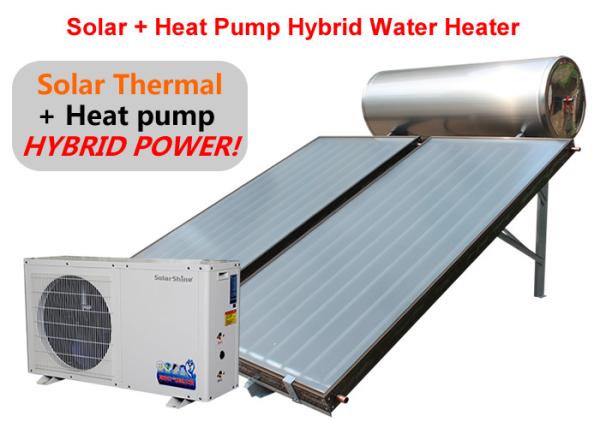

SOLAR + HEAT PUMP HYBRID WATER HEATING SYSTEM
(Vacuum Tubes Non-pressurized Type)


The most effective and safe water heating system...
Get free hot water in sunny days.
Use heat pump in rainy days, save 75% heating cost....
The most effective and safe water heating system...

Product introductions:
Solar thermal + heat pump water heating system offer the most effective way of water heating, as in rainy or cloudy days, traditional solar water heater can not produce enough hot water by the sun and must need to use electric heater to heat the water, as we all know what electric heater’s efficiency is maximum 90%, if we need enough hot water in rainy days, electric heater will waste too much electric power and it is not safety to use electric heater.
For the air source heat pump, its efficiency can reach 400% so it is an green energy source, and it is very safety, now we use heat pump replace to electric heater to make SOLAR THERMAL+HEAT PUPM HYBRID SYSTEM, this new type of water heater can save 75% heating cost in rainy or cloudy days than electric heater.

SPECIFICATION DATA

SERIESECO Series
MODELHY-V-ECO-20T-1HY-V-ECO-24T-1HY-V-ECO-30T-1.5HY-V-ECO-36T-1.5
Tank Capacity155L185L230L275L
Vacuum tube quantity20PCS24PCS30PCS36PCS
Solar vacuum tubeø58 x 1800mm/ high efficiency solar evacuated Tube,
Inner tank materialSUS304 2B food-grade stainless steel / wall thickness =0.41mm
Outer tank materialSUS304 2B food-grade stainless steel / wall thickness =0.31mm
Water Tank ext sizeø450x1625mmø450x1925mmø450x2375mmø450x2825mm
Insulation / thicknessHigh-density polyurethane foaming/45mm
Frame material201# Stainless steel frame/ 30 x 60mm / 38o mounting degree
Heat Pump TypeAir source heat pump (Water Pump Circulation Type)
Heat pump operate power1KW/1Hp1KW/1Hp1.32KW/1.5Hp1.32KW/1.5Hp
Heat pump heating power3.5KW3.5KW4.73KW4.73KW
20’ container quantity30 sets27 sets23 sets21 sets
SERIESPLUS Series
MODELHY-V-PlUS-20T-1HY-V-PLUS-24T-1HY-V--PLUS-30T-1.5HY-V-PLUS-36T-1.5
Tank Capacity173L205L260L310L
Vacuum tube quantity20PCS24PCS30PCS36PCS
Solar vacuum tubeø58 x 1800mm/ high efficiency solar evacuated Tube,
Inner tank materialSUS304 2B food-grade stainless steel / wall thickness =0.41mm
Outer tank materialSUS304 2B food-grade stainless steel / wall thickness =0.31mm
Water Tank ext sizeø500x1625mmø500x1925mmø500x2375mmø500x2825mm
Insulation / thicknessHigh-density polyurethane foaming/60mm
Frame materialAluminum alloy / 100CM width / 38o mounting degree
Heat Pump TypeAir source heat pump (Water Pump Circulation Type)
Heat pump operate power1KW/1Hp1.32KW/1.5Hp1.32KW/1.5Hp1.32KW/1.5Hp
Heat pump heating power3.5KW4.73KW4.73KW4.73KW
20’ container quantity30 sets26 sets22 sets20 sets
