Medium Size Air Source Heat Pump Unit Shell Heat Exchanger 15.5kw Input Power
Medium Size Air Source Heat Pump Unit Shell Heat Exchanger 15.5kw Input Power
Specifications
Brand Name :
SolarShine/OEM
Model Number :
3-10HP
Type :
Air Source Heat Pump
Storage / tankless :
Circulation heating
Heating capacity :
4.5-20KW
Refrigerant :
R410a/ R417a/ R407c/ R22/ R134a
Compressor :
Copeland,Copeland scroll compressor
Voltage :
220V~Inverter,3800VAC/50Hz
Power supply :
50/ 60Hz
Function :
house heating,Space Heating & Hot Water,Pool Water Heating,cooling and DHW
Cop :
4.10~4.13
Heat exchanger :
Shell Heat Exchanger
Evaporator :
Gold Hydrophilic Aluminum Fin
Working ambient temperature :
Minus 5C- 45C
Compressor type :
Copeland scroll Compressor
Color :
White,Grey
Description

WP Series air source heat pump unit for residential applications

SolarShine’s heat pump units are equipped by high standard and high quality components, which assure very high COP output and long-term service life.

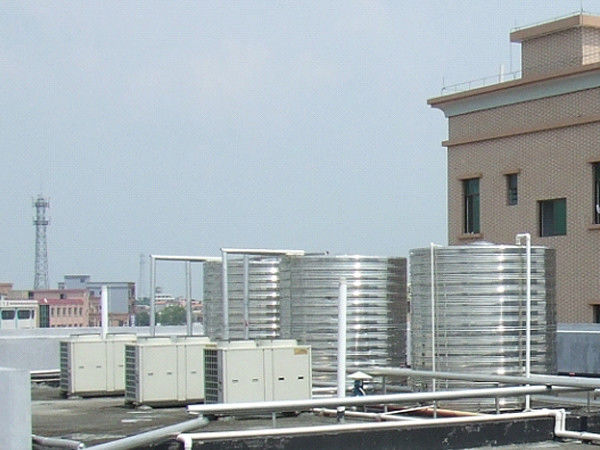

WP series heat pump ranges from 3Hp-10Hp, with internal heat exchanger and water circulation design, suitable for large scale commercial water heating systems for hotel room, school dormitory, factory dormitory, hospital, etc.

SPEFICIATION DETAILS
Product type WP series commercial heat pump main unit
Model WP-S3.0 WP-S5.0 WP-S6.5 WP-S10

Total

Power consumption

 2.8KW 1.32KW 1.8KW 2.2W
Compressor Power consumption 2.71KW 4.36KW 5.75KW 8.72KW
Nominal Heating capacity 10.2KW 16.48KW 21.5KW 32.6KW
COP of compressor (W/W) 3.76 3.78 3.74 3.74

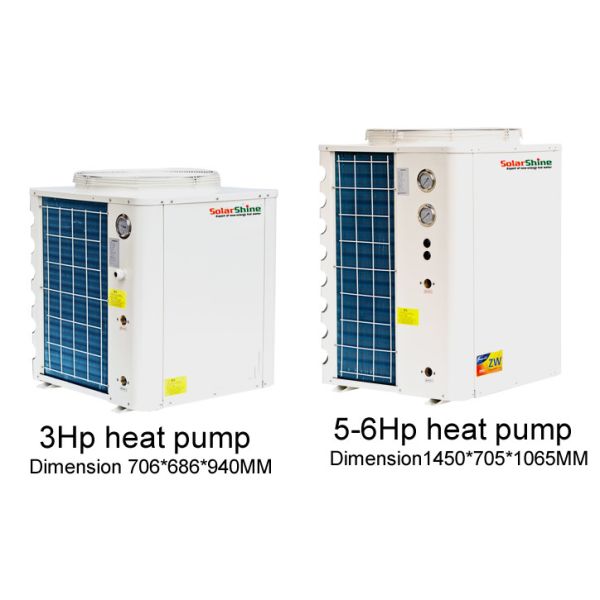

Ext. Dimension(mm) 695x655x740 706x686x940 1450x705x1065
Circulation pump External pump not included
Power supply 220V/50hz 380V/3N
Operation ambient Temperature 0-45℃
Compressor brand/Type HIGHLY /Rotary Emerson Copeland / scroll
Refrigerant R410A
Connection size DN25/ G1'' DN40/ G1.5''

Loading Quantity of

1x20’ container

 60sets 40sets 40sets 16sets

* The heating capacity and COP data is refer to testing lab under standard condition of ambient dry-bulb temperature 20℃, wet-bulb temperature 15℃, heating water from 15℃ to 55℃. COP is not a fixed value, but a dynamic data according to different climate and working condition.

Medium Size Air Source Heat Pump Unit Shell Heat Exchanger 15.5kw Input Power

Medium Size Air Source Heat Pump Unit Shell Heat Exchanger 15.5kw Input Power

Medium Size Air Source Heat Pump Unit Shell Heat Exchanger 15.5kw Input PowerMedium Size Air Source Heat Pump Unit Shell Heat Exchanger 15.5kw Input Power

Medium Size Air Source Heat Pump Unit Shell Heat Exchanger 15.5kw Input Power
