Safety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water Systems
Safety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water Systems
Specifications
Brand Name :
SolarShine/OEM/ODM
Model Number :
TH150-320L
Certification :
GB
Place of Origin :
China
MOQ :
5 SETS
Supply Ability :
300 SETS per month
Packaging Details :
Export packing
Circulation type :
directed thermosyphon
Installation :
Flat roof bracket/Declining roof bracket
Type :
Flat-Plate,Pressurized
Connection type :
22MM
Collector area :
2M2, 2.4M2, 4M2, 4.8M2
Collector frame color :
black, white
Tank material :
stainless steel
Support bracket :
Stainless steel
Controller :
Intelligent automatic controler
Absorber :
selective coating
Backup heater :
1.5-3KW
Working pressure :
0.6Mpa
Circulation pipe :
PEX pipe with insulation
Description

It doesn't need any pump for a normal-working system, so it is very stable and reliable, easy at installation and maintenance.

All systems equipped with high- efficiency solar collectors, pressurized water tanks, and accessories pack for easy installation.

Features:

- System capacity available: /150L / 250L / 300L.
- Both of Inner and outer cover of tank is made of SUS304 high-grade stainless steel.
- Strong mounting frame for flat roof or pitch roof mounting.

- Easy installation and maintenance.

- Full automatic controller.

- Automatic start / stop the auxiliary electric heater under preset timing and temperature level.

- With Back up electric heater, ensure adequate hot water supplying at rainy or cloudy days.

SolarShine compact type thermosyphon solar water heater, based on flat plate solar collectors, provide a very simple way to obtain energy from the sun, the system is combined by high efficiency flat plate solar collectors, pressurized water storage tank, mounting bracket, back-up electric heater and intelligent automatic controller.

SPECIFICATION AND PRICE QUOTATION:

1. ECO Series, suitable for hot climate regions and lower-cost budget.

PART Model TH-150-A2.0 TH-250-A4.0 TH-300-A4.0
  • Storage

Tank

 Capacity 150 Liters 250 Liters 300 Liters
Ext. Size(mm) Φ470x 1545 Φ560 x 1625 Φ560 x 1925
Inner material

SUS304 2B

1.2mm

SUS304 2B

1.5mm

SUS304 2B

1.5mm
Tank out cover material SUS304 2B/1.0mm
Insulation High density polyurethane
Tank out cover material SUS304 2B
2.Solar Collector Collector Model* A-2.0-78
Collector Size(mm) 2000x1000x78
Collector quantity 1 x 2.0M2 2 x 2M2 2 x 2M2
Total Collector Area 2.4M2 4M2 4 M2
3.Controller YN388 Full automatic intelligent system controller * 1ET
  • Mounting bracket
 Stainless steel mounting bracket * 1SET
  • Auxiliary Electric Heater
 1.5KW 2KW 3KW
  • Fitting and pipe
 Brass fitting / Valve / PEX circulation pipe * 1set
20’ container loading quantity 40 Sets 30 Sets 25 Sets

Safety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water Systems

Safety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water SystemsSafety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water SystemsSafety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water Systems

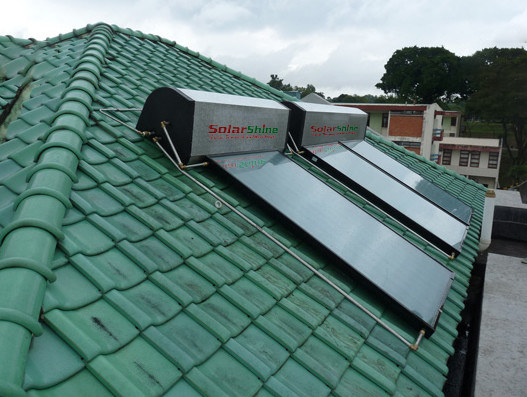

Successful applications:

Safety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water SystemsSafety Flat Plate Solar Water Heater , Flat Panel Solar Hot Water Systems
