Directed Circulation Residential Heat Pump Water Heater Solar Water Heating System
Directed Circulation Residential Heat Pump Water Heater Solar Water Heating System
Directed Circulation Residential Heat Pump Water Heater Solar Water Heating System
Directed Circulation Residential Heat Pump Water Heater Solar Water Heating System
Specifications
Installation :
Freestanding,roof mounted
Housing material :
Stainless Steel
Circulation type :
directed thermosyphon
Application :
Water Heater,Hot Water
Product name :
flat plat pressurized solar water heater
Frame :
Galvanized steel
Description

Easy installation and maintenance.
Full automatic temperature differential control system.
Automatic start / stop auxiliary electric heater under preset timing and temperature level.
With electric heater in water tank, ensure adequate hot water supplying at cloudy or rainy days.

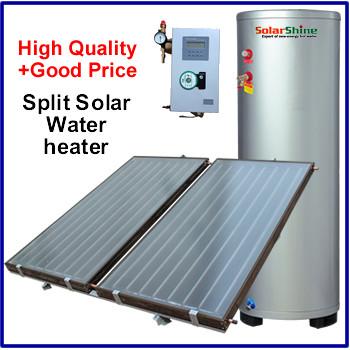

SOLARSHINE split systems provide an effective way to get hot water from the sun. Equipped with high-efficiency collectors, intelligent system controller or working station, and pressurized water tanks, our split systems are always smart choices for harvesting hot water from the sun and saving our heating cost.

Features:

·System capacity available: 150L/200L /250L/300L/400L.

·Equipped with pressurized water storage tanks (cylinders) with elegant and safe design.
·Water tank inner is made of SUS304 high grade stainless steel.

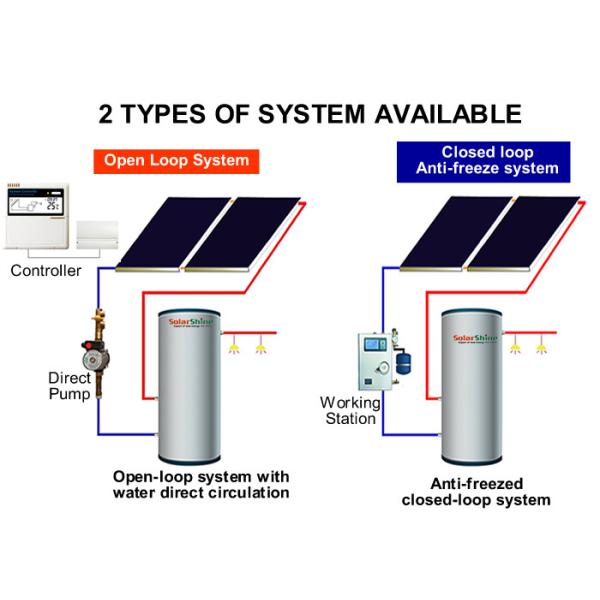

·Open loop or closed loop (anti-freeze) systems available for different climates and water quality.


· Strong mounting support,

Directed Circulation Residential Heat Pump Water Heater Solar Water Heating System

Directed Circulation Residential Heat Pump Water Heater Solar Water Heating System

SPECIFICATION

Open Loop directed circulation system:

PART Model OS-150-A2.0 OS-250-A4.0 OS-300-A4.0 OS-400-A6.0
  • Storage

Tank

 Capacity 150 Liters 250 Liters 300 Liters 400 Liters
Ext. Size(mm) Φ470x 1545 Φ560 x 1625 Φ560 x 1925 Φ700 x 1625
Inner material

SUS304 2B

1.2mm

SUS304 2B

1.5mm

SUS304 2B

1.5mm

SUS304 2B

1.8mm
Tank out cover material White color anti-rust painting
Insulation High density polyurethane
2.Solar Collector Collector Model* A-2.0-78 (specification detail see data sheet by another document)
Collector Size(mm) 2000x1000x78
Collector quantity 1 x 2.0M2 2 x 2M2 2 x 2M2 3 x 2M2
Total Collector Area 2.0M2 4M2 4 M2 6 M2
3.Controller HLC-588 Full automatic intelligent system controller
Circulation pump Greenpro RS15/7 pipe circulation pump
  • Mounting bracket
 Stainless steel mounting bracket
  • Auxiliary Electric Heater
 1.5KW 2KW 3KW 3KW
  • Fitting and pipe
 Brass fitting / Valve / PEX circulation pipe

FAQ

Are you heat pump supplier of trading company or manufacturer ?

We are R&D and manufacturer factory

How long is your Heat Pump delivery time?

Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.

What’s the warranty?

2 Months to 2 years, even longer time for partners to achieve long-term cooperation according to the term and item we come to deal.

OEM or ODM acceptable?

Yes, warmly welcome that our will specially organize a team to serve the case according to your idea on unit ID, pipe and accessories construction, etc.
