Stable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water Heater
Stable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water Heater
Specifications
Brand Name :
SolarShine/OEM/ODM
Model Number :
TH150-320L
Certification :
GB
Place of Origin :
China
MOQ :
5 SETS
Supply Ability :
300 SETS per month
Packaging Details :
Export packing
Capacity :
150L 260L 320L
Housing material :
Stainless Steel,galvanized steel,color steel,Aluminum Alloy,Plastic
Circulation type :
directed thermosyphon
Installation :
Flat roof bracket/Declining roof bracket
Type :
Flat-Plate,Pressurized
Connection type :
22MM
Collector area :
2M2, 2.4M2, 4M2, 4.8M2
Collector frame color :
black, white
Tank material :
stainless steel
Support bracket :
Stainless steel
Controller :
Intelligent automatic controler
Absorber :
selective coating
Backup heater :
1.5-3KW
Working pressure :
0.6Mpa
Circulation pipe :
PEX pipe with insulation
Circulation way :
Thermosyphon automatic
Heat insulation of tank :
high density polyurethane（non-CFC）
Description

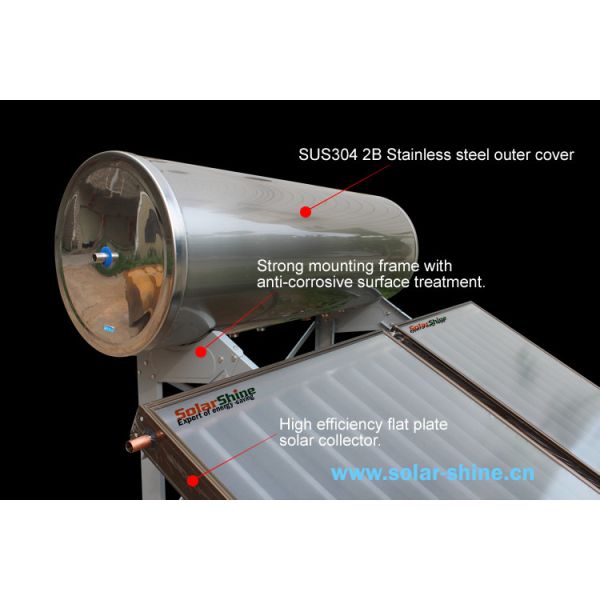

SolarShine compact type thermosyphon solar water heater, based on flat plate solar collectors, provide a very simple way to obtain energy from the sun, the system is combined by high efficiency flat plate solar collectors, pressurized water storage tank, mounting bracket, back-up electric heater and intelligent automatic controller.

It doesn't need any pump for a normal-working system, so it is very stable and reliable, easy at installation and maintenance.


All systems equipped with high- efficiency solar collectors, pressurized water tanks, and accessories pack for easy installation.

Features:

- System capacity available: /150L / 250L / 300L.
- Both of Inner and outer cover of tank is made of SUS304 high-grade stainless steel.
- Strong mounting frame for flat roof or pitch roof mounting.

- Easy installation and maintenance.

- Full automatic controller.

- Automatic start / stop the auxiliary electric heater under preset timing and temperature level.
- With Back up electric heater, ensure adequate hot water supplying at rainy or cloudy days.

Stable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water Heater

Stable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water HeaterStable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water HeaterStable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water Heater

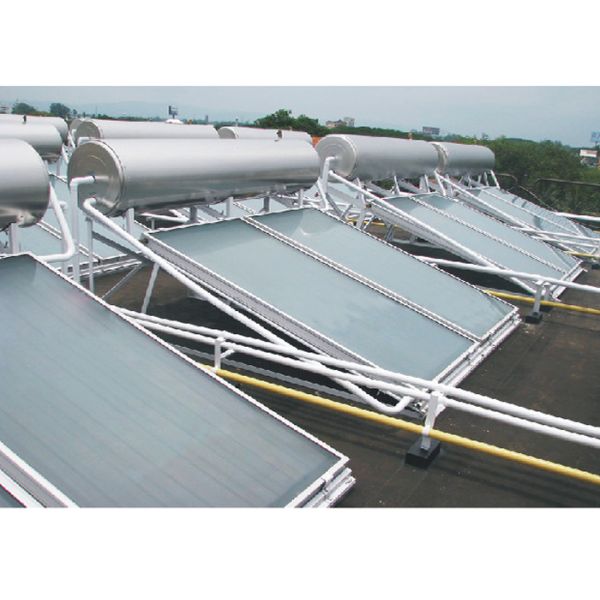

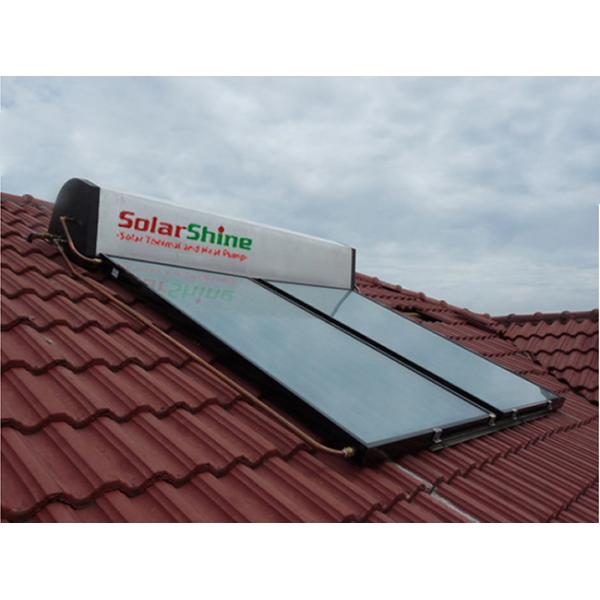

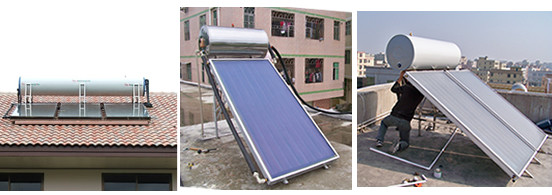

Successful applications:

Stable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water Heater

Stable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water HeaterStable Flat Plate Solar Water Heater , 0.6Mpa Compact Solar Water Heater
