Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color
Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color
Specifications
MOQ :
5PCS
Pipe material :
Copper
Type :
Flat Panel
Application :
Solar Thermal,Water Heater,pool heater
Material :
Aluminum Alloy,Copper Pipe,Aluminum plate,3.3 high borosilicate Glass
Installation :
Wall Mounted,can be mounted on any roof
Color :
BLACK
Absorptivity :
≥94%
Size :
1mx2m
Usage :
Home bathing,swimming pool,solar water heating project,Heat Water,industrial project
Cover material :
Low-iron tempered glass gyrosigma
Max. working pressure :
1.0Mpa
Description

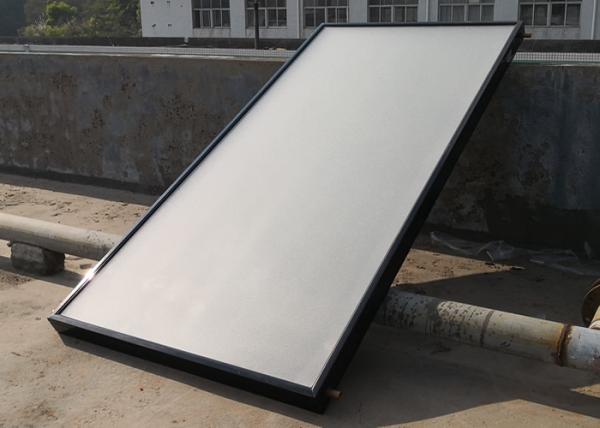

flat plate solar collector panel for solar thermal powered water heater

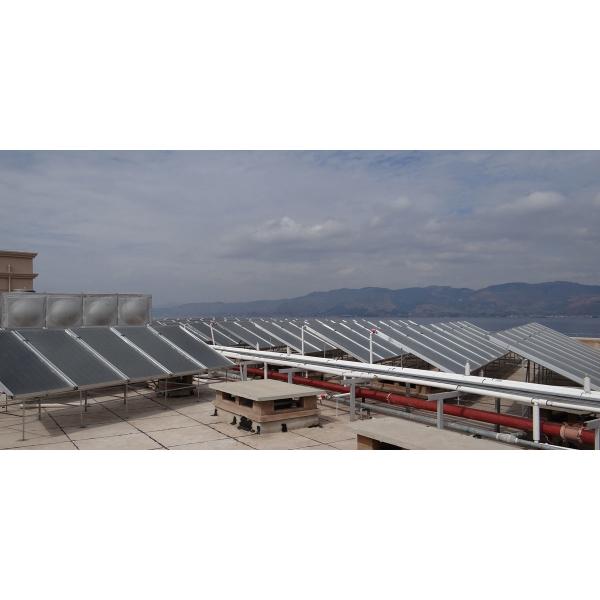

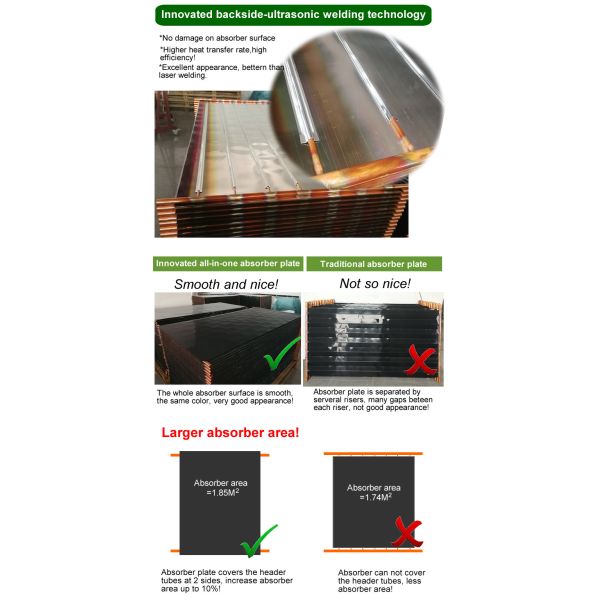

A-Series flat plate solar thermal collector is a cost-effective model for any solar water heating system, apply with innovated all-in-one absorber plate+ backside ultrasonic welding technology. The absorber is selective black oxidation coating. A-Series flat plate solar collector is design for large central solar water heating projects and residential solar water heater in warm-climate regions, and the regions with sufficient solar radiation, such as South East Asia, Africa, south of China, etc.

Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color

Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color

Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color

Portable Solar Thermal Flat Plate Collectors Copper Pipe Material Black Color

SERIES A - Series solar collector
Model Number A-2.0-78
Ext. Dimension 2000 x 1000 x 78MM
Gross / Aperture area 2.0 / 1.83 (M2)
Absorber Coating Selective anodize oxidation coating
Optical Performance
of absorber coating		 Absorption: >95% Emission: <16%

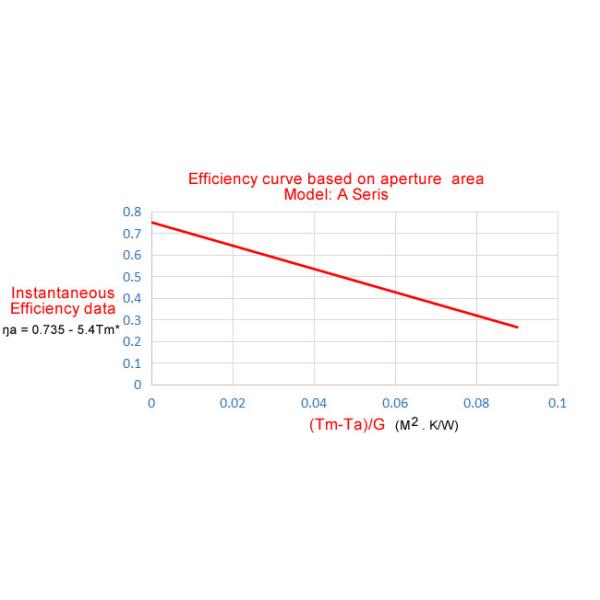

Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.75 - 5.4Tm*

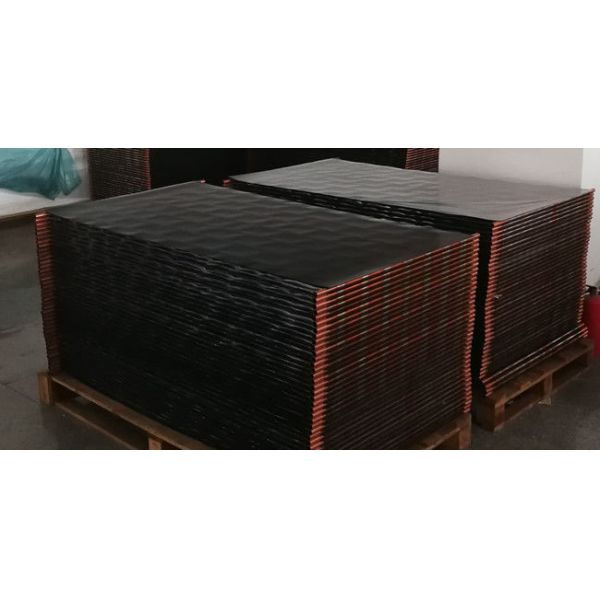

Absorber Material All in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser tubes quantity 7PCS
Header Ø22 / L1060 /δ0.6mm
Inside Fluid Capacity 1.6L
Frame and Wall Thickness Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity		 25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k

Back Sheet

(Optional)

 δ0.4mm galvanized plate/aluminum plate
Glass Cover

3.2mm tempered, low-iron patterned solar glass,

transitivity >/= 92%
Sealing Profile EPDM
Tested/Rated pressure 1.2Mpa/0.6Mpa
Net. Weight (empty) 31.5kg
Container Loading Qty
(20GP/40GP/40HQ)		 165 / 340 / 360(PCS)
