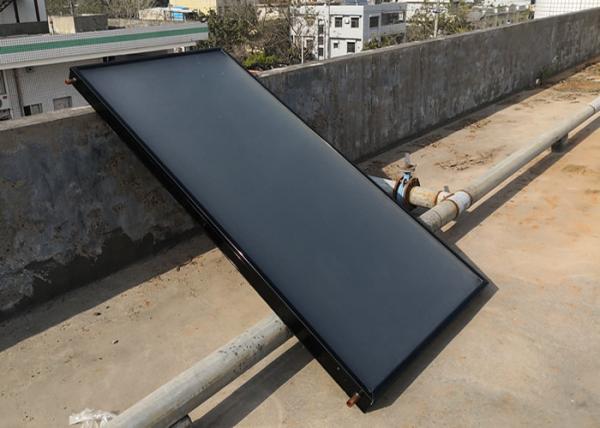

High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater
High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater
High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater
High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater
Specifications
MOQ :
5PCS
Pipe material :
Copper
Type :
Flat Panel
Application :
Solar Thermal,Water Heater,pool heater
Product name :
Flat Plate Solar Collector
Material :
Aluminum Alloy,Copper Pipe,Aluminum plate,3.3 high borosilicate Glass
Installation :
Wall Mounted,Freestanding,can be mounted on any roof
Color :
BLACK
Absorptivity :
95%±2%
Emissivity :
≤6%
Warranty :
5 Years
Absorber coating :
Highly selective vacuum coating
Size :
1mx2m
Usage :
Home bathing,swimming pool,solar water heating project,Heat Water,industrial project
Cover material :
Low-iron tempered glass gyrosigma
Stagnation temperature :
180℃ plus ambient temperature
Max. working pressure :
1.0Mpa
Description

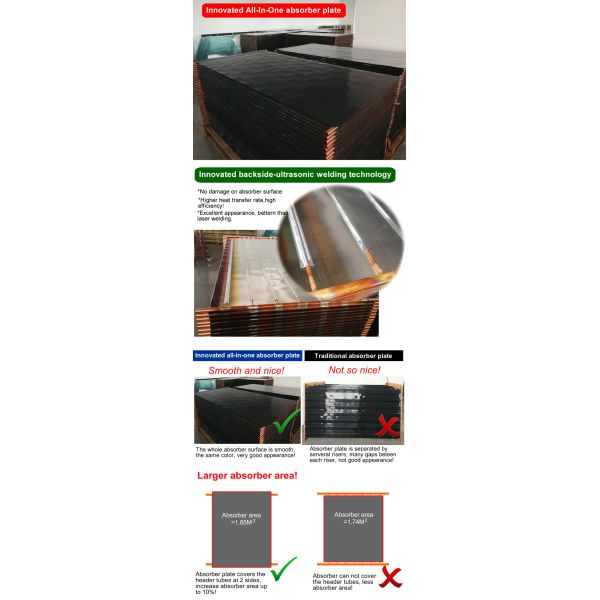

SolarShine A-Series flat plate collector is a very cost-effective model for any solar water heating system, apply with innovated all-in-one absorber plate+ backside ultrasonic welding technology.

A-Series flat plate solar collector is design for large central solar water heating projects and residential solar water heater in warm-climate regions with sufficient solar radiation, such as South East Asia, Africa, south of China, etc.


High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater

High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater

High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater

SERIES A - Series
Model Number A-2.0-78
Ext. Dimension(mm) 2000 x 1000 x 78
Gross / Aperture area 2.0 / 1.83 (M2)
Absorber Coating Selective anodize oxidation coating
Optical Performance
of absorber coating		 Absorption: >95% Emission: <16%
Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.75 - 5.4Tm*
Absorber Material All in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser quantity 7PCS
Header Manifold Ø22 / L1060 /δ0.6mm
Fluid Capacity 1.6L
Frame Casing/
Wall Thickness		 Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity		 25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k
Back Sheet δ0.4mm galvanized plate
Glass Cover

3.2mm tempered, low-iron patterned solar glass,

transitivity >/= 92%
Sealing Profile EPDM rubber stripe
Tested/Rated pressure 1.2Mpa/0.6Mpa
Net. Weight (empty) 31.5kg
Container Loading Qty
(20GP/40GP/40HQ)		 165 / 340 / 360(PCS)

High Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water HeaterHigh Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water HeaterHigh Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water HeaterHigh Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water HeaterHigh Efficiency Liquid Flat Plate Solar Collector For Diy Solar Water Heater
