Stainless Steel Rooftop Solar Water Heater High Density Polyurethane
Stainless Steel Rooftop Solar Water Heater High Density Polyurethane
Specifications
Brand Name :
SolarShine/OEM/ODM
Model Number :
TH150-320L
Certification :
GB
Place of Origin :
China
MOQ :
5 SETS
Supply Ability :
300 SETS per month
Packaging Details :
Export packing
Circulation type :
directed thermosyphon
Type :
Flat-Plate,Pressurized
Connection type :
22MM
Collector area :
2M2, 2.4M2, 4M2, 4.8M2
Collector frame color :
black, white
Tank material :
stainless steel
Support bracket :
Stainless steel
Controller :
Intelligent automatic controler
Absorber :
selective coating
Backup heater :
1.5-3KW
Working pressure :
0.6Mpa
Circulation pipe :
PEX pipe with insulation
Description

Application :

1. Domestic hot water

2. Project hot water

3. Ground Heating and radiator

4. Central Cooling and heating

5. Suitable for family,hotel, barbers, beauty shop, school, hospital

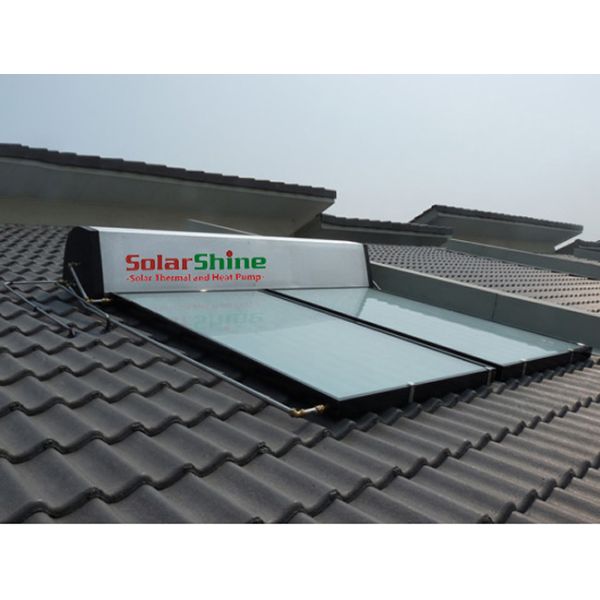

SolarShine compact type thermosyphon solar water heater, based on flat plate solar collectors, provide a very simple way to obtain energy from the sun, the system is combined by high efficiency flat plate solar collectors, pressurized water storage tank, mounting bracket, back-up electric heater and intelligent automatic controller.

Features:

- System capacity available: /150L / 250L / 300L.
- Both of Inner and outer cover of tank is made of SUS304 high-grade stainless steel.
- Strong mounting frame for flat roof or pitch roof mounting.

- Easy installation and maintenance.

- Full automatic controller.

- Automatic start / stop the auxiliary electric heater under preset timing and temperature level.
- With Back up electric heater, ensure adequate hot water supplying at rainy or cloudy days.

SPECIFICATION AND PRICE QUOTATION:

1. ECO Series, suitable for hot climate regions and lower-cost budget.

PART Model TH-150-A2.0 TH-250-A4.0 TH-300-A4.0
  • Storage

Tank

 Capacity 150 Liters 250 Liters 300 Liters
Ext. Size(mm) Φ470x 1545 Φ560 x 1625 Φ560 x 1925
Inner material

SUS304 2B

1.2mm

SUS304 2B

1.5mm

SUS304 2B

1.5mm
Tank out cover material SUS304 2B/1.0mm
Insulation High density polyurethane
Tank out cover material SUS304 2B
2.Solar Collector Collector Model* A-2.0-78
Collector Size(mm) 2000x1000x78
Collector quantity 1 x 2.0M2 2 x 2M2 2 x 2M2
Total Collector Area 2.4M2 4M2 4 M2
3.Controller YN388 Full automatic intelligent system controller * 1ET
  • Mounting bracket
 Stainless steel mounting bracket * 1SET
  • Auxiliary Electric Heater
 1.5KW 2KW 3KW
  • Fitting and pipe
 Brass fitting / Valve / PEX circulation pipe * 1set
20’ container loading quantity 40 Sets 30 Sets 25 Sets

Stainless Steel Rooftop Solar Water Heater High Density Polyurethane

Stainless Steel Rooftop Solar Water Heater High Density PolyurethaneStainless Steel Rooftop Solar Water Heater High Density PolyurethaneStainless Steel Rooftop Solar Water Heater High Density Polyurethane

Successful applications:

Stainless Steel Rooftop Solar Water Heater High Density PolyurethaneStainless Steel Rooftop Solar Water Heater High Density Polyurethane
