Solar Power Flat Plate Solar Collector 1m X 2m High Density Polyurethane Insulation
Solar Power Flat Plate Solar Collector 1m X 2m High Density Polyurethane Insulation
Specifications
Brand Name :
SolarShine/OEM/ODM
Model Number :
A-C-E Series 2M2
Certification :
EN12975 GB
Place of Origin :
China
MOQ :
10 PCS
Pipe material :
Copper
Type :
Flat Panel,Pressurized,Solar Water Heater Parts,Flat Plate
Application :
Solar Thermal,Water Heater,pool heater
Product name :
Flat Plate Solar Collector,Swimming Pools Solar Heating Panels/Flat Plate Solar Collector
Material :
Aluminum Alloy,Copper Pipe,Aluminum plate
Color :
BLACK
Absorptivity :
≥94%
Absorber coating :
Highly selective vacuum coating
Size :
1mx2m
Usage :
Home bathing,swimming pool,solar water heating project,Heat Water,industrial project
Cover material :
Low-iron tempered glass gyrosigma
Max. working pressure :
0.6MPa,1.0Mpa
Dimensions :
2000*1000*78
Insulation :
Glass fibre and high density polyurethane
Description

Flat plate solar collector is designed for high-grade residential solar water heating systems. It is also especially design for application in cold climate regions with mild or lower solar radiation, such as Europe, Russia, North of China, etc.

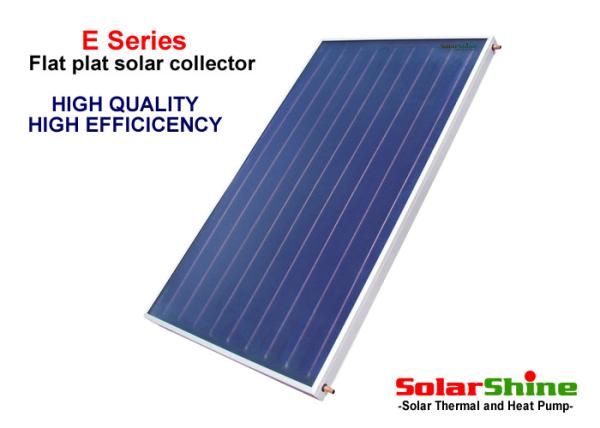

The absorber of E series collector is high efficiency blue sputtering absorb coating, with elegant-design with firm structure and manufactured by top quality materials.

There are 2 models available, with total surface area of 2.0M2 and 2.4M2 , customer can chose the most suitable model according to actual requirements.

If you are finding a cost-effective flat plate solar collector panel your house, or for a central solar water heating system, SolarShine C-series solar collector will be a smart choice, The absorber of E series collector is high efficiency blue sputtering absorb coating, it can output an nice optical performance, >95% absorb rate and <5% emission rate.

SPECIFICATION DETAILS:

SERIES E - Series (2.0M2) E - Series (2.4M2)
Model Number E-2.0-78 E-2.4-78
Ext. Dimension(mm) 2000 x 1000 x 85 2000 x 1200 x 85
Gross / Aperture area 2.0 / 1.83 (M2) 2.4 / 2.24 (M2)
Absorber Coating Selective blue sputtering
Optical Performance
of absorber coating		 Absorption: >95% Emission: <5%
Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.77 - 4.5Tm* (Tm-Ta)/G (M2.K/W)
Abosrber Material Copper Fin / L1840 X W125 x δ0.12mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser quantity 7PCS 10 PCS
Frame / Wall Thickness Aluminum alloy 6063/ δ1.1mm
Insulation
and thermal conductivity		 Layer 1: 20mm super-heat protection phenolic insulation board.
Low thermal conductivity: 0.023w/m.k
Back Sheet 0.4mm aluminum (integrated with insulation board)
Glass Cover 3.2mm tempered, low-iron patterned solar glass,transitivity >/= 92%
Sealing Profile EPDM rubber stripe
Header Manifold Ø22 / L1060 /δ0.6mm Ø22 / L1260 /δ0.7mm
Net. Weight (empty) 31kg 35kg
Container Loading Qty
(20GP/40GP/40HQ)		 155 / 330 / 350(PCS) 120 / 262 / 280(PCS)
