Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool
Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool
Specifications
Pipe material :
Copper
Type :
Flat Panel
Application :
Solar Thermal,Water Heater,pool heater
Color :
BLACK,Purple/Blue
Absorptivity :
≥94%
Absorber coating :
Highly selective vacuum coating
Usage :
Home bathing,swimming pool
Description

Economic flat plate solar collector for swimming pool and centrial hot water system applications

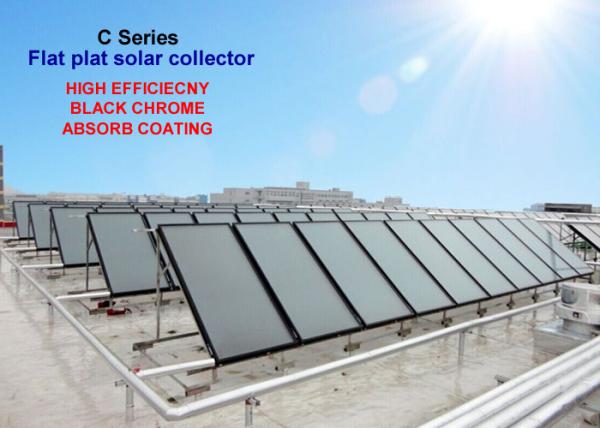

SOLARSHINE C-series flat plate solar collector is special designed for high grade residential solar water heating systems, this solar collector is also suitable to be installed in any climate regions.

The collector is elegant-design with firm structure and manufactured by top quality materials.

We offer 4 models with different cost budget, (78mm and 85mm frame) and collector area (2.0M2 and 2.4M2) collector area, customers can chose the most suitable model accordingly.

Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool

SERIES C - Series - 2.0M2 C - Series 2.4M2
Model Number C-2.0-78 C-2.0-85 C-2.4-78 C-2.4-85
Ext. Dimension(mm) 2000 x 1000 x 78 2000 x 1000 x 85 2000 x 1200 x 78 2000 x 1200 x 85
Gross / Aperture area 2.0 / 1.83 (M2) 2.4 / 2.24 (M2)
Absorber Coating Selective black chrome coating
Optical Performance
of absorber coating		 Absorption: >95% Emission: <8%
Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.762 - 4.35Tm* ŋa = 0.778 - 3.6Tm* ŋa = 0.762 - 4.35Tm* ŋa = 0.778 - 3.6Tm*
Abosrber Material Copper Fin / L1840 X W140 x δ0.15mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser quantity 7PCS 9 PCS
Frame Casing/
Wall Thickness		 Aluminum alloy 6063/ δ1.1mm Aluminum alloy 6063/ δ1.4mm Aluminum alloy 6063/ δ1.1mm Aluminum alloy 6063/ δ1.4mm
Fluid Capacity 1.6L 2.1L
Bottom Insulation
and thermal conductivity		 20mm super-heat protection
phenolic insulation board.
(Very low thermal conductivity: 0.023w/m.k)		 Layer 1: 20mm super-heat protection phenolic insulation board.
Low thermal conductivity: 0.023w/m.k
Layer2: 25mm fiberglass wool+alu foil cover
Thermal conductivity: 0.034w/m.k		 20mm super-heat protection
phenolic insulation board.
(Very low thermal conductivity: 0.023w/m.k)		 Layer 1: 20mm super-heat protection phenolic insulation board.
Low thermal conductivity: 0.023w/m.k
Layer2: 25mm fiberglass wool+alu foil cover
Thermal conductivity: 0.034w/m.k
Back Sheet 0.4mm aluminum (integrated with phenolic insulation board)
Glass Cover 3.2mm tempered, low-iron patterned solar glass,transitivity >/= 92%
Sealing Profile EPDM rubber stripe
Header Manifold Ø22 / L1060 /δ0.6mm Ø22 / L1260 /δ0.7mm
Tested/Rated working pressure 1.2Mpa/0.6Mpa
Net. Weight (empty) 30kg 31kg 32kg 35kg
Container Load Qty
(20GP/40GP/40HQ)		 165 / 340 / 360(PCS) 155 / 330 / 350(PCS) 130 / 280 / 300(PCS) 120 / 262 / 280(PCS)

Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool

Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool

Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool

Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool

Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool

Economic Evacuated Flat Plate Solar Collector Firm Structure For Swimming Pool
