Professional Flat Plate Solar Collector Highly Selective Vacuum Coating
Professional Flat Plate Solar Collector Highly Selective Vacuum Coating
Specifications
Type :
Flat Panel
Product name :
Swimming Pools Solar Heating Panels/Flat Plate Solar Collector
Color :
BLACK
Absorber coating :
Highly selective vacuum coating
Max. working pressure :
0.6MPa
Insulation :
Glass fibre and high density polyurethane
Description

Professional manufacturer of flat plate solar thermal collector and solar water heater

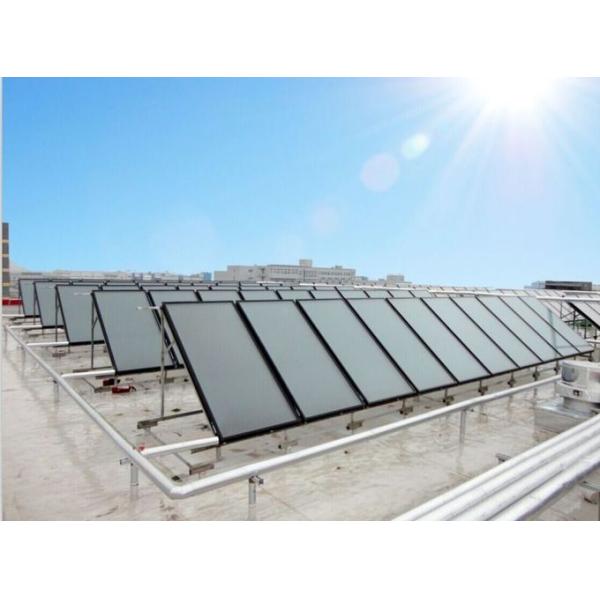

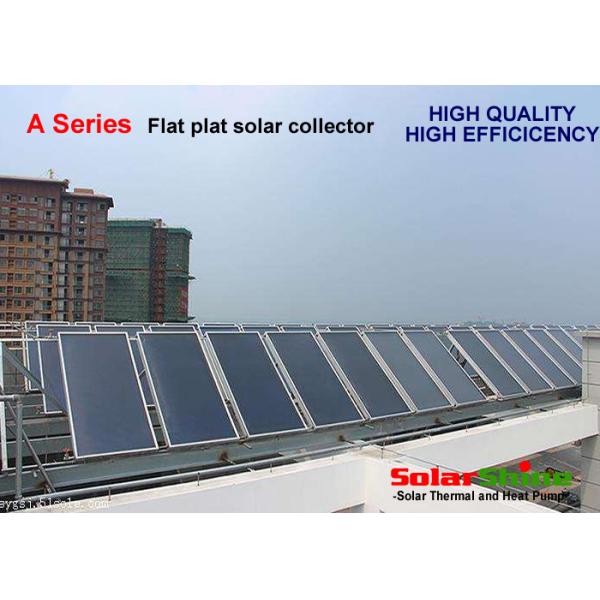

This flat plate solar thermal collector, designed for large central solar water heating projects and residential solar water heater in warm-climate regions, and the regions with sufficient solar radiation, such as South East Asia, Africa, south of China, etc.

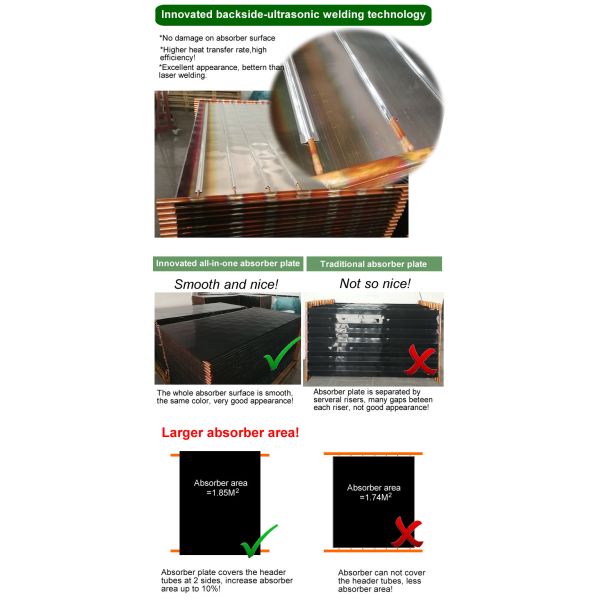

This model collector is a cost-effective model for any solar water heating system, apply with innovated all-in-one absorber plate+ backside ultrasonic welding technology. The absorber is selective black oxidation coating.

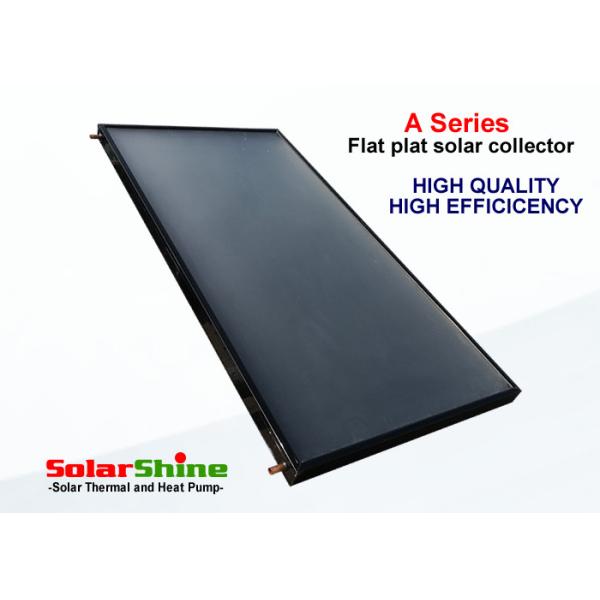

SERIES TYPE A - Series solar collector
Model A-2.0-78
Ext. Dimension 2000 x 1000 x 78MM
Gross Area / Aperture area 2.0 / 1.83 (M2)
Absorber Coating Selective anodize oxidation coating
Absorber optical data Absorption: >95% Emission: <16%
Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.75 - 5.4Tm* (Tm-Ta)/G (M2.K/W)

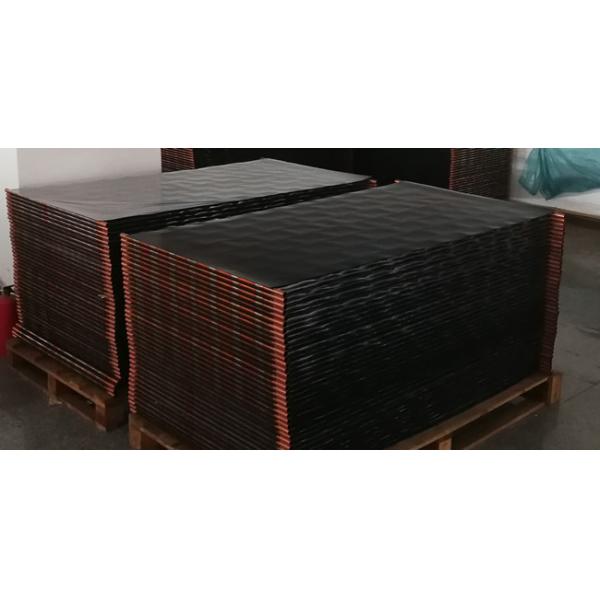

Absorber Material All in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser tubes quantity 7 PCS
Header tube Ø22 / L1060 /δ0.6mm
Inside Fluid Capacity 1.6L
Frame and Wall Thickness Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity		 25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k

Back Sheet

(Optional)

 δ0.4mm galvanized plate/aluminum plate
Glass Cover

Low iron 3.2mm tempered, solar glass,

transitivity >/= 92%/ high efficiency
Sealing Profile EPDM rubber
Tested/Rated pressure 1.2Mpa/0.6Mpa
Net. Weight (empty) 31.5kg
Container Loading Qty
(20GP/40GP/40HQ)		 165 / 340 / 360(PCS)
