2 Square Meters Flat Plate Solar Collector Aluminum Alloy Material Easy Installation
2 Square Meters Flat Plate Solar Collector Aluminum Alloy Material Easy Installation
Specifications
Application :
Solar Thermal,Water Heater,pool heater
Product name :
Flat Plate Solar Collector
Material :
Aluminum Alloy,Copper Pipe,Aluminum plate,3.3 high borosilicate Glass
Installation :
Wall Mounted,also Free,Freestanding,can be mounted on any roof
Color :
BLACK
Absorptivity :
95%±2%
Cover material :
Low-iron tempered glass gyrosigma
Max. working pressure :
0.6MPa
Description

2 square meters small solar collector with high quality and competitive price

If you are finding a cost-effective flat plate solar collector panel for for large central solar water heating projects and residential solar water heater, this model solar thermal collector will be a smart choice, this solar collector is suitable to be installed in warm-climate regions, and the regions with sufficient solar radiation, such as South East Asia, Africa, south of China, etc.

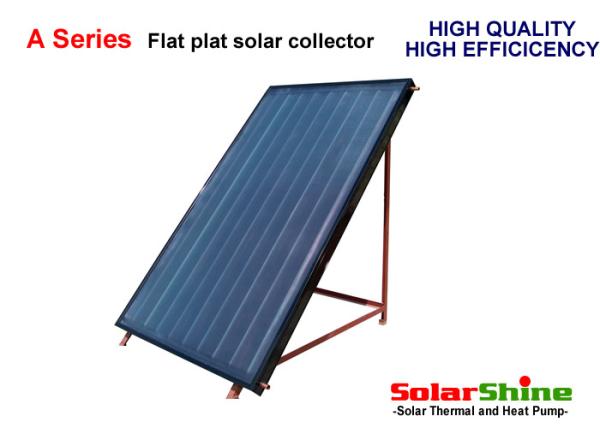

This model collector is a cost-effective model for any solar water heating system, apply with innovated all-in-one absorber plate+ backside ultrasonic welding technology. The absorber is selective black oxidation coating. A-Series flat plate solar collector

Flat Plate Collector Working Principle

Converting solar energy into heat energy, then transferring the sunshine passed across the low iron safety transparent glass of the collector, which heats up, and gets a great amount of the radiation from the sun. Heat into working fluid, therefore the cold working fluid from the bottom of collector is gradually heated, so that temperature is rising. Finally the heated liquid is transferred back to the top of the collector of storage tank for using. Whole process is the useful energy collection. In the meantime, due to absorber plate temperature rise, only very little of the heat emitted by the absorber escapes the cover.heating projects due to their simple design, low cost, and relatively easier installation.

SERIES TYPE A - Series solar collector
Model A-2.0-78
Dimension 2000 x 1000 x 78MM
Gross Area / Aperture area 2.0 / 1.83 (M2)
Absorb Coating Selective anodize oxidation coating
Absorber optical data Absorption: >95% Emission: <16%
Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.75 - 5.4Tm* (Tm-Ta)/G (M2.K/W)
Absorber Material All in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser tubes quantity 7 PCS
Header tube Ø22 / L1060 /δ0.6mm
Inside Fluid Capacity 1.6L
Frame and Wall Thickness Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity		 25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k

Back Sheet

(2 Options)

 δ0.4mm galvanized plate/aluminum plate
Glass Cover

Low iron, 3.2mm tempered, solar glass,

High transitivity up to 92%
Sealing Profile EPDM rubber
Tested/Rated pressure 1.2Mpa/0.6Mpa
Net. Weight (empty) 32kg
Container Loading Qty
(20GP/40GP/40HQ)		 165 / 340 / 360(PCS)
