Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector
Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector
Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector
Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector
Specifications
Brand Name :
SolarShine/OEM
Model Number :
E-2.0-78/85
Place of Origin :
China
MOQ :
5
Delivery Time :
30 working days
Packaging Details :
Standard export packing
Pipe material :
Copper
Type :
Flat Panel
Product name :
Evacuated Tube Solar Collector
Installation :
Wall Mounted
Absorptivity :
≥94%
Usage :
Home bathing,swimming pool
Description

High quality and competive price solar water heater collector

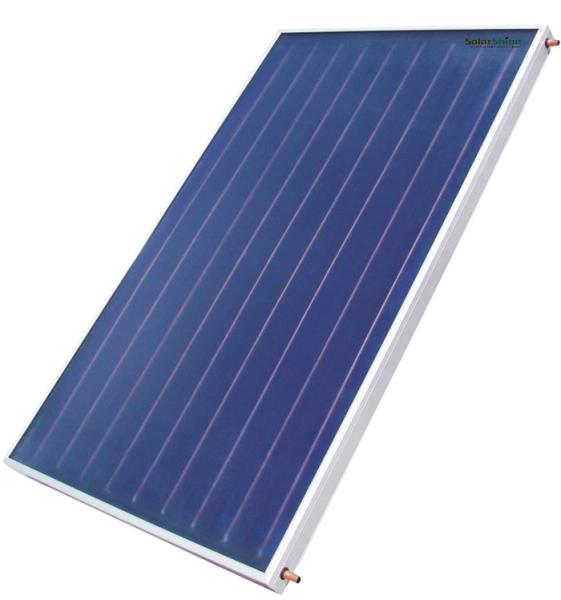

SloarShine E-series flat plate solar collector is designed for high-grade residential solar water heating systems. It is also especially design for application in cold climate regions with mild or lower solar radiation, such as Europe, Russia, North of China, etc.

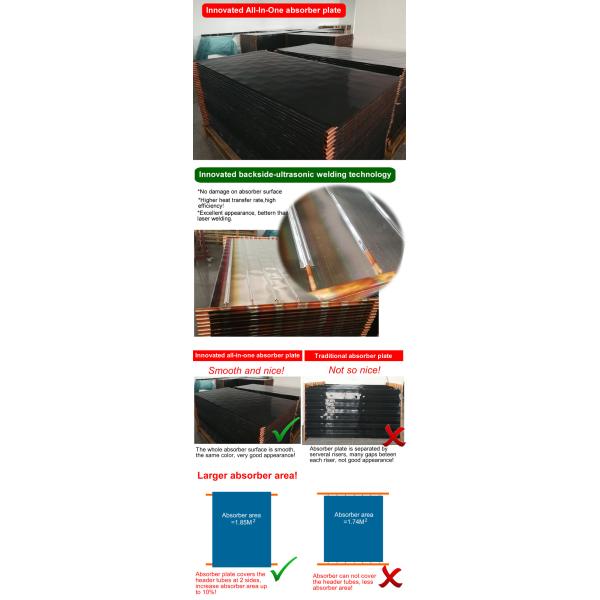

The absorber of E series collector is high quality Blue sputtering absorber.

The collector is elegant-design with firm structure and manufactured by top quality materials.

We offer 2 models of collector area (2.0M2 and 2.4M2) , customer can chose the most suitable model accordingly.

Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector

Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector

Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector

Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector

Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector

Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector

Safety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube CollectorSafety Flat Plate Solar Collector , Solar Water Heater Evacuated Tube Collector

SERIES E - Series (2.0M2) E - Series (2.4M2)
Model Number E-2.0-85 E-2.4-85
Ext. Dimension(mm) 2000 x 1000 x 85 2000 x 1200 x 85
Gross / Aperture area 2.0 / 1.83 (M2) 2.4 / 2.24 (M2)
Absorber Coating Germany origin/Selective blue sputtering
Optical Performance
of absorber coating		 Absorption: >95% Emission: <5%

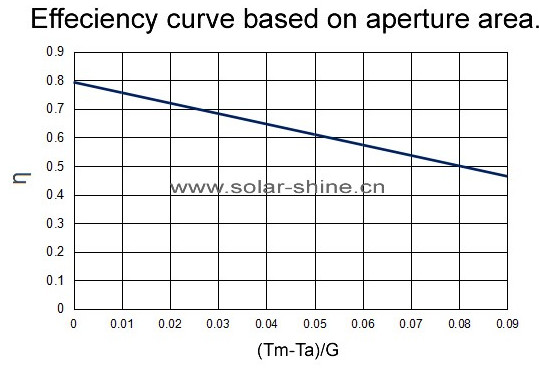

Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.793 - 3.66Tm*

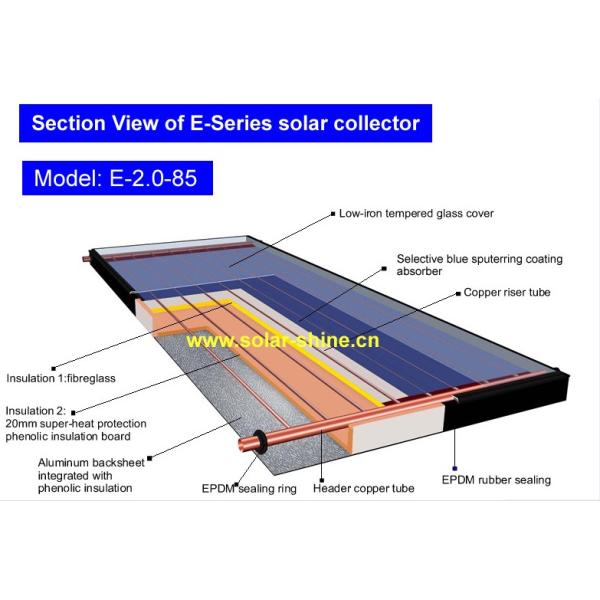

Abosrber Material Copper Fin / L1840 X W125 x δ0.12mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser quantity 8PCS 10 PCS
Frame / Wall Thickness Aluminum alloy 6063/ δ1.4mm
Insulation
and thermal conductivity		 Dual Insulation layers:
Layer 1: 20mm super-heat protection phenolic insulation board.
Low thermal conductivity: 0.023w/m.k
Layer2: 25mm fiberglass wool+alu foil cover
Thermal conductivity: 0.034w/m.k
Back Sheet 0.4mm aluminum (integrated with insulation board)
Glass Cover 3.2mm tempered, low-iron patterned solar glass,transitivity >/= 92%
Sealing Profile EPDM rubber stripe
Header Manifold Ø22 / L1060 /δ0.6mm Ø22 / L1260 /δ0.7mm
Net. Weight (empty) 31kg 35kg
Container Loading Qty
(20GP/40GP/40HQ)		 155 / 330 / 350(PCS) 120 / 262 / 280(PCS)
