Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions
Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions
Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions
Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions
Specifications
Pipe material :
Copper
Type :
Flat Panel,Pressurized,Solar Water Heater Parts,Flat Plate,Sun+panels
Application :
Solar Thermal,Water Heater,pool heater
Product name :
Flat Plate Solar Collector,Swimming Pools Solar Heating Panels/Flat Plate Solar Collector
Material :
Aluminum Alloy,Copper Pipe,Aluminum plate,3.3 high borosilicate Glass
Installation :
Wall Mounted,Freestanding,can be mounted on any roof
Color :
BLACK
Absorptivity :
≥94%
Size :
1mx2m
Usage :
Home bathing,swimming pool,solar water heating project,Heat Water,industrial project
Cover material :
Low-iron tempered glass gyrosigma
Max. working pressure :
0.6MPa
Dimensions :
2000*1000*78MM
Insulation :
Glass fibre and high density polyurethane
Description

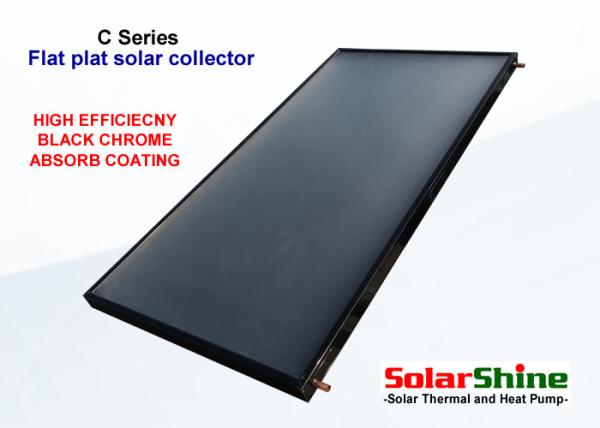

2.4 square meters big pressurized solar collector suitable for cold climate regions

C-series flat plate solar thermal collector is special designed for high grade residential solar water heating systems, this solar collector is also suitable to be installed in any climate regions. The collector is elegant-design with firm structure and manufactured by top quality materials.

We offer 4 models with different cost budget, (78mm and 85mm frame) and collector area (2.0M2 and 2.4M2) collector area, customers can chose the most suitable model accordingly.

Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions

Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions

Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions

Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions

Big Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate RegionsBig Pressurized Solar Collector 2.4 Square Meters Apply To Cold Climate Regions

SPECIFICATIONS:

SERIES C- Series solar collector
Model Number C-2.0-78
Ext. Dimension 2000 x 1000 x 78MM
Gross / Aperture area 2.0 / 1.83 (M2)
Absorber Coating Selectiven black chrome coating
Optical Performance
of absorber coating		 Absorption: >95% Emission: <8%
Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.77 - 5.4Tm*
Absorber Material All in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser tubes quantity 7PCS
Header Ø22 / L1060 /δ0.6mm
Inside Fluid Capacity 1.6L
Frame and Wall Thickness Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity		 25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k

Back Sheet

(Optional)

 δ0.4mm galvanized plate/aluminum plate
Glass Cover

3.2mm tempered, low-iron patterned solar glass,

transitivity >/= 92%
Sealing Profile EPDM
Tested/Rated pressure 1.2Mpa/0.6Mpa
Net. Weight (empty) 31.5kg
Container Loading Qty
(20GP/40GP/40HQ)		 165 / 340 / 360(PCS)
