Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector
Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector
Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector
Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector
Specifications
Pipe material :
Copper
Type :
Flat Panel,Pressurized,Solar Water Heater Parts,Flat Plate
Application :
Solar Thermal,Water Heater,pool heater
Product name :
Flat Plate Solar Collector
Material :
Aluminum Alloy,Copper Pipe,Aluminum plate
Installation :
Wall Mounted,also Free,Freestanding,can be mounted on any roof
Color :
BLACK
Warranty :
5 Years
Absorber coating :
0.4mm. Domestic blue titanium/thickness 0.4mm
Size :
1mx2m
Usage :
solar water heating project,Heat Water
Cover material :
Low-iron tempered glass gyrosigma
Max. working pressure :
0.6MPa
Insulation :
30mm glass wool
Description

hot sales black chrome solar thermal collector panel for solar hot water heating system and house small water heater

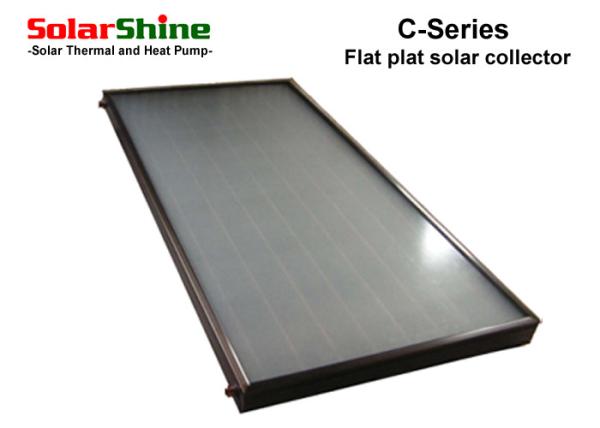

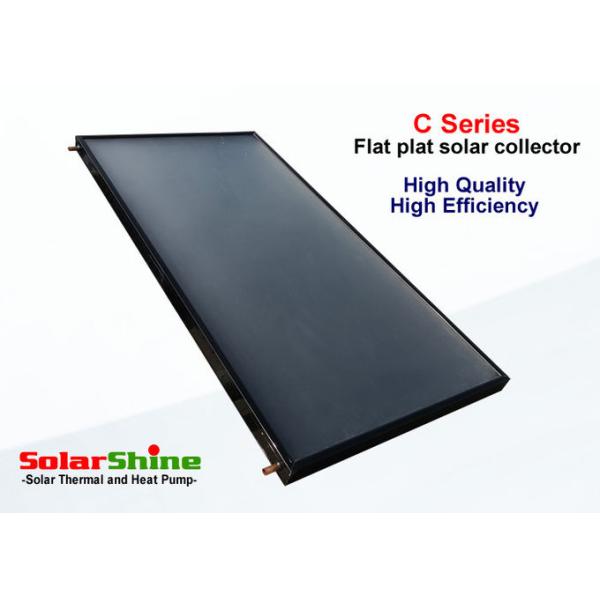

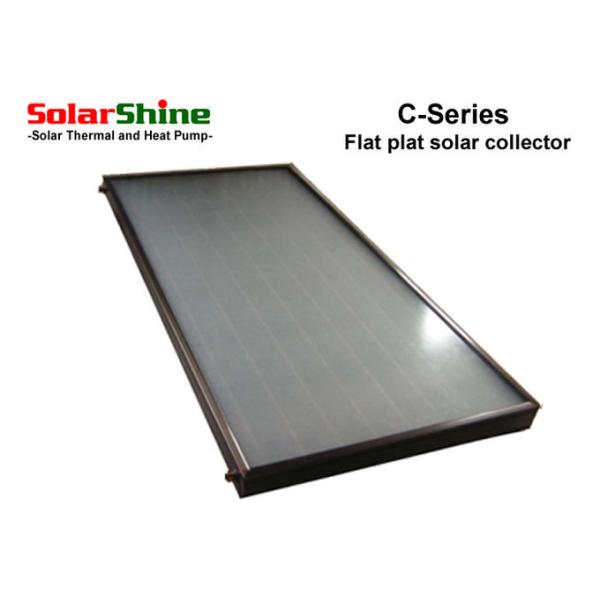

SOLARSHINE C-series flat plate solar collector is special designed for high grade residential solar water heating systems, this solar collector is also suitable to be installed in any climate regions.

The collector is elegant-design with firm structure and manufactured by top quality materials.

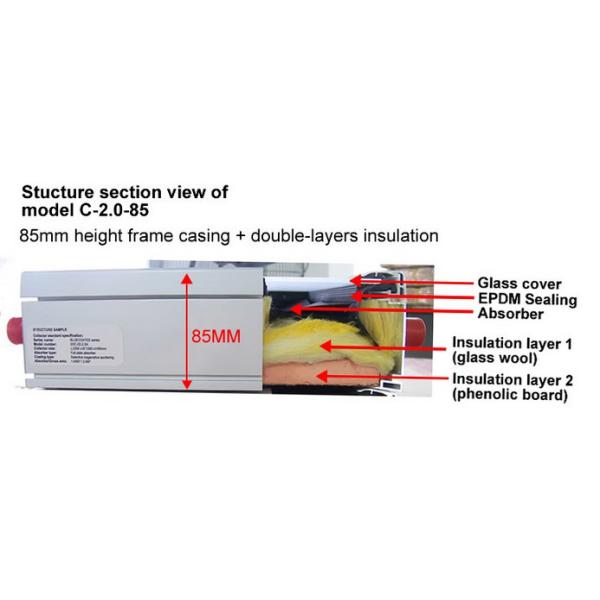

We offer 4 models with different cost budget, (78mm and 85mm frame) and collector area (2.0M2 and 2.4M2) collector area, customers can chose the most suitable model accordingly.

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

Black Chrome Solar Hot Water Collector , Copper Pipe Small Solar CollectorBlack Chrome Solar Hot Water Collector , Copper Pipe Small Solar Collector

SERIES C-Series
Model Number C-2.0-78
Ext. Dimension(mm) 2000 x 1000 x 78
Gross / Aperture area 2.0 / 1.83 (M2)
Absorber Coating Selective black chrome coating
Optical Performance
of absorber coating		 Absorption: >95% Emission: <8%

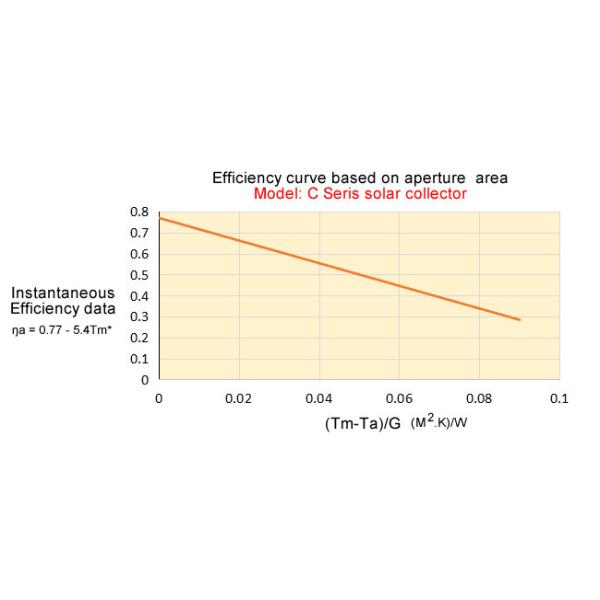

Efficiency coefficients
(Based on Aperture Area)		 ŋa = 0.77 - 5.4Tm*
Absorber Material All in one: Aluminum fin / L1940 X W950 x δ0.3mm
Risers tube Copper TP2- L1886 x Ø10 x δ0.5mm
Riser quantity 7PCS
Header Manifold Ø22 / L1060 /δ0.6mm
Fluid Capacity 1.6L
Frame Casing/
Wall Thickness		 Aluminum alloy 6063/ δ1.1mm
Bottom Insulation
and thermal conductivity		 25mm fiberglass wool+ alu foil cover
Thermal conductivity=0.034w/m.k
Back Sheet δ0.4mm aluminium plate
Glass Cover

3.2mm tempered, low-iron patterned solar glass,

transitivity >/= 92%
Sealing Profile EPDM rubber stripe
Tested/Rated pressure 1.2Mpa/0.6Mpa
Net. Weight (empty) 31.5kg
Container Loading Qty
(20GP/40GP/40HQ)		 165 / 340 / 360(PCS)
