3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power
3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power
3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power
3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power
3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power
3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power
Specifications
Brand Name :
Tuxun
Model Number :
CNS110
Certification :
CE/EMC/ETL/LVD
Place of Origin :
China
MOQ :
2 EA
Price :
$311-$344
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 PCS/M
Delivery Time :
10~20 working days
Packaging Details :
Carton；Size(mm):550*400*200 Weight:11.5kg
Name :
Off-Grid Inverter
Recommend use panels :
2,375Watt
Net Weight :
12KG
Frequency Range :
50Hz/60Hz(Auto sensing)
Rated Power :
3500VA/3500W
Battery Voltage :
24VDC
PV maximum open circuit voltage :
500VDC
Description

3.5kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power

Description:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Specifications:

Place of Origin China
Waveform Pure sine wave
Model Name CNS110
Classification Off-Grid Inverter

Net weight(kg)

 10.5
MPPT operating voltage range
120VDC-450VD

Features:

1 . Pure sine wave inverter .

2. Configurable input voltage range for home appliances and personal computers via LCD setting.

3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

4. Advanced MPPT technology, with efficiency up to 99.9%.

5. Wide MPPT voltage range.

6. With function of activating lithium battery with solar energy and AC mains power,it supports connection of lead-acid battery and lithium battery.

7. Configurable battery charging current based on applications via LCD setting .

8.ON/OFF rocker switch can control AC output.

9. With power saving mode function, it can reduce no-load loss.

10. Intelligent adjustable speed fan is adopted for efficient heat dissipation and extended system life.

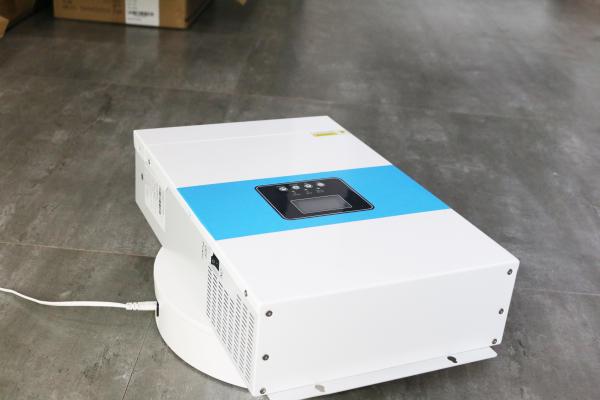

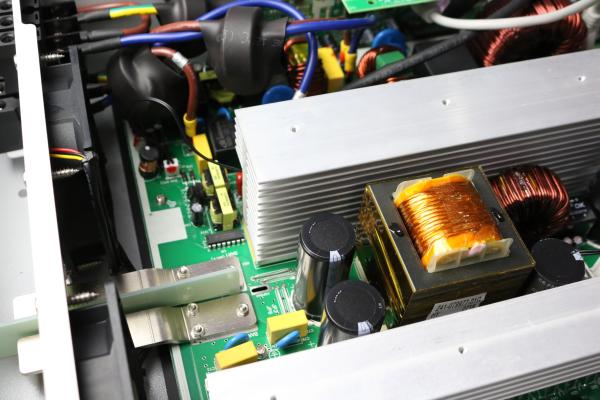

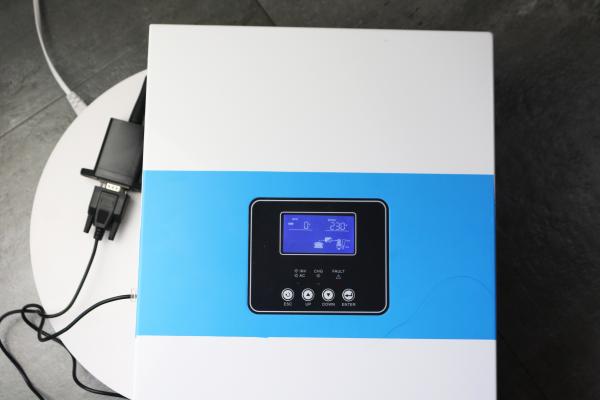

Details display:

3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power

Factory Tour:

3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power3.5Kw Generation Inverter Charge Controller 220V Off-Grid Solar System Solar Power

Luoyang Tuxun Electronic Technology Co., Ltd. in the energy industry, has a number of industrial chains, the company has

the ability to quickly transfer customer needs to the production line, to provide personalized customized services. Our
excellent research and development ability also enables our products to be updated quickly. Compared with traditional
production enterprises, we have greater service advantages and have gained recognition from more customers.
