5m Europe Type Schuko Plug Power Cord For Microinverter Balcony PV Solar System
5m Europe Type Schuko Plug Power Cord For Microinverter Balcony PV Solar System
Specifications
Brand Name :
Pntech
Model Number :
JY03-F
Certification :
VDE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs per day
Delivery Time :
3-10days
Packaging Details :
100sets/polybag 500sets/carton 39x39x22cm
Product name :
Schuko Plug Power Cord
Voltage :
AC230V
Degree of protection :
IP68
Rated Current: :
25A
Contact Resistance :
≤1mΩ
Color :
Black
Description

5m Length Europe Type Schuko Plug Power Cord for Microinverter Balcony PV Solar System

Mains connection cable, for AC connection of the module inverter to a Schuko socket. Cable Diameter: 10mm
On one side with mounted Betteri BC01 (female) power connection socket, the other side with Schuko plug.

Avoid the risk of miswiring the fire, zero and ground wires.Meanwhile, the DC input is designed with MC4 connector to avoid reversing the positive and negative terminals.

(Some customers extend the solar panel cable so that the positive and negative polarity is reversed)

MICRO INVERTER AC CONNECTION CABLE
Conductor: Copper
Cable: 3G 1.5mmH07RN-F
Insulation: Rubber
Connector A: Better iBC 01 Female
Connector B: Schuko Plug
Waterproof Level: IP68(1.5m,24h)
Wiring Connection: Screw Type
Rated Voltage: AC230V
Rated Current: 25A
Temperature Range: -30℃~+60C
Contact Resistance: ≤1mQ
Outer Cable Diameter: 10~13mm
Certificate: VDE/CE


Advantage:

-Safety-

The power inverter has IP65 waterproof struct; Anti-thunder, rust-proof property design;

Input /output is fully isolated to protect the electrical safety;

Over and under voltage protection;

Over and under frequency protection;

Islanding protection.
-Good Heat Dissipation & Easy Install-

Solar Converter Body fully be made of aluminum alloy which can make it has a good heat dissipation performance.

And micro converter also makes it easy to install and maintenance in usually.

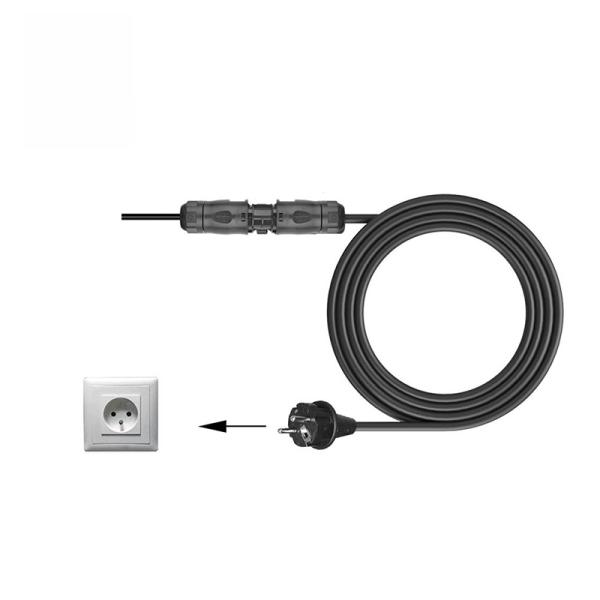

Picture of Female Extension Cable

5m Europe Type Schuko Plug Power Cord For Microinverter Balcony PV Solar System

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
