6mm DC Solar Cable 1800V High Voltage PV Solar Wire For PV Panel
6mm DC Solar Cable 1800V High Voltage PV Solar Wire For PV Panel
6mm DC Solar Cable 1800V High Voltage PV Solar Wire For PV Panel
6mm DC Solar Cable 1800V High Voltage PV Solar Wire For PV Panel
Specifications
Brand Name :
Pntech
Model Number :
PV1-F 1x6mm2
Certification :
ISO9001/TUV/CE
Place of Origin :
China
MOQ :
200m
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
70000m per day
Delivery Time :
3-10days
Packaging Details :
200m per roll, 400m per carton
Product name :
DC solar cable 6mm
Application :
Power station
Jacket :
XLPE
Color :
Black or Red
Weight :
95kg/km
Packing :
200m per roll
Description

TUV CE 1800V High Voltage PV Solar Wire 6mm DC Solar Cable for PV Panel

Specificate

1. Conductor: copper acc.IEC 60228+EN60228,VDE0295 CLASS5,Fine stranded Tinned copper conductor.
2.Temperature range for application is from -40℃ to 90℃.
Max.Temperature at conductor can be 120.
3.the permitted short circuit temperature referring to a period of 5s is 200.
4.the solar PV cable is resistant to UV, ozone and hydrolysis.
5.It is also known for its high mechanical robustness and greatResistance to water, oil and chemicals.
6.this solar PV cable is TUV approved, so customers can feel secure in using it.

Size Cross Section Conductor Structure Outer Diameter Max. DC Rated Rated
Resistance at 20℃ Voltage Current
mm² mm mm Ω/km V DC A
1 x 2.5mm² 2.5mm² 49 x ∅0.25 5.4 8.06 1000/1500 30A
1 x 4.0mm² 4.0mm² 56 x ∅0.285 6.1 4.97 1000/1500 50A
1 x 6.0mm² 6.0mm² 84 x ∅0.30 7.1 3.52 1000/1500 70A
1 x 10.0mm² 10.0mm² 80 x ∅0.40 8.5 2.12 1000/1500 95A

Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.

Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 4mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

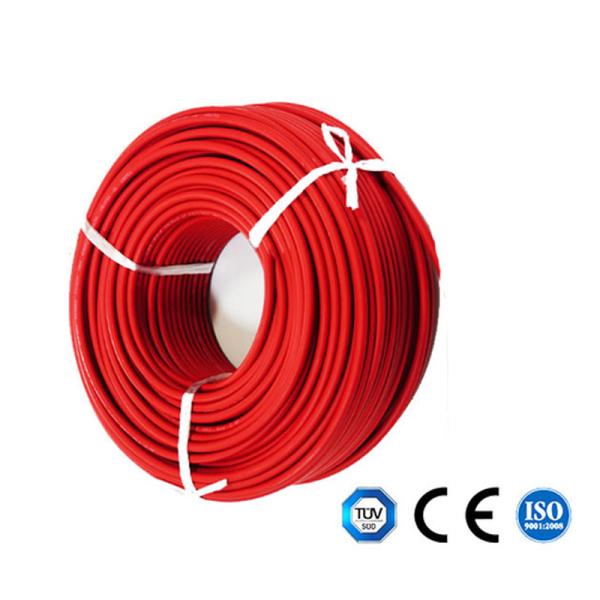

Picture of DC solar cable 6mm2

6mm DC Solar Cable 1800V High Voltage PV Solar Wire For PV Panel
