XLPE Jacket 12AWG Solar PV Cable Wire Copper Conductor Red / Black Color
XLPE Jacket 12AWG Solar PV Cable Wire Copper Conductor Red / Black Color
Specifications
Brand Name :
Pntech
Model Number :
PV1-F 1x4mm2
Certification :
ISO9001/TUV/CE
Place of Origin :
China
MOQ :
100m
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
70000m per day
Delivery Time :
3-10days
Packaging Details :
100m/roll, 500m per carton
Product name :
4mm2 12AWG solar PV Cable
Rated Voltage :
1800V DC
Color :
Red or Black
Cable OD :
5.9mm
Packing :
100m/roll
Temperature range :
-40℃～+90℃
Description

4mm2 (12AWG) Solar Cable PV Cable Wire Copper Conductor XLPE Jacket TUV approved

Product description

Photovoltaic copper conductors are suitable for outdoor rooftop applications without conduit and for use in conduits and raceways installed underground in wet locations, and where condensation and moisture accumulations within the conduit do not exceed 90°C. Applications requiring direct burial is permitted with PV wire. All cables comply with TUV’s VW-1 (Vertical Wire) Flame Test. Insulation compounds are rated for flame and sunlight-resistance.

Technical Data

Type Cross Strand Conductor Conductor Outer Rated Rated Weight
section design diameter resistance diameter voltage current
mm² No.x ø (mm) mm Ω /km mm VAC/DC A Kg/km
PV-1*1.5 mm² 1.5 30x ø 0.25 1.6 13.5 4.8 1000/1800 30 35
PV-1*2.5 mm² 2.5 50x ø 0.25 2.0 8.21 5.3 1000/1800 41 50
PV-1*4.0 mm² 4.0 56x ø 0.3 2.6 5.09 6.1 1000/1800 55 70
PV-1*6.0 mm² 6.0 84x ø 0.3 3.3 3.39 7.1 1000/1800 70 95
PV-1*10.0 mm² 10.0 80x ø 0.4 4.4 1.95 8.5 1000/1800 98 155
PV-1*16 mm² 16.0 120x ø 0.4 5.2 1.24 10.2 1000/1800 132 230
PV-1*25 mm² 25.0 196x ø 0.40 7.4 0.795 12.0 1000/1800 176 341
PV-1*35 mm² 35.0 276x ø 0.40 9.00 0.565 14.0 1000/1800 218 467


Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor. Resistance to sunlight, anti-aging, Using the low smoke halogen-free flame retardant materials, higher grade, more safety.

Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4,6,10,16 mm2 PV1 - F
25,16 and 10, 6,4,2.5 mm2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2, 6mm2, 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

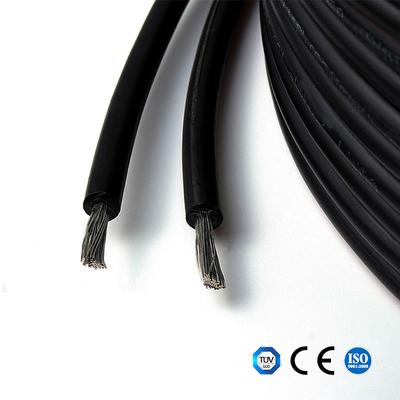

Picture of 4mm2 12AWG solar pv cable

XLPE Jacket 12AWG Solar PV Cable Wire Copper Conductor Red / Black Color
