Stranded Oxygen Free Tinned Copper Wire PV Cable 2.5mm2 Red Black
Stranded Oxygen Free Tinned Copper Wire PV Cable 2.5mm2 Red Black
Specifications
Brand Name :
Pntech
Model Number :
H1Z2Z2-K 1x2.5mm2
Certification :
TUV/CE/ISO9001
Place of Origin :
China
MOQ :
250m / roll
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
70000m per day
Delivery Time :
3-7days
Packaging Details :
250m per roll
Product Name :
pv cable 2.5mm2
Structure :
50/0.25mm
Insulation Material :
XLPE
Jacket Material :
XLPE
Conductor Material :
Stranded Tinned copper
Cable OD :
5.3mm
Resistance :
≤8.21（Ω/KM）
Rated Voltage :
AC Uo/U0.6~1.0KV , DC1.8KV
Color :
Black / Red
Packing :
250m per roll
Description

Stranded Oxygen Free Copper Tinned Copper Wire PV cable 2.5mm2 - Red & Black

The solar cable wire's operating temperature up to -40℉ ~ +194℉(-40℃~90℃). UV resistant and waterproof weather resistant and electrically insulating,TUV tested cable. durable with more than 30 year lifespan for outdoor use.

Solar Panel Wire is made of pure copper with tin coating, which provides good conductivity and the ability to resist oxidation.

Tinned copper is durable and flexible. Compared with aluminum materials, it has lower resistance and higher conductivity.


Application :

Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .

TYPE Cross section Wire struct Conductor diameter Outer diameter Conductor resistance Rated voltage Rated current
mm2 No.OD (mm) mm mm Ω/Km V AC/DC A
1X1.5mm2 1.5 22XΦ0.285 1.58 3.2 13.5 1000/1800 20
1X4.0mm2 4 56XΦ0.285 2.6 5.9 5.09 1000/1800 50
1X6.0mm2 6 84XΦ0.285 3.3 6.6 3.39 1000/1800 70
1X10mm2 10 80XΦ0.40 4.4 8.3 2.12 1000/1800 95
2X2.5mm2 2.5 48XΦ0.25 2 6.2*9.90 8.06 1000/1800 30
2X4.0mm2 4 56XΦ0.30 2.6 6.9*11.30 4.97 1000/1800 50
2X6.0mm2 6 81XΦ0.30 3.3 7.1*14.50 3.52 1000/1800 70

Outstanding Advantages :

1. Dual wall insulation.Electron beam cross-linked
2. Excellent resistance to U.V,oil,greases,oxygen and ozone
3. Excellent resistance to abrasion
4. Halogen free, flame retardant,low toxicity
5. Excellent flexibility and stripping performance
6. High current carring capacity
7. TUV approved

Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 4mm2, 6mm2 10mm2 and 16mm2, as well as dual cores,

please consult me directly if necessary)

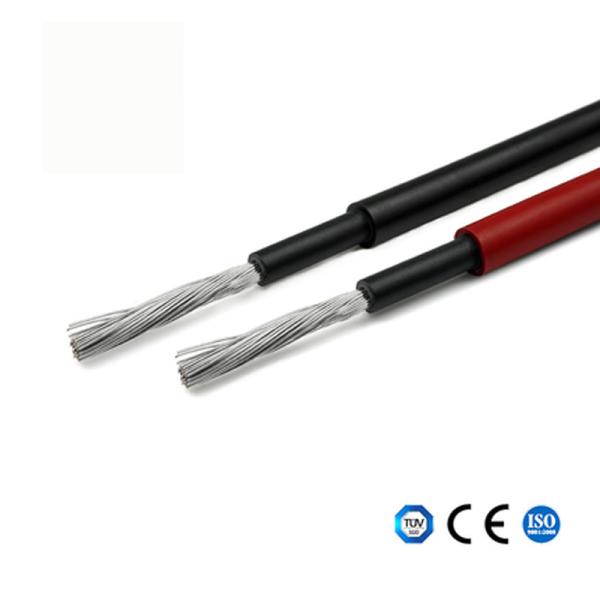

Pictures of 2.5mm DC Solar Cable

Stranded Oxygen Free Tinned Copper Wire PV Cable 2.5mm2 Red Black

FAQ:

1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
