Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable
Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable
Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable
Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable
Specifications
Brand Name :
Pntech
Model Number :
H1Z2Z2-K 1x4mm2
Certification :
TUV/CE/ISO9001
Place of Origin :
China
MOQ :
20000M
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50000m per day
Delivery Time :
3-7days
Packaging Details :
250m per roll
Conductor Material :
Tinned copper
Structure :
56/0.285mm
Insulation Material :
XLPE
Jacket Material :
XLPE
Jacket Thickness :
0.8mm
Cable OD :
5.9mm
Resistance :
5.09（Ω/KM）
Rated Voltage :
AC Uo/U0.6~1.0KV , DC1.8KV
Color :
Grey / Brown
Packing :
250m / roll
Description

XLPE 12AWG (4mm²) Wire 250M Grey or Brown Solar Panel DC Cable

Tinned copper wire, 12 AWG (4mm²) wire, 250m, 56 strands 0.285 mm tinned copper wire, protecting them from corrosion, and easy to solder.
PV Wire - PV Jacket insulation is thick and sturdy, coated well, durable and very flexible, UV Resistant.
Wide temperature range: -40°F to 248°F (-40°C to 120°C), rated voltage is 600V, resistant to acid, alkali, oil and strong oxidation. Chemical, flame, aging, weather resistant and electrically insulating.


Technical Data of 4mm DC single core Solar Cable

Cross Section AWG Maximum Conductor Resistance at 20ºC Maximum insulation Resistance at 20ºC Maximum insulation Resistance at 90ºC Current Carrying Capacity
Single cable free in air Single cable on surfaces 2 loaded cables adjacent on surfaces
mm2 - Ω MΩ.km MΩ.km A A A
1.5 16 13.7 859 0.859 30 29 24
2.5 14 8.21 691 0.691 41 39 33
4 12 5.09 579 0.579 55 52 44
6 10 3.39 499 0.499 70 67 57
10 8 1.95 424 0.424 98 93 79
16 6 1.24 342 0.342 132 125 107
25 4 0.795 339 0.339 176 167 142
35 2 0.565 287 0.287 218 207 176


(We also produce single core of 2.5mm2, 6mm2 and 10mm2, as well as dual cores,

please consult me directly if necessary)

Wire: Copper (Class 5, tinned) UV resistance
Insulation material: XLPE High wear and abrasion resistance
Double insulation Flame test according to:
DIN EN 50265-2-1 UL1571(VW-1)
Halogen-free Smallest permissible Bending Radius : 5 x D
High resistance against oil, greases, oxygen and ozone Temperature range: -40℃ ~ +90℃
Microde-resistant Colours: Black & Red

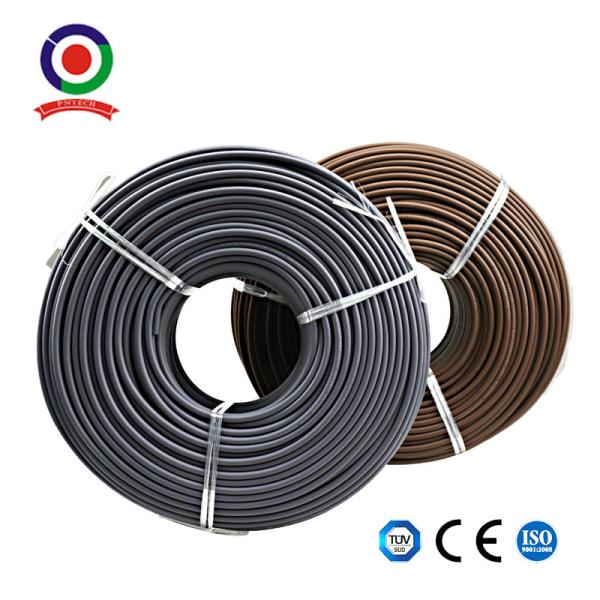

Pictures of 12AWG (4mm²) DC Solar Cable

Xlpe 12awg 4mm2 Wire 250m Single Core Solar Cable

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
