Solar PV System 2.5 4.0 6.0mm2 Hand Crimper Tool
Solar PV System 2.5 4.0 6.0mm2 Hand Crimper Tool
Solar PV System 2.5 4.0 6.0mm2 Hand Crimper Tool
Solar PV System 2.5 4.0 6.0mm2 Hand Crimper Tool
Specifications
Brand Name :
Pntech
Model Number :
C4K-A
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000sets per day
Delivery Time :
3-10days
Packaging Details :
1set/bag 20sets per carton
Product name :
Wire Terminal Crimping Set
Function :
Mulit-purpose
Material :
Carbon Steel
Capacity :
2.5/4.0/6.0mm2
Dimension :
30.5x20.5x7.5cm
Packing :
Fabric bag
Description

Solar energy systems PV Hand Crimper Tool Ratcheting Wire Terminal Crimping Set

1PCS A-2546B Crimping Tools(crimping range:2.5,4,6.0mm2),

1PCS Cable Stripper with cutter for cutting cables 30mm max and stripping cables 0.6-2.6mm2,

2PCS 2546S Spanner,

1PCS locator,

1PCS connector,

1PCS die set(crimping range:2.5,4,6.0mm2),

1PCS die set(crimping range:1.5,2.5,4,6.0mm2),

1PCS Hex Spanner,Several screws

Contain:

No. The Type of Solar Kits Introduce
1 A2546B solar cable crimper(With Solar Dies Set) Solar cable crimper
Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10)
Length:270mm, Weight:0.74Kg
2 Locator Use with A-2546B Solar Cable Crimper
3 Hex wrench Use for Installing Dies/MC3 Dies/Tyco Dies
4 solar Dies Set A Pair of Dies for MC3 solar connector
(Multi-Contact) & 2.5/4/6mm2
(AWG 14/12/10) solar cable.
6 Solar Test Leads A Pair of Solar Test leads for solar
connectors
2 x 150cm test leads, IP65 Connector,
4mm connectors,
High quality 1mm2 cable, 1000V / 19A CE
Warning Labels,
Allows for the safe connection to PV Panels,
Speeds up testing,
Exceeds GS38 Standards
7 LA-2546B solar cable stripper Universal solar cable stripper, for
2.5/4/6mm2 (AWG 14/12/10) solar cable
Length:170mm, Weight:0.32Kg
8 WX-206 solar cable cutter Solar cable cutter for Soft cable/Wood sticks/
Dowel rods/Animal Nail/Rope/
Cord and many other materials
cable: 24mm2(3/8”) flexible
Material: stainless steel blade and TPR handles
Length:165mm, Weight:0.12Kg
9 Solar connector spanner 2 PCS Open-end spanner and unlocking
tool ( and PLUS)
10 Straight Screwdriver R&X screwdriver 5x75mm(Dia.*Length)
Material of Head: S2 Steel
11 Cross screwdriver IWISS screwdriver 6x100mm(Dia.*Length)
Material of Head: S2 Steel
12 Bag Carrying Oxford Zipper Bag: 305×205×75(mm)

HOW TO USE THE SOLAR CONNECTOR CRIMPER TOOL TO COMPLETE SOLAR CABLE?

The female metal work is great bigger than the male metalwork, it should match the male connector, and vice versa.

Step A: Confirm which connector should the bare end put in. If the other end is a male connector, the bare end should put in the female connector, vice versa.
Step B: (Take PNTECH's solar cable as an example) Lead the red cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the female metalwork, put in the male connector.
Step C: (Take PNTECH's solar cable as an example) Lead the black cable through the base, strain relief and the compression sleeve, then crimp the red cable's bare end into the male metalwork, put in the female connector.

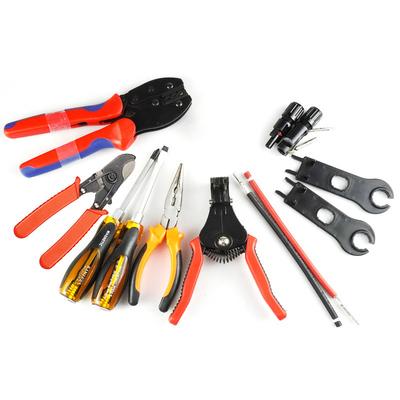

Picture of Wire Terminal Crimping Set

Solar PV System 2.5 4.0 6.0mm2 Hand Crimper Tool

FAQ:

1. When can I get the quotation?

Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the tool. price will be calculated soon.

2. How long about the delivery?

Usually within 3-4 working days after payment, mainly according to the quantity.

3. What's your payment terms?

We accept T/T (bank transfer), L/C

4. Do you accept the customized order?

Yes, we do.

5. Do you offer OEM & ODM?

Yes. OEM & ODM are available.
