TUV Approval Red Black DC 4MM2 PV Solar Power Cable Wire for Solar Panel

The 0.6/1KV solar cable is a tinned copper conductor, XLPO insulation, and LSZH sheath, which is designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. It has the characteristics of UV resistance, wears resistance, and aging resistance, and the service life is more than 25 years.

1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3)They operate at DC voltage and provide long life in exposed conditions.

1. TUV and CE certificate
2. Standard: 2 PFG 1169 08.2007
3. Type: PV1-F 1x4,0mm2
4. Conductor Material : Stranded tinned copper
5. Composition(NO./mm): 56/0.3
6 .Insulation Material: XLPE
7. Min. Thickness(mm): 0.5
8. Sheath Material :XLPE
9. Outer Diameter(mm) :6.10±0.2
10. Conductor dc resistance ≤5.09Ω/km
11. Rated voltage: AC 0.6~1.0KV , DC1.8KV
12. Ambient temperature: -40~+90C
13. The expected period of use: 25years
14. Flame rated IEC60332-1-2

Features:
1) Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV resistant, ozone and hydrolyses.
2) These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
3) They operate at DC voltage and provide long life in exposed conditions.

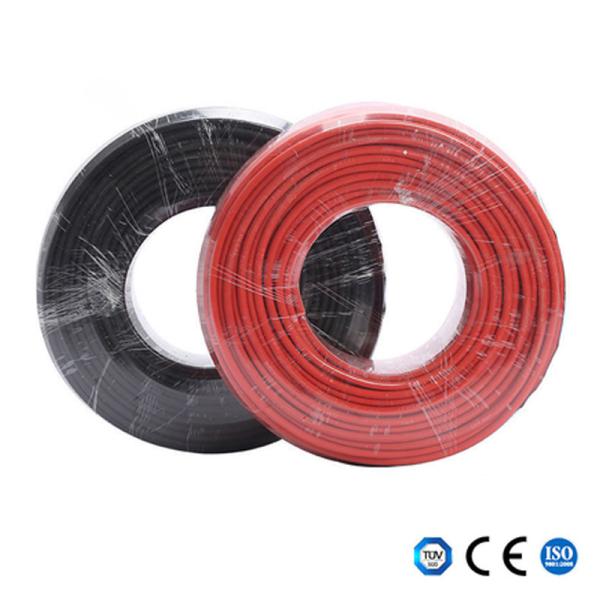

Picture of 4MM2 PV Solar Power Cable

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
