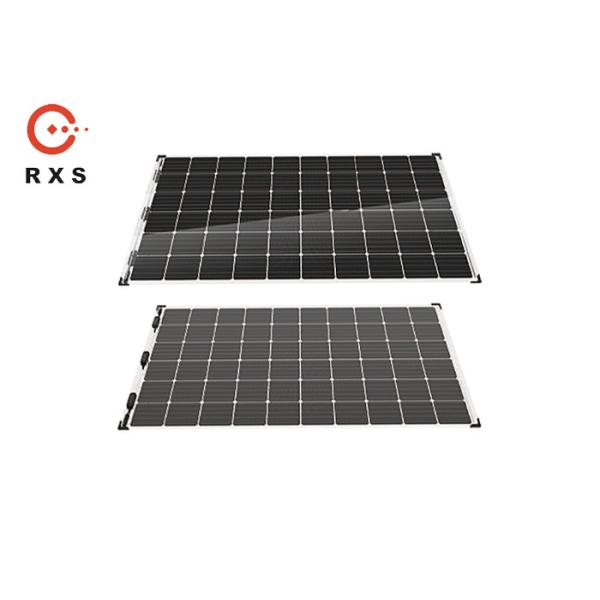

295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency
295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency
295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency
295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency
295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency
295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency
Specifications
Brand Name :
Rixin
Model Number :
DDM(P)295
Certification :
TUV, CE, ISO9001, ISO14001, OHSAS18000
Place of Origin :
Wuhan, China
MOQ :
840PCS/HQ
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3GW/YEAR
Delivery Time :
15 working days
Packaging Details :
33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
Front Power :
295W
Dimension :
1658*992*6mm
Front Efficiency :
17.9%
Life span :
30 years
Description

Perc monocrystalline bifacial dual glass solar panel / 295W / 60cells / 20V

monocrystalline solar panel :

High conversion efficiency
Low power tolerance of 0~+3%
Low degradation under light exposure
Can withstand high wind-pressure, snow load and extreme temperature
Passing IEC 61215 5400Pa mechanical load test

Electrical performance parameters(front side)

Electrical performance parameters(front side)
STC(Standard Testing Conditions) (irradiance 1000W/m2, cell temperature 25℃, spectra at AM1.5)
Model DDM(P)295
Maximum power (Pm/Wp) 295
Maximum power voltage (Vmp/V) 32.7
Maximum power current (Imp/A) 9.01
Open circuit voltage (Voc/V) 39.4
Short circuit current (Isc/A) 9.47
Module efficiency (%) 17.9

Electrical performance parameters(rear side)

Electrical performance parameters(rear side)
Model DDM(P)295
Maximum power (Pm/Wp) 222
Maximum power voltage (Vmp/V) 33.5
Maximum power current (Imp/A) 6.63
Open circuit voltage (Voc/V) 39.1
Short circuit current (Isc/A) 7.25
Module Efficiency (%) 13.5

General performance parameters

Mechanical performance parameters
Cell Nos & array 60(6*10)
Diode Nos 3
Junction box IP68, split
Cable 4mm2, 300mm, length custom
Module weight(kg) 23
Dimension (L*W*H) (mm) 1658*992*6 (junction box thickness 23mm)
Packing 33pcs/carton, 26cartons/40HQ, 858pcs/40HQ
Temperature coefficient (STC)
Temperature coefficient of Voc -0.290%/℃
Temperature coefficient of Isc +0.050%/℃
Temperature coefficient of Pm -0.390%/℃
Quality parameters
Working temperature range (℃) -40~+85
Power tolerance (W) 0~+5
Maximum system voltage (V) DC1500
System maximum protection current (A) 20
NOCT(℃) 45±2℃
Front/rear static loads(Pa) 5400/2400
Bifacial factor ≥75%
Hot spot 100% hot spot free

Main Features

1. High module conversion efficiency.

2. Better energy yield with excellent low irradiance performance and temperature coefficient.

3. First year power degradation <2%.

4. Bifacial technology enables additional energy harvesting from rear side.

5. Glass/glass ensures 30 year product life span, with annual power degradation <0.45%.

6. Frameless design, no PID.

Drawing(mm)

295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency

Quality Warranty

10-year materials&workmanship warranty

30-year linear power warranty

295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency295 Watt PERC PV Module Monocrystalline With High Module Conversion Efficiency
