High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan
High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan
High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan
High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan
High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan
High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan
Specifications
Brand Name :
Rixin
Model Number :
DBM305(P)
Certification :
TUV, CE, ISO9001, ISO14001, OHSAS18000
Place of Origin :
Wuhan, China
MOQ :
840PCS/HQ
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3GW/YEAR
Delivery Time :
15 working days
Packaging Details :
30pcs/pallet, 26pallets/40HQ,780pcs/40HQ
Power :
305W
Dimension :
1650*992*35mm
Efficiency :
18.5%
Life span :
25 years
Description

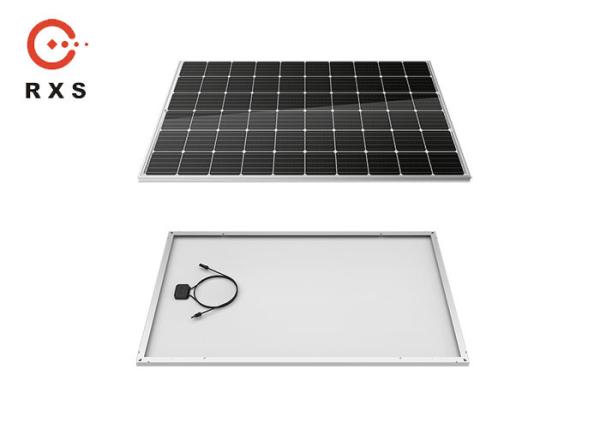

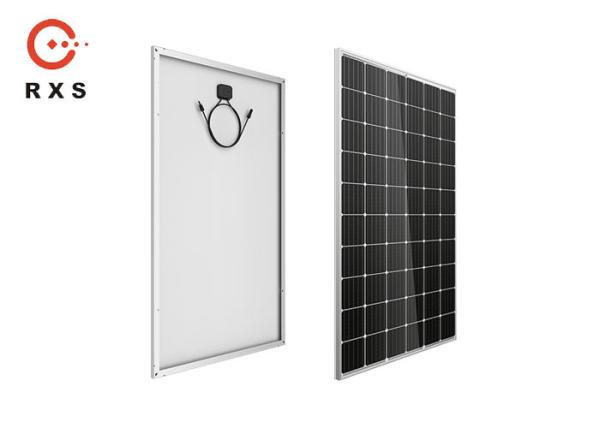

Perc monocrystalline framed solar panel / 305W / 60cells / 20V

Main Features
1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.

Applications


On-grid residential roof-tops
On-grid commercial/industrial roof-tops
Solar power plants
Off-grid system
Other on-grid applications


Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DBM305(P)
Maximum power (Pm/Wp) 305
Maximum power voltage (Vmp/V) 33.0
Maximum power current (Imp/A) 9.24
Open circuit voltage (Voc/V) 40.2
Short circuit current (Isc/A) 9.94
Module efficiency (%) 18.5
Normal operating cell temperature (NOCT) 45±2℃
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc 0.059%/℃
Temperature coefficient of Pm -0.39%/℃
Power tolerance (W) 0~+5

General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 1650*992*35mm
Cell dimension(mm) 156.75*156.75 PERC mono
Module weight (kg) 19
Cable cable section-4mm2 length-900mm
Cell Nos & array 60(6*10)
Packing 30pcs/pallet, 26pallets/40HQ,780pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free


Drawing(mm)
High Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
High Efficiency PERC PV Module 305W Easy Installation 25 Years LifespanHigh Efficiency PERC PV Module 305W Easy Installation 25 Years Lifespan
