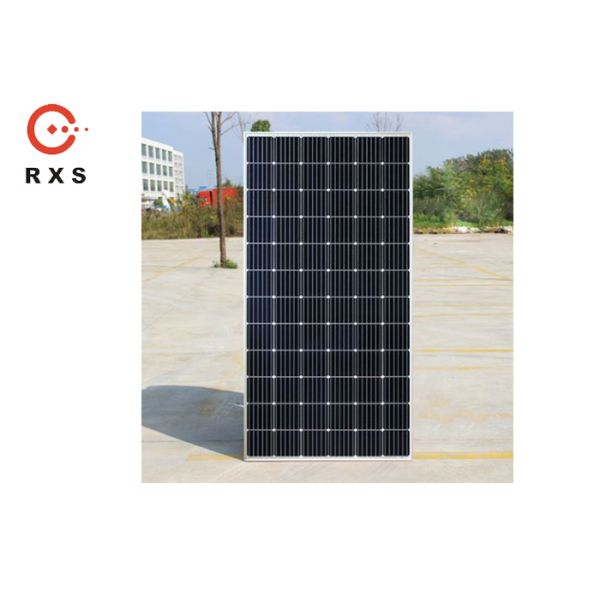

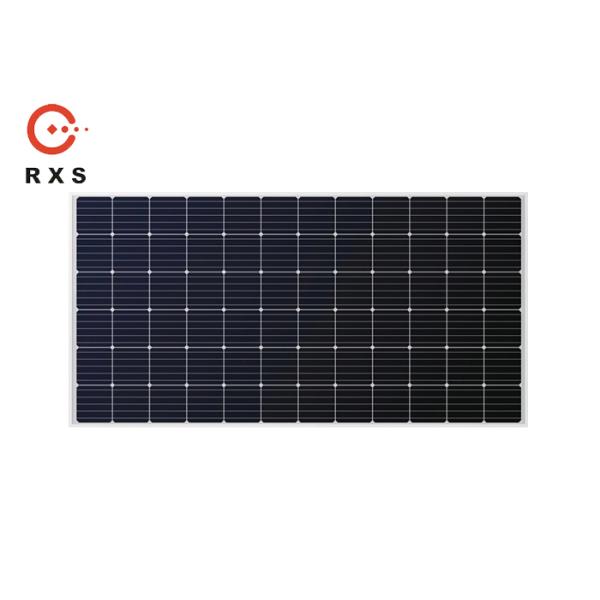

Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime
Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime
Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime
Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime
Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime
Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime
Specifications
Brand Name :
Rixin
Model Number :
DBG360(P)
Certification :
TUV, CE, ISO9001, ISO14001, OHSAS18000
Place of Origin :
Wuhan, China
MOQ :
840PCS/HQ
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3GW/YEAR
Delivery Time :
15 working days
Packaging Details :
25pcs/pallet, 22pallets/40HQ, 550pcs/40HQ
Power :
360W
Dimension :
1956*992*40mm
Efficiency :
18.40%
Life span :
25 years
Description

Perc monocrystalline framed solar panel / 360 W / 72cells / 24V

Main Features

Humanized design

* More protection with practical and effective design

* Prevent the aluminum frame from scratching the hand

* Using the rain to clean dirt remaining on the solar module


1. Positive power tolerance (0~+5W) guaranteed.
2. High module conversion efficiency.
3. Low LID.
4. Better energy yield with excellent low irradiance performance and temperature coefficient.
5. Adaptable to harsh environment: passed rigorous salt mist and ammonia tests.
6. Robust frame(40mm) withstands mechanical loading of 5400Pa for snow load on front and 2400Pa for wind load on rear side.

Electrical performance parameters

Electrical performance parameters
STC (AM1.5, 1000W/m², cell temperature 25℃)
Model DBG360(P)
Maximum power (Pm/Wp) 360
Maximum power voltage (Vmp/V) 39.2
Maximum power current (Imp/A) 9.18
Open circuit voltage (Voc/V) 47.9
Short circuit current (Isc/A) 9.70
Module efficiency (%) 18.4
Normal operating cell temperature (NOCT) 45±2℃
Temperature coefficient of Voc -0.30%/℃
Temperature coefficient of Isc 0.059%/℃
Temperature coefficient of Pm -0.39%/℃
Power tolerance (W) 0~+5

General performance parameters

Mechanical performance parameters
Module dimension (L*W*H) (mm) 1956*992*40/45
Cell dimension(mm) 156.75*156.75 PERC mono
Module weight (kg) 23
Cable cable section-4mm2 length-900mm
Cell Nos & array 72(6*12)
Packing 25pcs/pallet, 22pallets/40HQ, 550pcs/40HQ
Quality parameters
Module working temperature range (℃) -40~+85
Maximum system voltage (V Dc) 1000
System maximum protection current (A) 15
Maximum wind loads/maximum snow loads (Pa) 2400/5400
Hot-spot resistance 100% hot-spot free


Drawing(mm)
Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime

Quality Warranty
10-year materials&workmanship warranty
25-year linear power warranty
Energy Saving 24V PERC PV Module Monocrystalline 360 Watt Long LifetimeEnergy Saving 24V PERC PV Module Monocrystalline 360 Watt Long Lifetime
